Description

Price

1

PUMP ASSY, ENG OIL

16400-38A01

$224.88

2

BOLT, OIL PUMP

01547-0625A

$2.01

3

SPROCKET, OIL PUMP DRIVEN

16331-38A10

Unavailable

4

WASHER, OIL PUMP DRIVEN

09181-12158

$2.26

5

PIN, OIL PUMP DRIVEN SP

09261-05006

$1.49

6

CIRCLIP, OIL PUMP DRIVEN

08331-3112A

$1.78

7

CHAIN ASSY, OIL PUMP DR

16310-38A00

$33.93

8

VALVE ASSY,OIL RELIEF

16440-17C20

$63.47

9

GASKET, OIL RELIEF VALVE

09168-16002

$1.91

10

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

11

CAP, OIL STRAINER

16523-38A00

$31.70

12

O RING, OIL STRAINER CAP

16528-38A00

$11.77

13

BOLT, OIL STRAINER CAP

01547-0620A

$2.03

14

STRAINER, ENG OIL | MODEL K5/K6/K7/K8

16520-38A00

$8.12

14

STRAINER, ENG OIL | MODEL K9

16520-38A10

$8.60

15

SCREW, OIL STRAINER

02112-7512A

$2.42

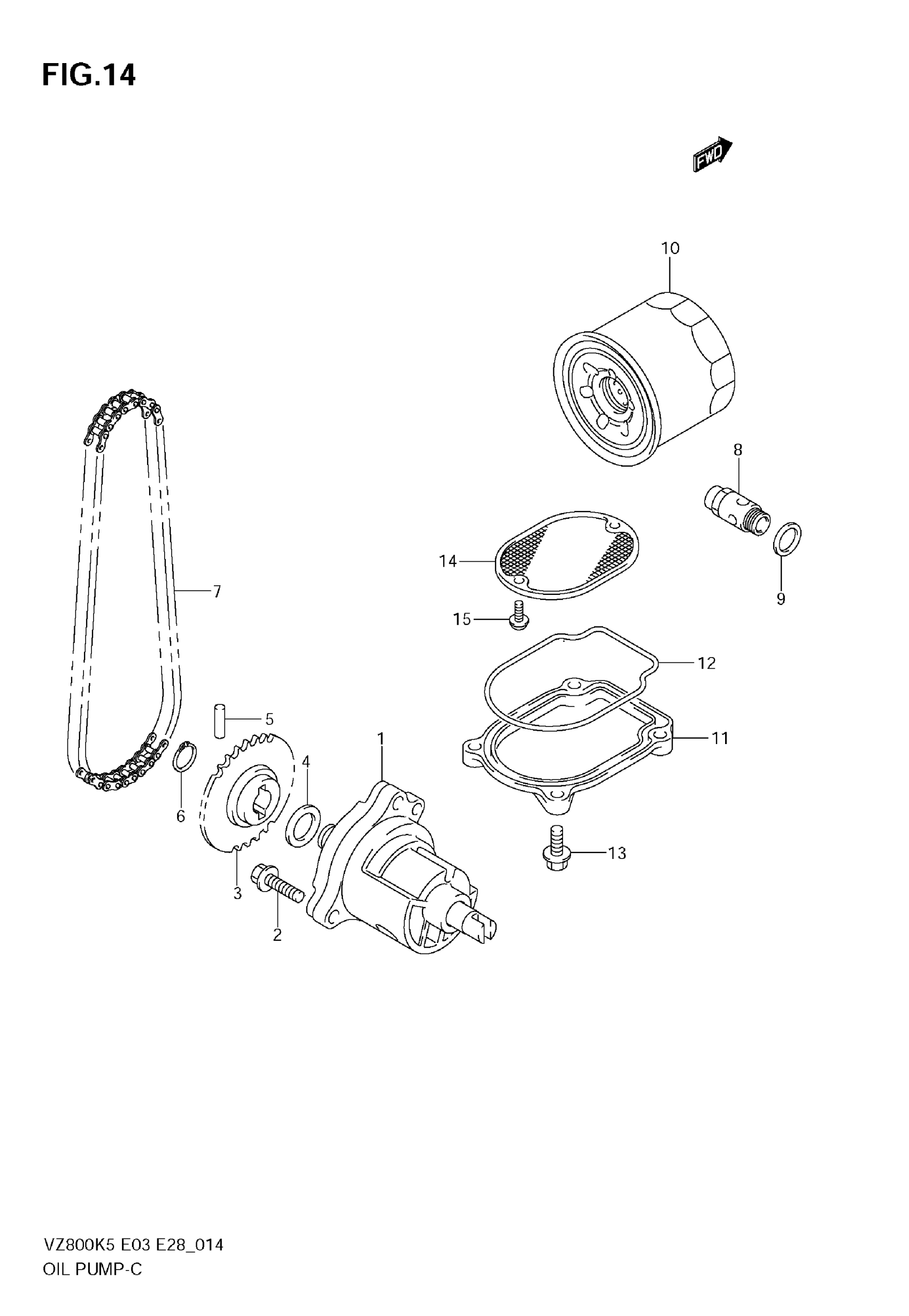

Suzuki VZ800 (2009) OIL PUMP Diagram
