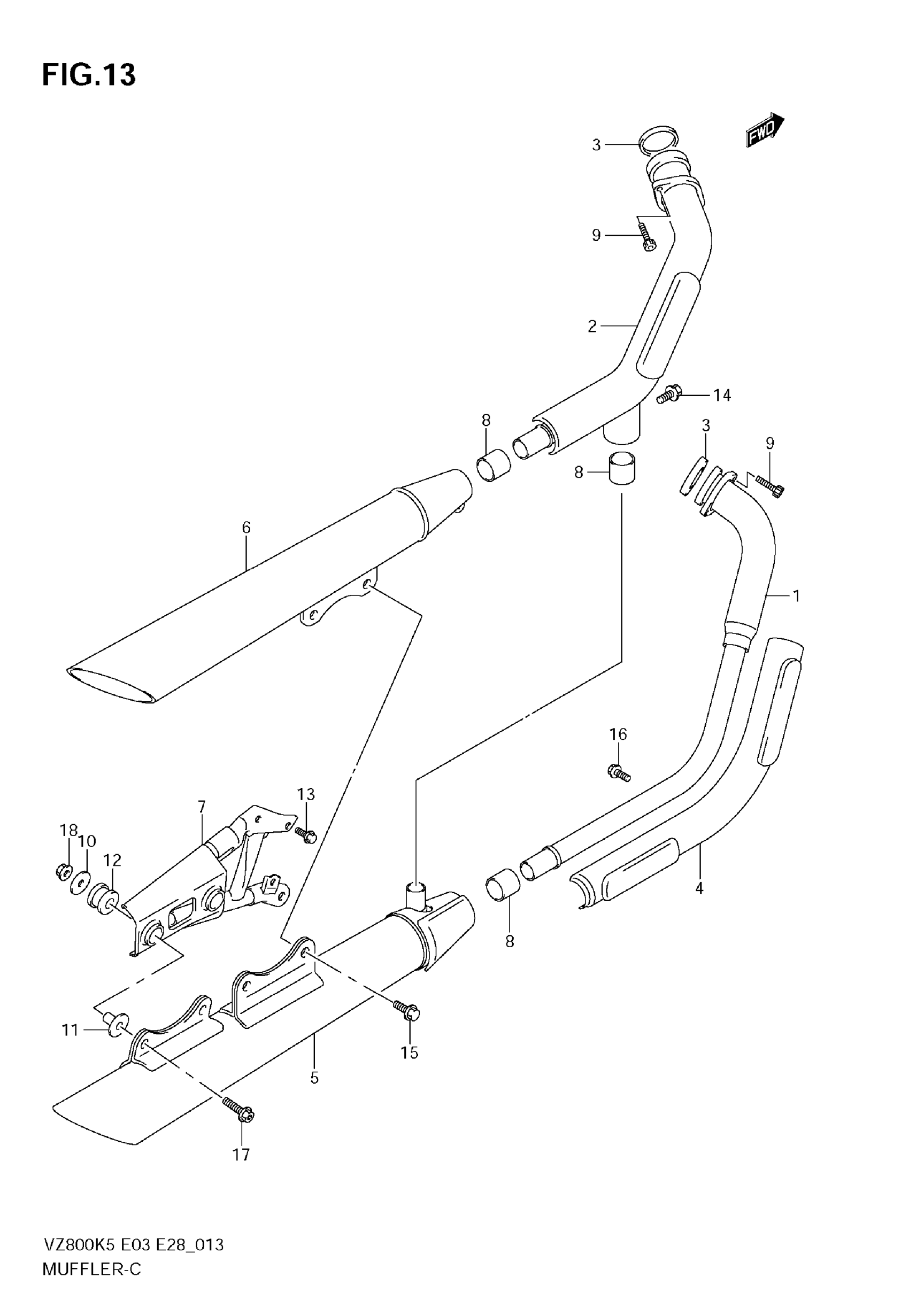

Suzuki VZ800 (2009) MUFFLER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

PIPE, EXHAUST FR

14150-41F02

Unavailable

2

PIPE, EXHAUST RR

14160-41F02

Unavailable

3

GASKET, EXHAUST

14181-10F00

$12.91

4

COVER, EXHAUST FRONT

14180-41F02

Unavailable

5

MUFFLER, FRONT | MODEL K5 E3,E28

14310-41F12-H01

Unavailable

5

MUFFLER, FRONT | MODEL K5 E33 MODEL K6/K7/K8

14310-41F60-H01

Unavailable

6

MUFFLER, REAR | MODEL K5 E3,E28

14340-41F12-H01

Unavailable

6

MUFFLER, REAR | MODEL K5 E33 MODEL K6/K7/K8

14340-41F60-H01

$894.93

7

BRACKET, MUFFLER SUPPORT

14410-41F01

$153.62

8

CONNECTOR, MUFFLER

14771-29E00

$23.63

9

BOLT, EXHAUST PIPE

09106-08165

$4.03

10

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

11

SPACER

09180-08156

$6.70

12

CUSHION

09320-12049

$10.68

13

BOLT, MUFFLER SUPPORT BRACKET

01550-0816B

$2.73

14

BOLT, MUFFLER CONNECTOR

01550-0835B

$3.95

15

BOLT, MUFFLER SUPPORT

01550-0845B

$3.42

16

BOLT, EXHAUST COVER

07120-0616B

$2.45

17

BOLT, MUFFLER JOINT

09106-08174

$3.37

18

NUT

08361-2508A

$1.97
