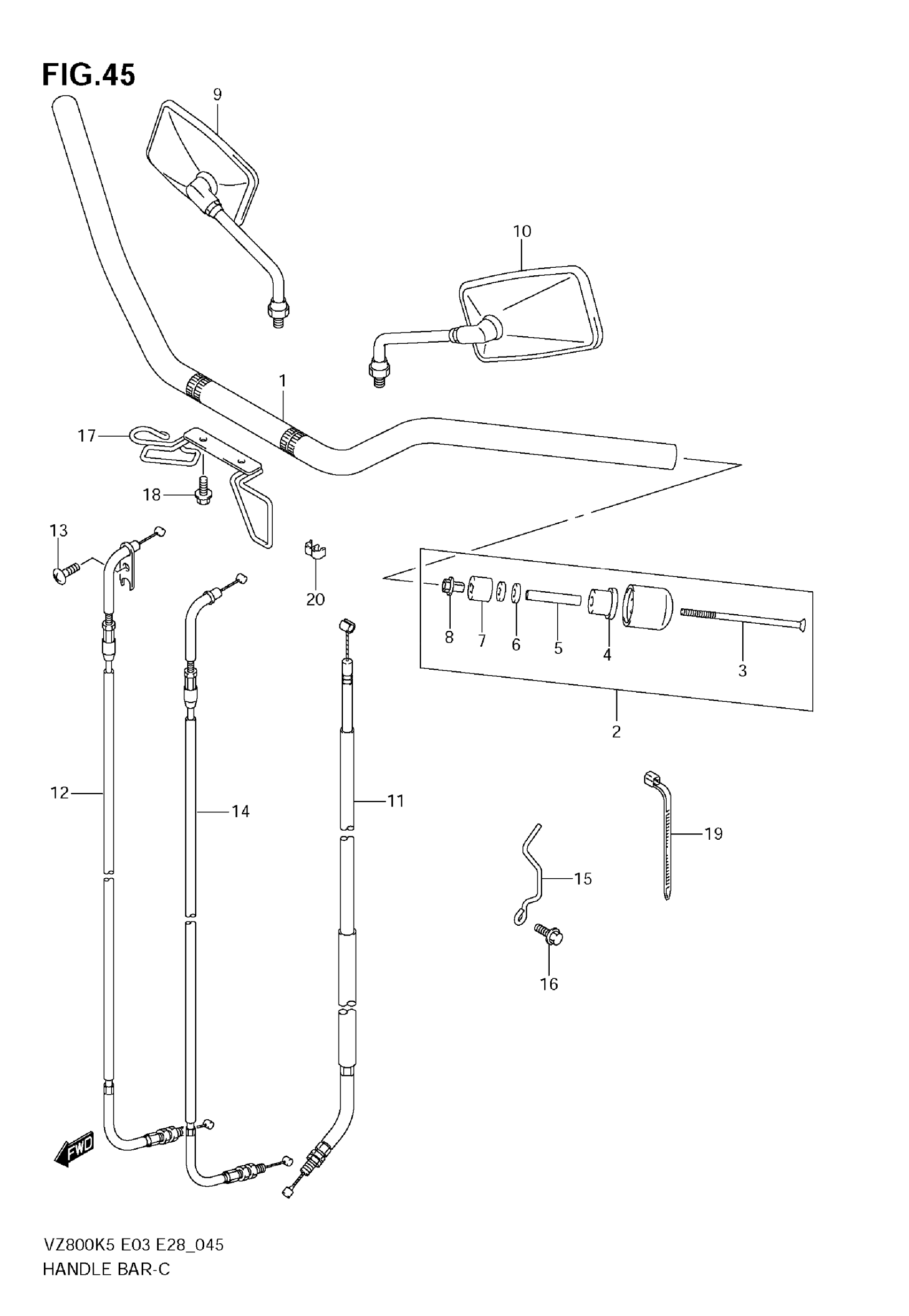

Suzuki VZ800 (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL K5/K6

56111-39G00

$303.68

1

HANDLEBAR | MODEL K7/K8/K9

56111-39G10

$315.23

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 8 This part replaces 56200-10891.

56200-10892

$57.38

3

SCREW

09127-06017

$2.78

4

EXPANDER, OUTER

56272-26D01

$7.25

5

SPACER

56276-17D00

$5.07

6

WASHER

09160-06131

$2.50

7

EXPANDER, INNER

56272-10G10

$4.73

8

NUT

56273-10G10

$8.65

9

MIRROR ASSY, REAR VIEW RH | MODEL K5/K6 This part replaces 56500-45C50.

56500-45C51

$232.75

9

MIRROR ASSY, REAR VIEW RH | MODEL K7/K8/K9

56500-45C51

$232.75

10

MIRROR ASSY, REAR VIEW LH | MODEL K5/K6 This part replaces 56600-45C50.

56600-45C51

$232.75

10

MIRROR ASSY, REAR VIEW LH | MODEL K7/K8/K9

56600-45C51

$232.75

11

CABLE ASSY, CLUTCH | MODEL K5/K6

58200-39G00

$70.12

11

CABLE ASSY, CLUTCH | MODEL K7/K8/K9

58200-39G10

$84.08

12

CABLE ASSY, THROTTLE | MODEL K5/K6

58300-39G00

$69.24

12

CABLE ASSY, THROTTLE | MODEL K7/K8

58300-39G20

Unavailable

12

CABLE ASSY, THROTTLE | MODEL K9

58300-39G40

$60.37

13

SCREW, CASE

02142-05087

$1.49

14

CABLE ASSY, THROTTLE NO.2 | MODEL K5/K6

58300-39G10

Unavailable

14

CABLE ASSY, THROTTLE NO.2 | MODEL K7/K8

58300-39G30

$60.37

14

CABLE ASSY, THROTTLE NO.2 | MODEL K9

58300-39G50

$38.10

15

GUIDE, THROTTLE CABLE | MODEL K5/K6

58626-39G00

Unavailable

15

GUIDE, THROTTLE CABLE | MODEL K7/K8/K9

58626-39G10

Unavailable

16

BOLT

01550-0616B

$2.48

17

GUIDE, CABLE

58620-39G00

Unavailable

18

BOLT

01550-0616B

$2.48

19

CLAMP (L:190)

09407-19401

$3.05

19

CLAMP (L:235)

09407-25401

$4.66

19

CLAMP (L:300)

09407-30401

$5.72

20

CLIP | MODEL K5/K6

09408-00033

$2.83

20

CLIP | MODEL K7/K8/K9

09408-00244

$2.83
