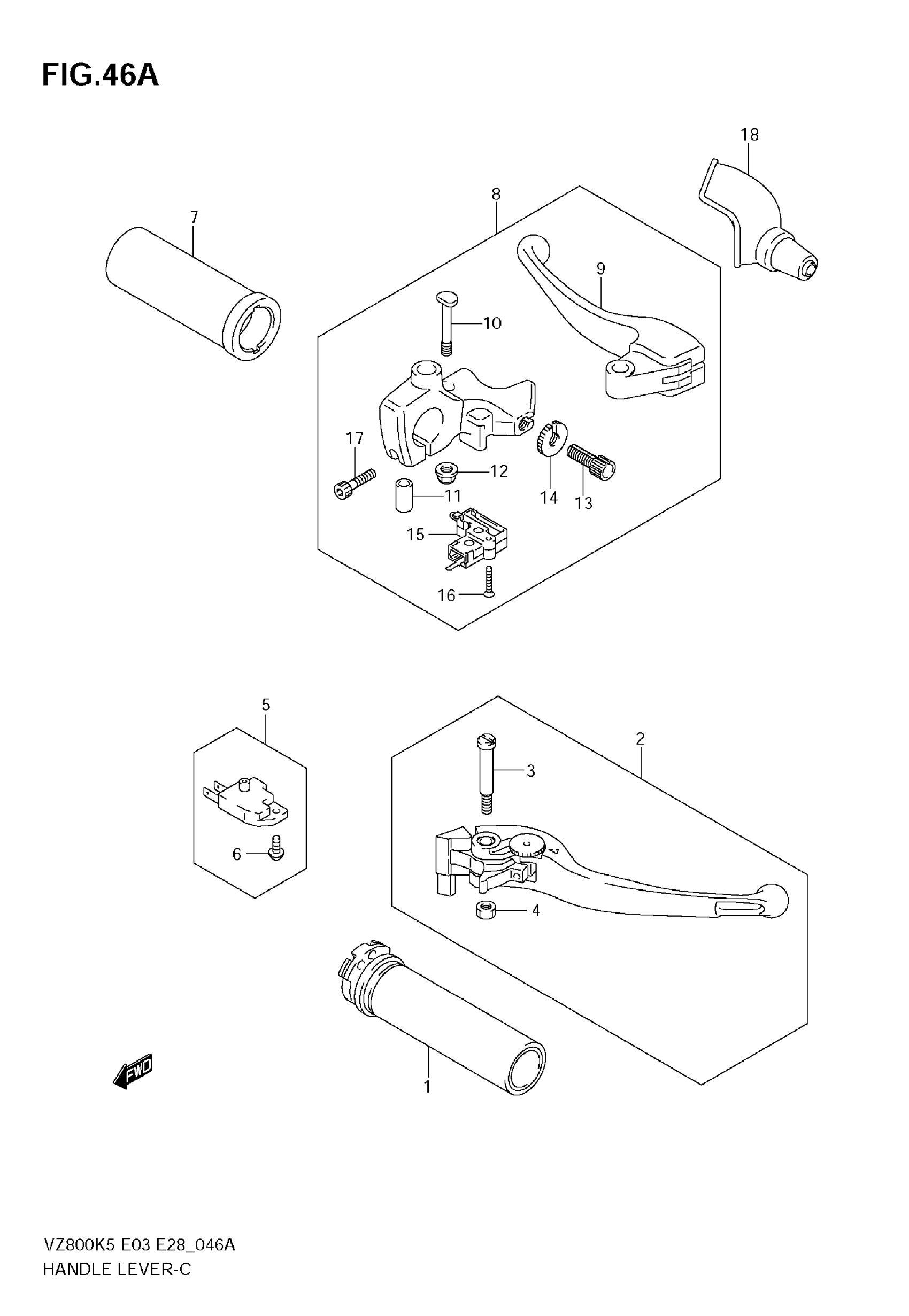

Suzuki VZ800 (2009) HANDLE LEVER (MODEL K7/K8/K9) Diagram

#

Description
Price

1

GRIP COMP,THROT | MODEL K7/K8 This part replaces 57110-26D00.

57110-26D01

$56.06

1

GRIP,THROTTLE | MODEL K9 This part replaces 57110-26D10.

57110-26D11

$42.05

2

LEVER ASSY, BRAKE | MODEL K7/K8

57300-48G00

$80.25

2

LEVER ASSY, BRAKE | MODEL K9; Includes Item(s) 3 - 4

57300-48G10

$51.45

3

BOLT, PIVOT

57431-48G00

$9.23

4

NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$30.23

8

LEVER ASSY,CLUT | MODEL K7/K8 This part replaces 57500-48G00.

57500-48G03

$85.92

8

LEVER ASSY,CLUTCH | MODEL K9; Includes Item(s) 9 - 17 This part replaces 57500-48G10.

57500-48G14

$100.93

9

LEVER, CLUTCH | MODEL K7/K8

57621-48G00

$40.24

9

.LEVER, CLUTCH | MODEL K9 This part replaces 57621-48G10.

57621-48G11

$36.16

10

BOLT, PIVOT

57531-48G00

$37.52

11

SPACER

57623-48G00

$29.98

12

NUT

08319-3106B

$2.45

13

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

14

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

15

.SWITCH,CLUTCH | MODEL K7/K8

57560-05A00

$12.15

15

.SWITCH ASSY,CLUTCH | MODEL K9

57560-05A10

$30.85

16

SCREW

02112-0320B

$3.60

17

BOLT, CLAMP

07130-0620A

$2.50

18

COVER,CLUTCH LE | MODEL K7/K8 This part replaces 57541-48G00.

57541-48G01

$12.82

18

COVER,CLUTCH LEVER | MODEL K9 This part replaces 57541-48G10.

57541-48G11

$10.71
