Description

Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$56.06

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-41F10

$65.35

3

BOLT, PIVOT

57431-48E00

$8.93

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$30.23

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 17 This part replaces 57500-24B01.

57500-24B02

$45.95

9

LEVER, CLUTCH

57620-24B01

$23.27

10

BOLT, CLUTCH LEVER

57531-24B00

$8.83

11

SPACER, CLUTCH LEVER

57623-24B00

$4.52

12

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

13

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

14

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

15

.SWITCH,CLUTCH

57560-05A00

$12.15

16

SCREW This part replaces 02112-03205.

02112-0320B

$3.60

17

BOLT

07130-06207

$3.04

18

COVER,CLUTCH LE This part replaces 57541-39G00.

57541-39G01

Unavailable

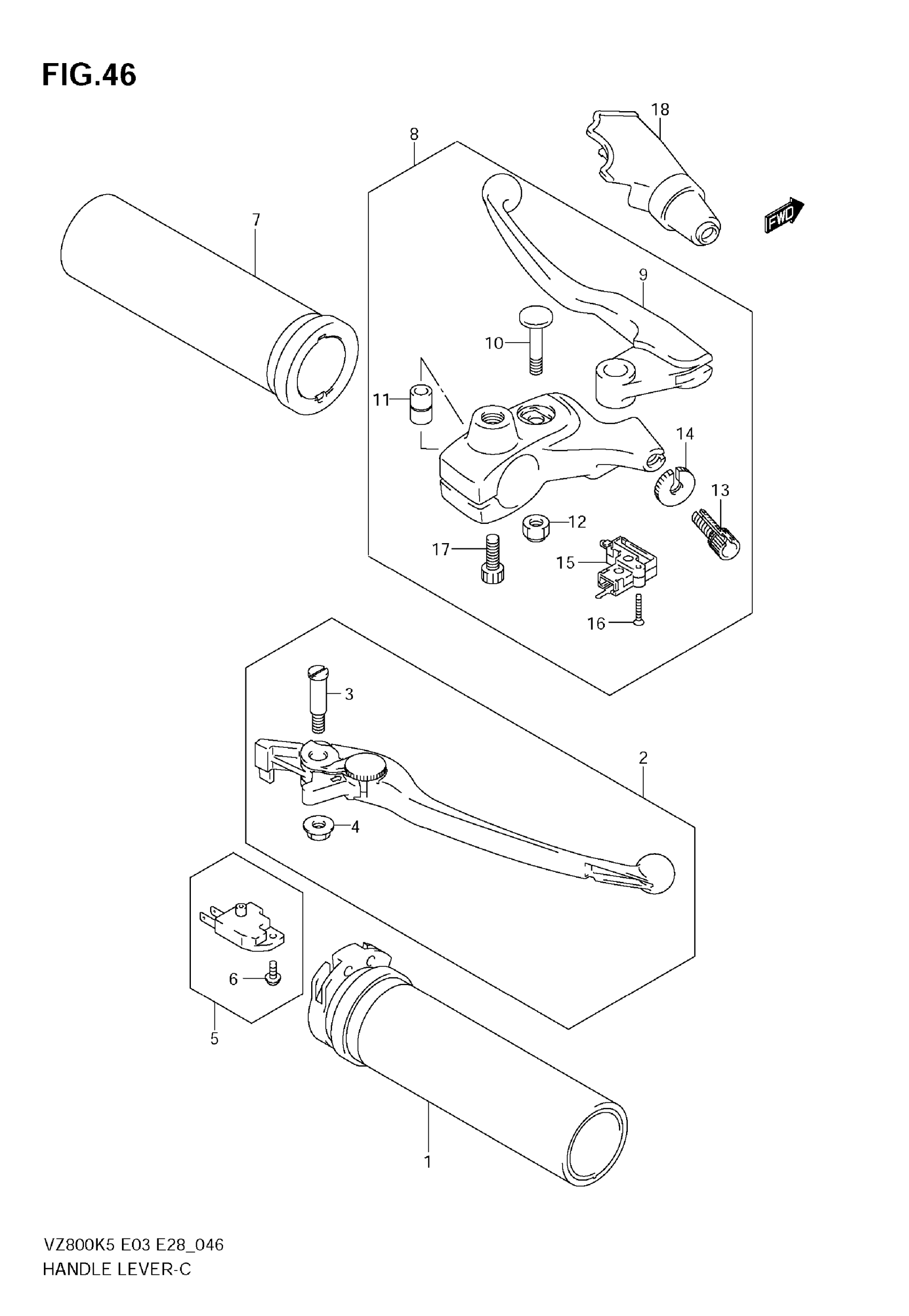

Suzuki VZ800 (2009) HANDLE LEVER (MODEL K5/K6) Diagram
