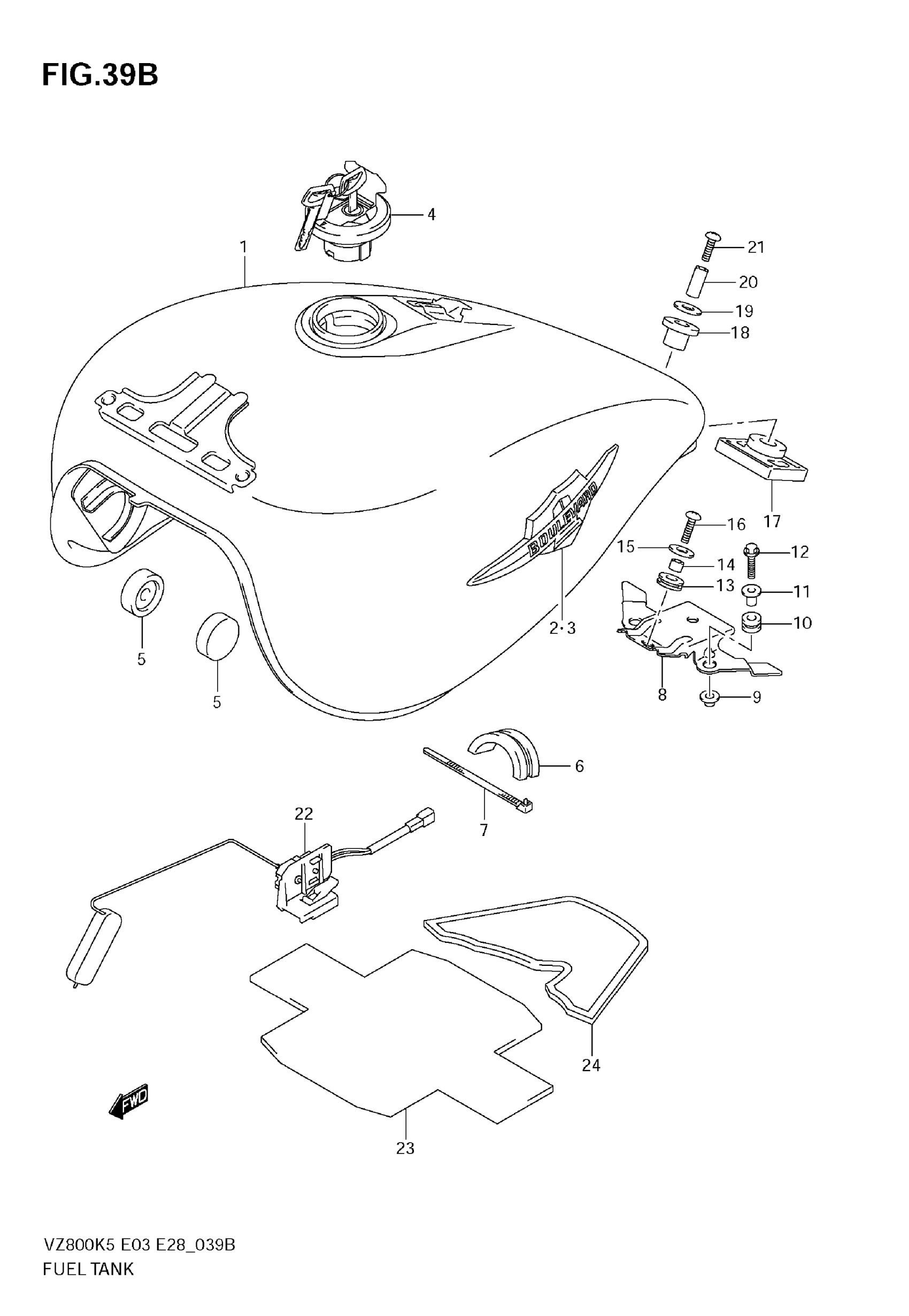

Suzuki VZ800 (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY,FUEL | E3,E28 This part replaces 44100-39G60-YAY.

44100-39GK0-YAY

$1,354.50

1

TANK ASSY, FUEL (BLACK) | E33

44100-39G80-YAY

Unavailable

1

TANK ASSY, FUEL (ORANGE) | VZ800Z E3,E28

44100-39GG0-EAJ

Unavailable

1

TANK ASSY, FUEL (WHITE) | VZ800Z E3,E28

44100-39GG0-GHK

Unavailable

1

TANK ASSY, FUEL (ORANGE) | VZ800Z E33

44100-39GJ0-EAJ

Unavailable

1

TANK ASSY, FUEL (WHITE) | VZ800Z E33

44100-39GJ0-GHK

Unavailable

2

EMBLEM, RH

68111-39G01

$69.02

3

EMBLEM, LH

68121-39G01

$67.73

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-39830.

44200-39832

$110.37

4

CAP SET,FUEL TA | E33 This part replaces 44200-39840.

44200-39841

$180.32

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

7

CLAMP

09407-25402

$4.64

8

BRACKET, REAR

44530-39G10

Unavailable

9

WASHER, LOWER

09169-06076

$3.05

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

11

WASHER, UPPER

09169-06070

$4.77

12

BOLT

02162-0625B

$2.10

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

14

SPACER

09180-08188

$2.56

15

WASHER

09160-08151

$1.99

16

BOLT, FRONT

09106-08167

$3.35

17

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

18

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

19

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

20

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

21

BOLT (8X35)

01550-0835A

$3.04

22

GUAGE ASSY,FUEL This part replaces 34810-39G00.

34810-39G01

$112.19

23

SHIELD, TANK HEAT

44192-39G00

$148.62

24

SHIELD, TANK HEAT NO.2

44193-39G00

$102.17
