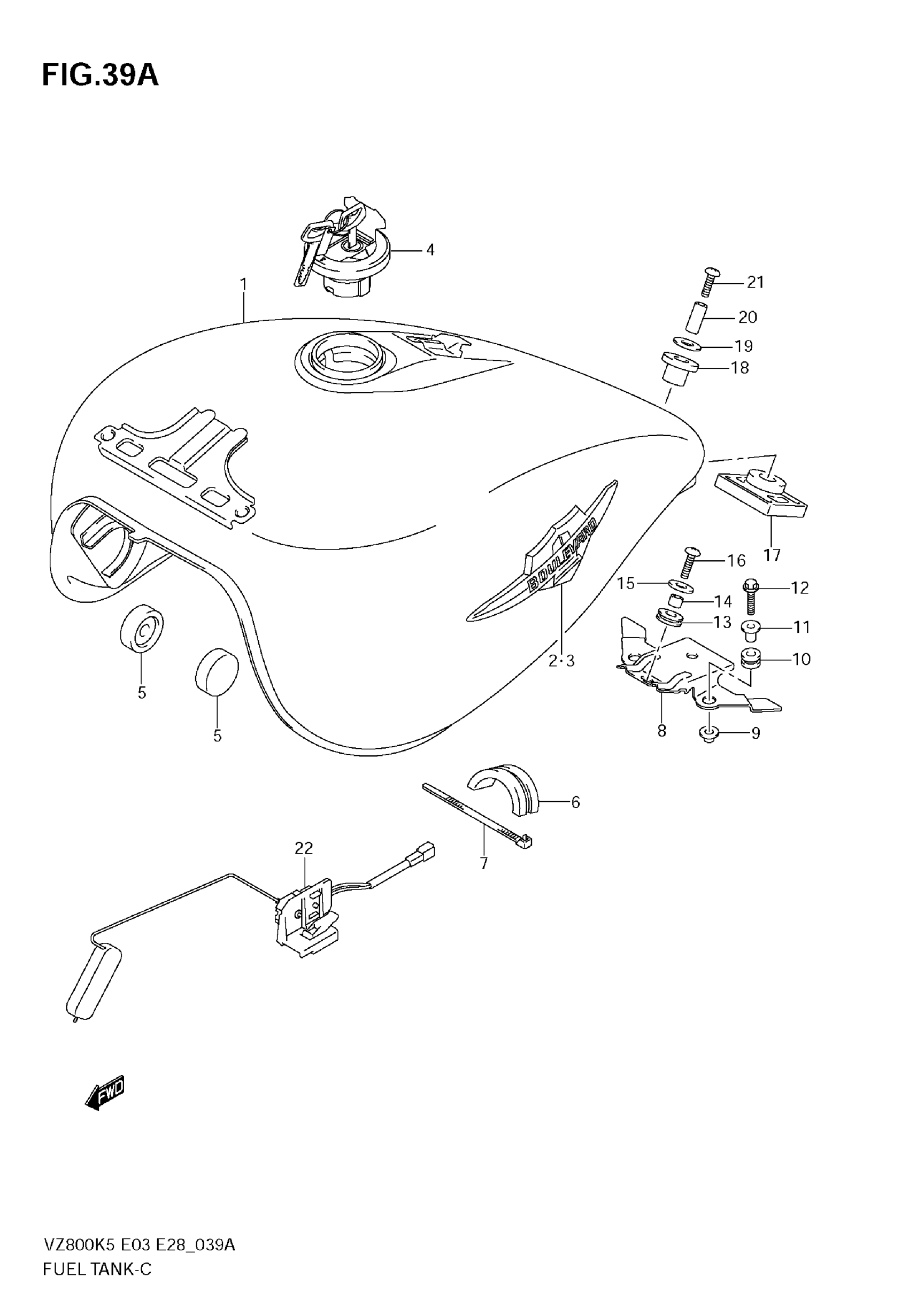

Suzuki VZ800 (2009) FUEL TANK (MODEL K7/K8) Diagram

#

Description
Price

1

TANK ASSY,FUEL | E3,E28 This part replaces 44100-39G30-YAY.

44100-39GK0-YAY

$1,354.50

1

TANK ASSY,FUEL( | VZ800K7 E3,E28 This part replaces 44100-39G30-YLD.

44100-39G60-YLD

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 This part replaces 44100-39G50-YAY.

44100-39G80-YAY

Unavailable

1

TANK ASSY, FUEL (BLUE) | VZ800K7 E33

44100-39G50-YLD

Unavailable

1

TANK ASSY, FUEL (GRAY) | VZ800ZK7 E3,E28

44100-39GA0-YHG

Unavailable

1

TANK ASSY, FUEL (GRAY) | VZ800ZK7 E33

44100-39GC0-YHG

Unavailable

1

TANK ASSY,FUEL | VZ800ZK8 E3,E28 This part replaces 44100-39GD0-EGP.

44100-39GG0-EGP

Unavailable

1

TANK ASSY,FUEL | VZ800ZK8 E3,E28 This part replaces 44100-39GD0-EGR.

44100-39GG0-EGR

Unavailable

1

TANK ASSY, FUEL (YELLOW) | VZ800ZK8 E33

44100-39GF0-EGP

Unavailable

1

TANK ASSY, FUEL (GRAY) | VZ800ZK8 E33

44100-39GF0-EGR

Unavailable

2

EMBLEM, RH This part replaces 68111-39G00.

68111-39G01

$69.02

3

EMBLEM, LH This part replaces 68121-39G00.

68121-39G01

$67.73

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-39830.

44200-39832

$110.37

4

CAP SET,FUEL TA | E33 This part replaces 44200-39840.

44200-39841

$180.32

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

7

CLAMP

09407-25402

$4.64

8

BRACKET, REAR This part replaces 44530-39G00.

44530-39G20

Unavailable

9

WASHER, LOWER

09169-06076

$3.05

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

11

WASHER, UPPER

09169-06070

$4.77

12

BOLT

02162-0625B

$2.10

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

14

SPACER

09180-08188

$2.56

15

WASHER

09160-08151

$1.99

16

BOLT, FRONT

09106-08167

$3.35

17

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

18

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

19

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

20

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

21

BOLT, REAR

01550-0835B

$3.95

22

GUAGE ASSY,FUEL This part replaces 34810-39G00.

34810-39G01

$112.19
