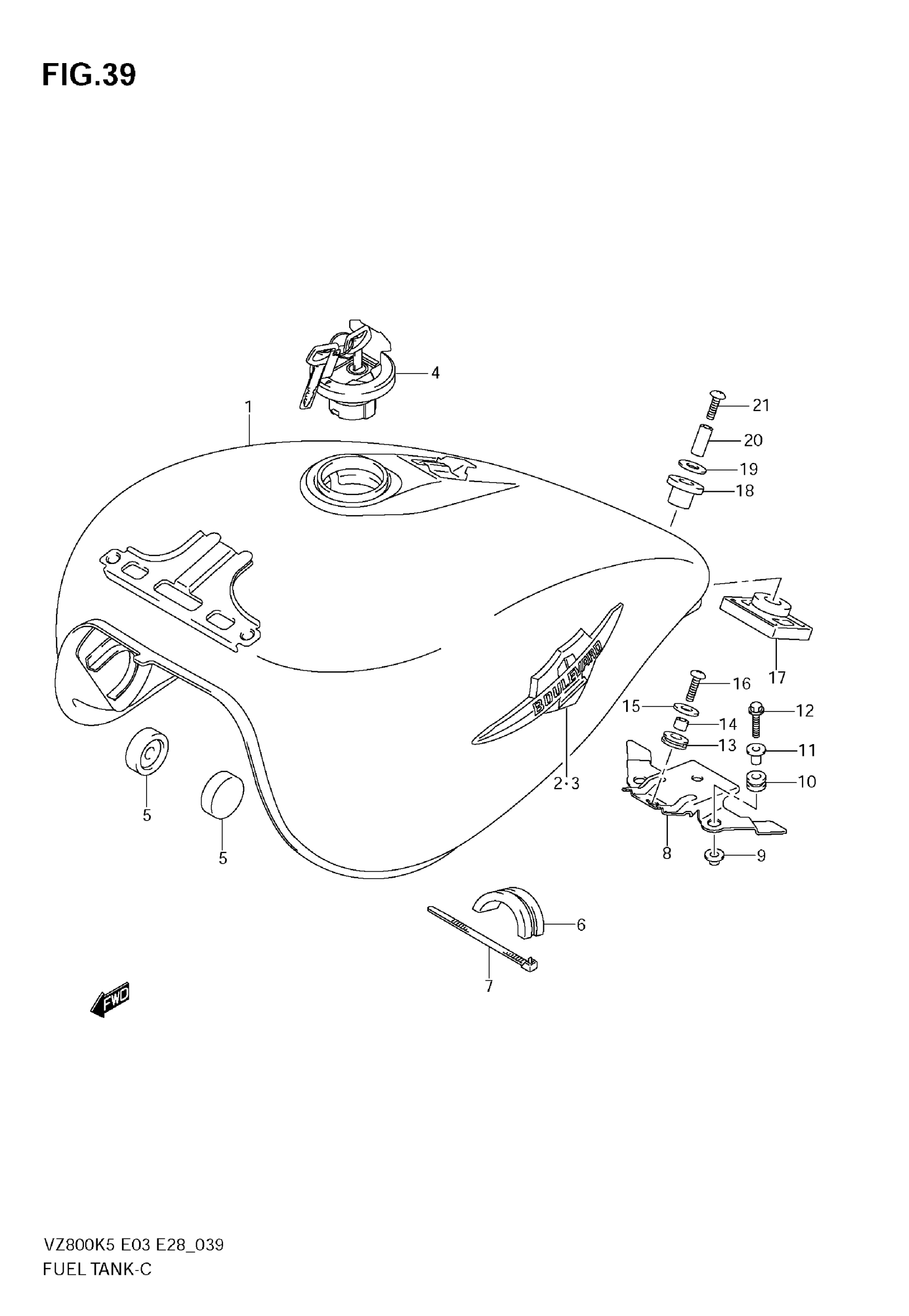

Suzuki VZ800 (2009) FUEL TANK (MODEL K5/K6) Diagram

#

Description
Price

1

TANK ASSY,FUEL | E3,E28 This part replaces 44100-39G00-YAY.

44100-39GK0-YAY

$1,478.83

1

TANK ASSY, FUEL (RED) | MODEL K5 E3,E28

44100-39G00-YU7

Unavailable

1

TANK ASSY,FUEL( | MODEL K5 E3,E28 This part replaces 44100-39G00-YBA.

44100-39G60-YBA

Unavailable

1

TANK ASSY,FUEL | MODEL K6 E3,E28 This part replaces 44100-39G00-YC2.

44100-39G60-YC2

Unavailable

1

TANK ASSY,FUEL | MODEL K6 E3,E28 This part replaces 44100-39G00-YHG.

44100-39G30-YHG

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 This part replaces 44100-39G20-YAY.

44100-39G80-YAY

Unavailable

1

TANK ASSY, FUEL (RED) | MODEL K5 E33

44100-39G20-YU7

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K5 E33

44100-39G20-YBA

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K6 E33 This part replaces 44100-39G20-YC2.

44100-39G50-YC2

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K6 E33

44100-39G20-YHG

Unavailable

2

EMBLEM, RH This part replaces 68111-39G00.

68111-39G01

$77.90

3

EMBLEM, LH This part replaces 68121-39G00.

68121-39G01

$76.43

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-39830.

44200-39832

$122.83

4

CAP SET,FUEL TA | E33 This part replaces 44200-39840.

44200-39841

$200.67

5

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

6

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

7

CLAMP

09407-25402

$4.19

8

BRACKET, REAR This part replaces 44530-39G00.

44530-39G20

Unavailable

9

WASHER, LOWER

09169-06076

$2.88

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

11

WASHER, UPPER

09169-06070

$5.17

12

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

14

SPACER

09180-08188

$2.68

15

WASHER This part replaces 09160-08133.

09160-08151

$2.00

16

BOLT, FRONT

09106-08167

$3.15

17

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.02

18

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$4.97

19

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.07

20

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.58

21

BOLT This part replaces 01550-08253.

01550-0825A

$2.31
