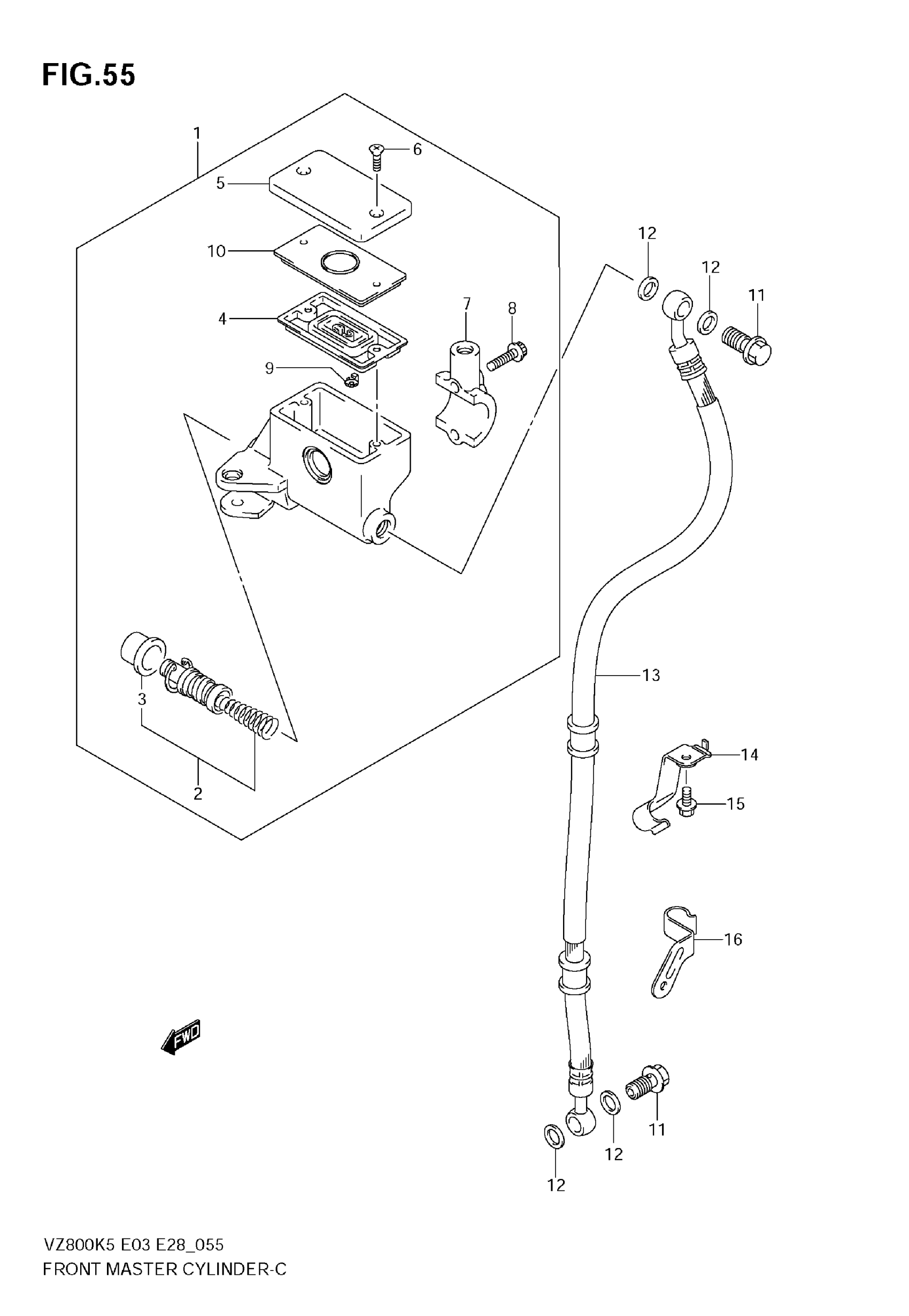

Suzuki VZ800 (2009) FRONT MASTER CYLINDER (MODEL K5/K6) Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-10F50

Unavailable

PISTON/CUP SET

59600-04810

$41.38

BOOT

59666-44300

$5.30

DIAPHRAGM

59667-49460

$8.95

CAP

59669-10F00

$80.65

SCREW

02122-04127

$1.97

HOLDER

59671-38AA0

$41.60

BOLT

07130-06207

$2.80

PROTECTOR

59664-48B00

$12.43

PLATE

59668-41C00

$8.54

BOLT, LOWER (10X1.25X22)

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE, FRONT BRAKE

59480-39G01

Unavailable

CLAMP, BRAKE HOSE UPPER

59266-41F00

Unavailable

BOLT

01547-0612B

$1.22

CLAMP, FR BRAKE HOSE

59268-39G00

Unavailable
