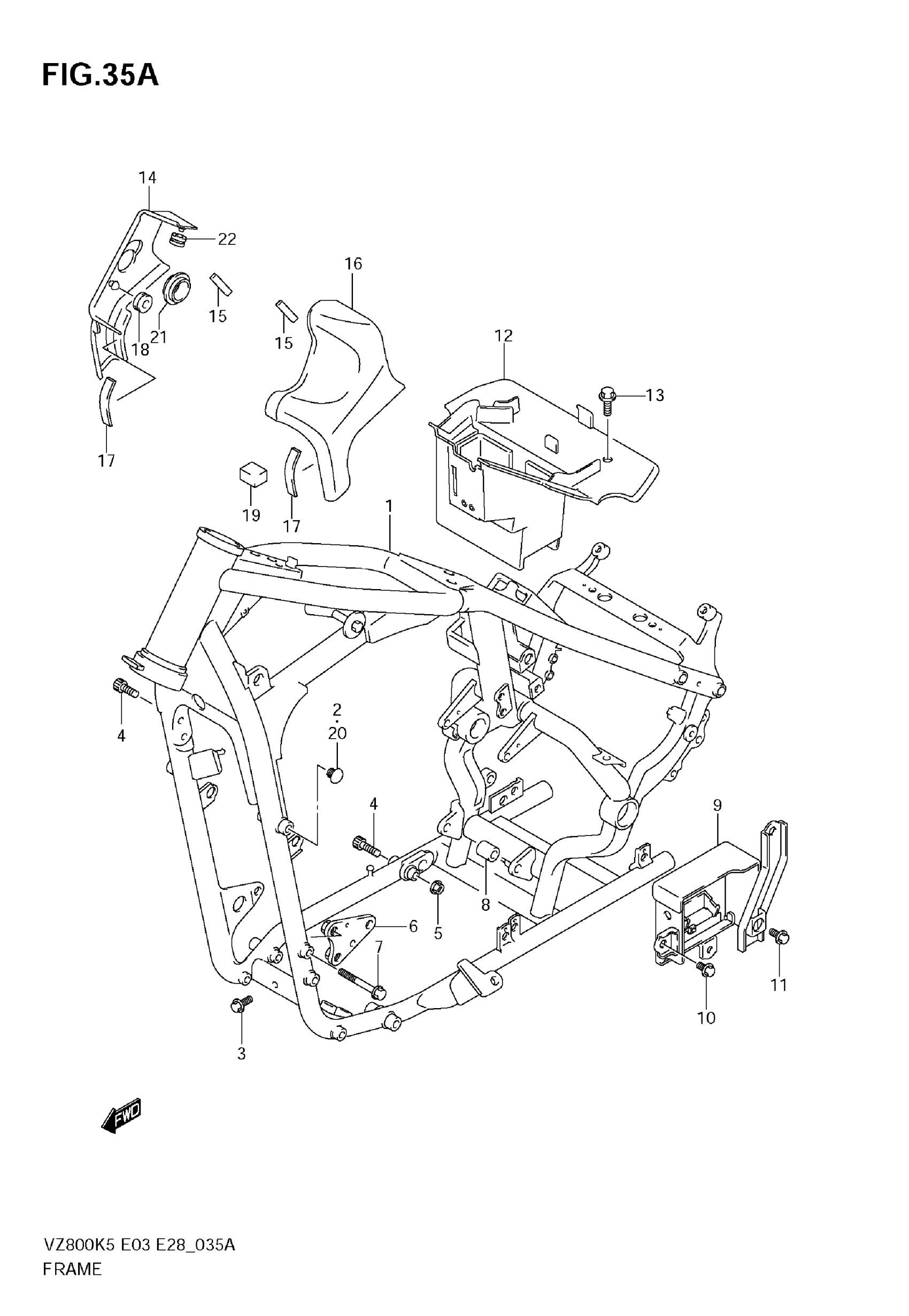

Suzuki VZ800 (2009) FRAME (MODEL K9) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-41F50-019

Unavailable

2

CAP This part replaces 09250-09001.

09250-09008

$1.54

3

BOLT, LOWER BRIDGE FRONT

01550-0816B

$2.73

4

BOLT

07130-1035B

$5.18

5

NUT

08319-3110B

$3.87

6

PLATE, ENGINE MOUNT LH

41920-41F00

Unavailable

7

BOLT

09112-08013

Unavailable

8

SPACER, LOWER

41941-41F00

Unavailable

9

HOLDER, ELECTRIC PARTS

41540-41F30

Unavailable

10

BOLT, FRONT

01547-0612A

$2.03

11

BOLT (8X16)

01550-0816A

$2.32

12

HOLDER, ELECTRIC PARTS

47410-41F01

Unavailable

13

BOLT

09113-06001

$2.73

14

COVER,FRAME HEAD,R (BLACK) | Includes Item(s) 15 This part replaces 47350-41F10-019.

47350-41F30-019

$74.35

15

CUSHION

53145-40A00

$2.30

16

COVER,FRAME HEAD,L (BLACK) | Includes Item(s) 17 This part replaces 47360-41F10-019.

47360-41F40-019

$70.98

17

CUSHION

53145-40A00

$2.30

18

CUSHION

09320-08018

$3.04

19

CUSHION, LOWER

17798-39G00

$6.49

20

CAP This part replaces 09250-09001.

09250-09008

$1.54

21

CAP, HEAD COVER RH This part replaces 47355-41F00.

47355-41F01

$7.57

22

CUSHION, UPPER

09320-09501

$2.03
