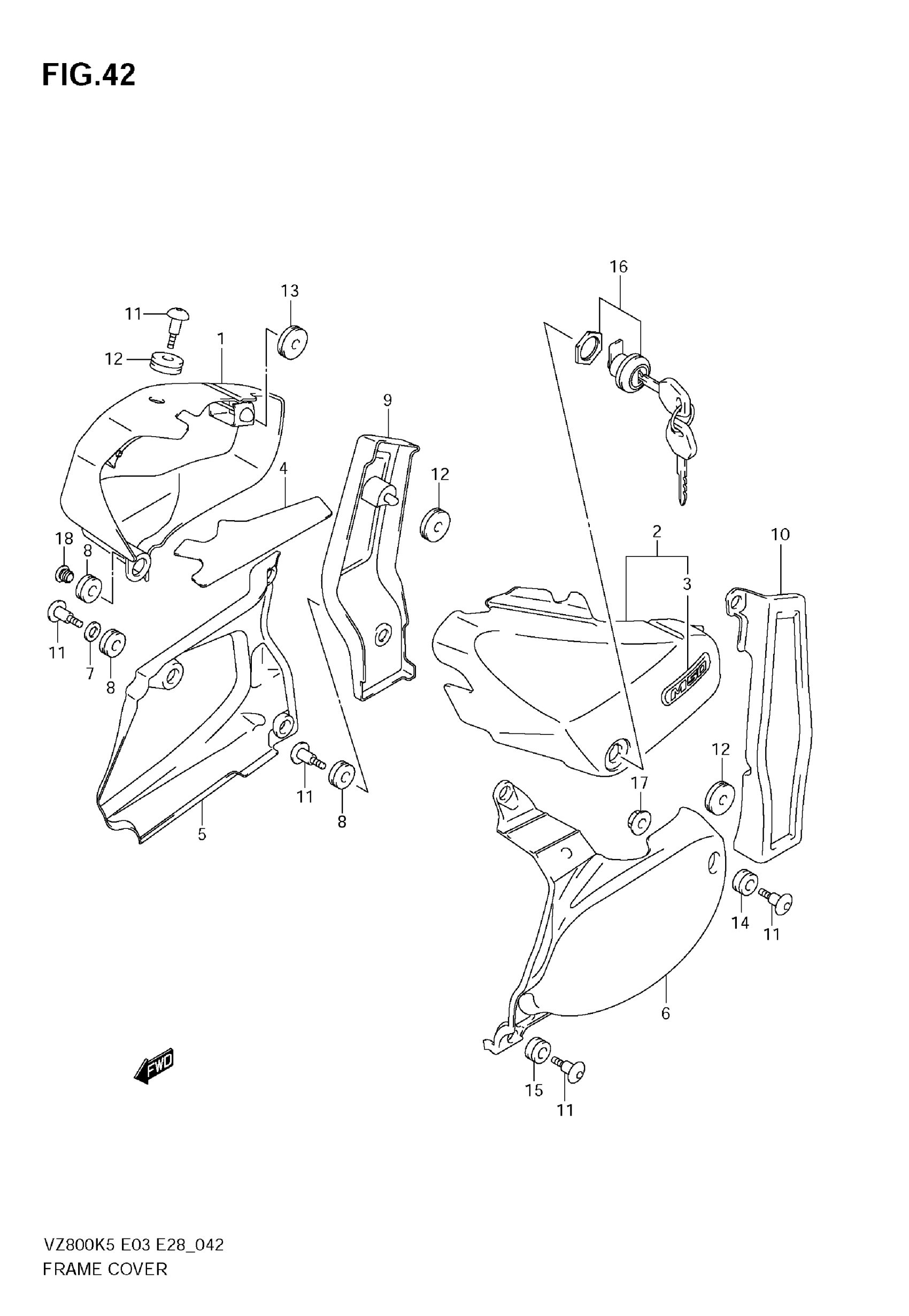

Suzuki VZ800 (2009) FRAME COVER (VZ800) Diagram

#

Description
Price

1

COVER,SIDE,R(BL | E3,E28 This part replaces 47110-39G00-YAY.

47110-39G31-YAY

Unavailable

1

COVER, FRAME RH (RED) | MODEL K5 E3,E28

47110-39G00-YU7

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K5 E3,E28

47110-39G00-YBA

Unavailable

1

COVRE, FRAME RH (BLUE) | MODEL K6 E3,E28

47110-39G00-YC2

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL K6 E3,E28

47110-39G00-YHG

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K7 E3,E28

47110-39G00-YLD

Unavailable

1

COVER,SIDE,R(BL | E33 This part replaces 47110-39G10-YAY.

47110-39G41-YAY

Unavailable

1

COVER, FRAME RH (RED) | MODEL K5 E33

47110-39G10-YU7

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K5 E33

47110-39G10-YBA

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K6 E33

47110-39G10-YC2

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL K6 E33

47110-39G10-YHG

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K7 E33

47110-39G10-YLD

Unavailable

2

COVER, FRAME LH (BLACK)

47210-39G00-YAY

$273.74

2

COVER, FRAME LH (RED) | MODEL K5

47210-39G00-YU7

Unavailable

2

COVER, FRAME LH (BLUE) | MODEL K5

47210-39G00-YBA

Unavailable

2

COVER,SIDE,L | MODEL K6 This part replaces 47210-39G00-YC2.

47211-41F01

$45.30

2

COVER, FRAME LH (GRAY) | MODEL K6

47210-39G00-YHG

$285.88

2

COVER, FRAME LH (BLUE) | MODEL K7; Includes Item(s) 3

47210-39G00-YLD

Unavailable

3

EMBLEM, M50 This part replaces 68131-39G00.

68131-39G01

$35.65

4

SHIELD, FRAME COVER RH

47166-41F00

$17.83

5

COVER, SIDE LOWER RH

47130-41F10

Unavailable

6

COVER, SIDE LOWER LH

47231-41F10

$289.23

7

WASHER

09160-10123

$2.12

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

9

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$137.92

10

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$137.92

11

SCREW

09139-06126

$4.04

12

CUSHION

09320-08018

$3.04

13

CUSHION BOX REAR

09320-08028

$3.04

14

CUSHION

09320-09501

$2.03

15

CUSHION | MODEL K5/K6 This part replaces 09320-09026.

09320-09062

$2.00

15

CUSHION | MODEL K7/K8 This part replaces 09320-09045.

09320-09062

$2.00

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

17

NUT | MODEL K5/K6 This part replaces 08316-10063.

08316-1006B

$2.50

17

NUT, SIDE LOWER LH | MODEL K7/K8

08316-1006B

$2.50

18

CAP This part replaces 09250-09001.

09250-09008

$1.54
