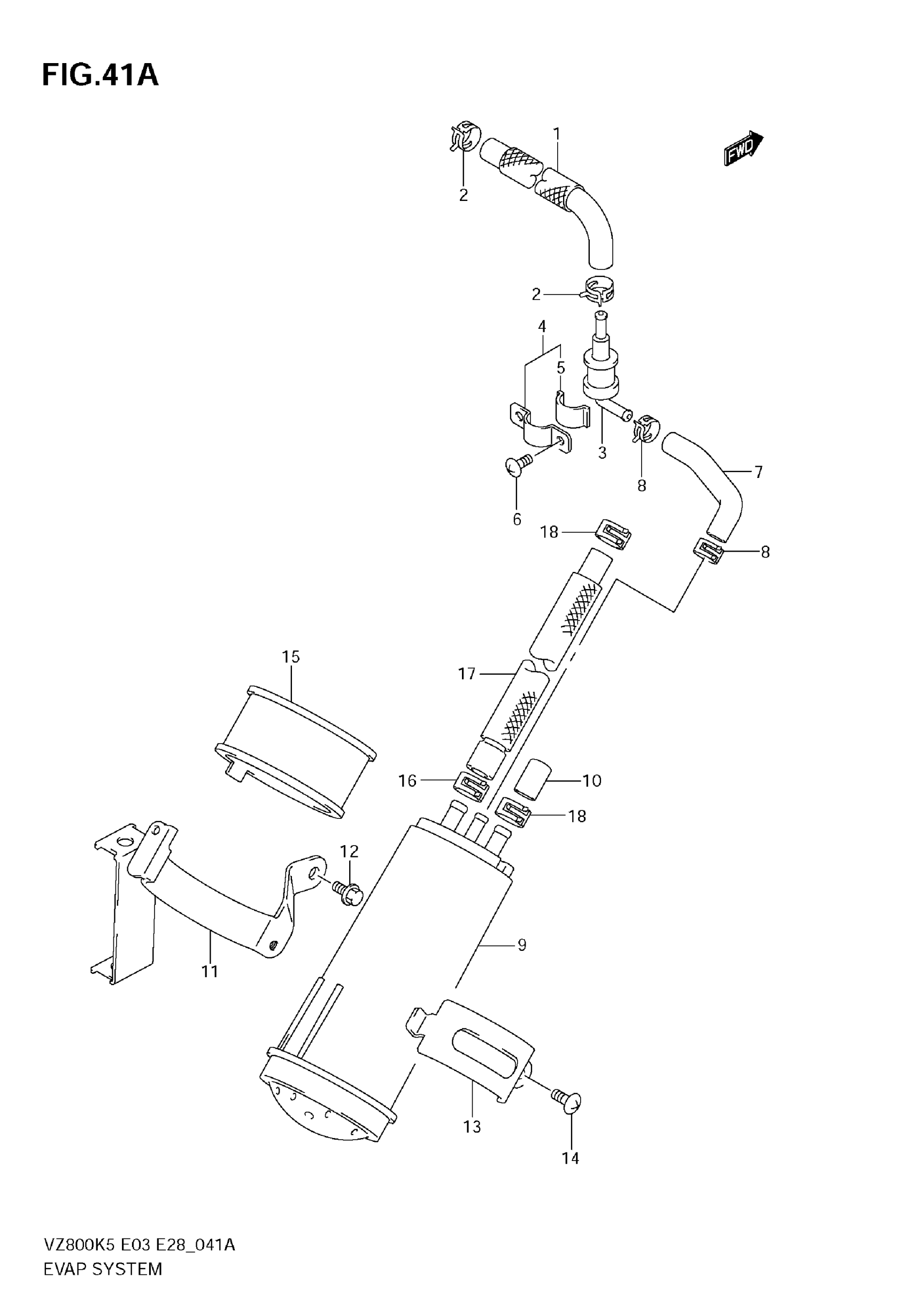

Suzuki VZ800 (2009) EVAP SYSTEM (MODEL K9) Diagram

#

Description
Price

1

HOSE, TANK & VALVE UPPER

44434-39G01

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 5

44892-24A00

$4.52

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW, PLATE

02142-0408B

$1.70

7

HOSE, VALVE & CANISTER

44435-39G10

Unavailable

8

CLIP

09401-11413

$2.26

9

CANISTER

17200-17H00

Unavailable

10

CAP, PURGE

09251-07003

$2.53

11

BRACKET, CANISTER

44880-43H00

Unavailable

12

BOLT, BRACKET

09139-06108

Unavailable

13

HOLDER, CANISTER

44882-26E00

Unavailable

14

SCREW, HOLDER

02142-0610B

$2.15

15

CUSHION CANISTER

44883-26E00

Unavailable

16

CLIP

09401-12404

$2.34

17

HOSE, THROTTLE BODY

44436-43H00

Unavailable

18

CLIP

09401-11413

$2.26
