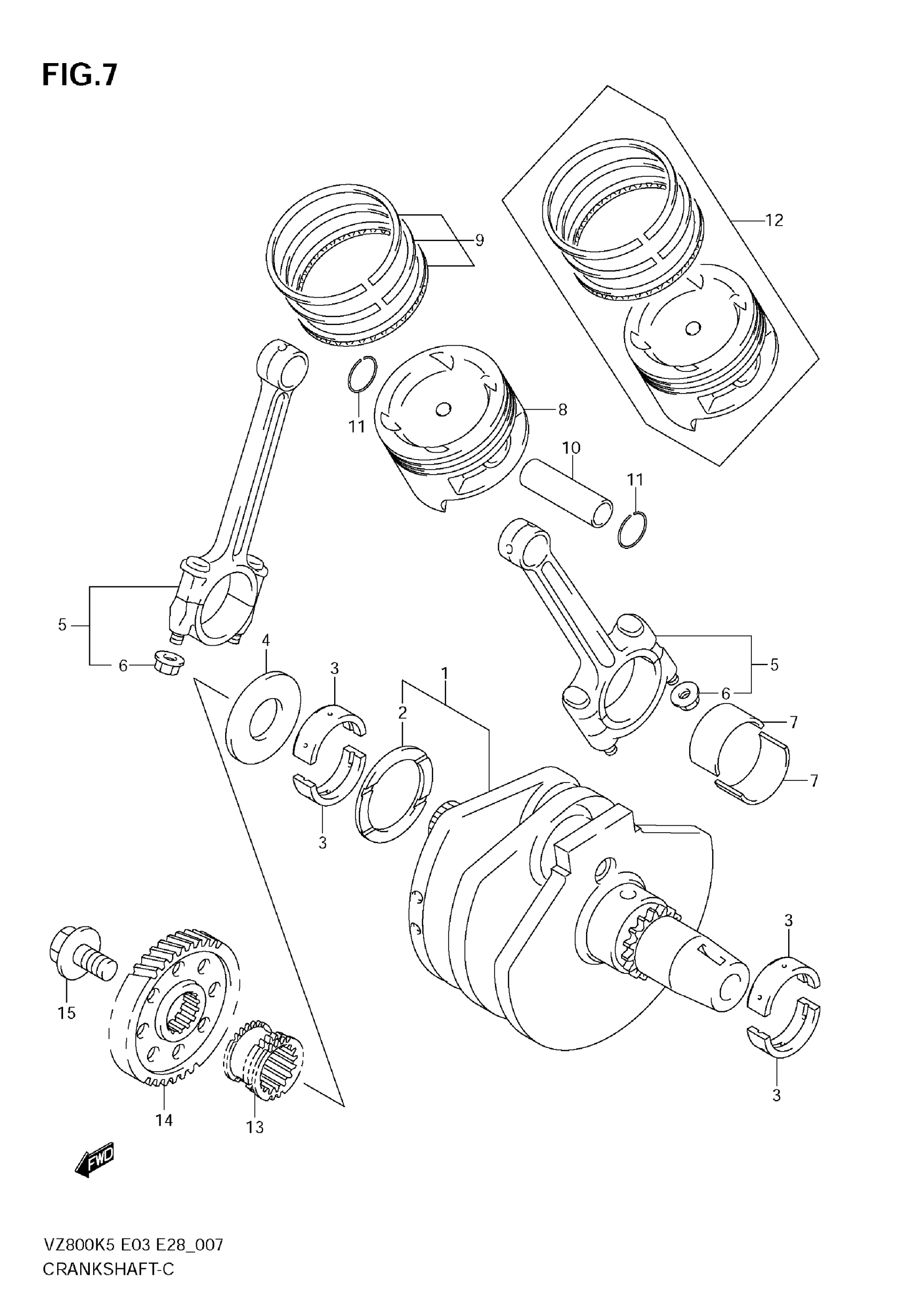

Suzuki VZ800 (2009) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 2 This part replaces 12000-41810.

12000-41830

$1,356.75

2

WASHER, CRANK THRUST (T:1.94)

09160-48001

Unavailable

2

WASHER, CRANK THRUST (T:1.96)

09160-48002

Unavailable

2

WASHER, CRANK THRUST (T:1.99)

09160-48003

Unavailable

2

WASHER, CRANK THRUST (T:2.01)

09160-48004

Unavailable

2

WASHER, CRANK THRUST (T:2.04)

09160-48005

Unavailable

2

WASHER, CRANK THRUST (T:2.06)

09160-48006

$30.35

2

WASHER, CRANK THRUST (T:2.09)

09160-48007

Unavailable

2

WASHER, CRANK THRUST (T:2.11)

09160-48008

Unavailable

2

WASHER, CRANK THRUST (T:2.14)

09160-48009

Unavailable

2

WASHER, CRANK THRUST (T:2.16)

09160-48010

$30.35

3

BEARING, CRANKSHAFT (GREEN)

12229-39G00-0A0

$17.28

3

BEARING, CRANKSHAFT (BLACK)

12229-39G00-0B0

$17.28

3

BEARING, CRANKSHAFT (BROWN)

12229-39G00-0C0

$17.28

4

WASHER, CRANK THRUST

12652-38A00

$81.72

5

ROD ASSY, CONNECTING | MODEL K5/K6/K7/K8 This part replaces 12160-45C10.

12160-45C30

$185.15

5

ROD ASSY, CONNECTING | MODEL K9; Includes Item(s) 6

12160-45C30

$185.15

6

NUT

09159-09001

$4.68

7

BEARING, CRANK PIN (GREEN)

12164-38E00-0A0

$13.77

7

BEARING, CRANK PIN (BLACK)

12164-38E00-0B0

$11.50

7

BEARING, CRANK PIN (BROWN)

12164-38E00-0C0

$11.50

7

BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0

$14.02

7

BEARING, CRANK PIN (BLUE)

12164-38E00-0E0

$14.02

8

PISTON This part replaces 12111-41F00-0F0.

12111-41F10-0F0

$103.09

9

RING SET, PISTON

12140-41F00

$43.70

10

PIN,PISTON

12151-24A00

$22.03

11

CIRCLIP

09381-20004

$1.65

12

PISTON SET (OS:0.5) | OPT This part replaces 12100-41F00-050.

12100-41F10-050

$179.57

13

SPROCKET, CAM CHAIN DRIVE RH

12731-38A00

$59.07

14

GEAR, PRIMARY DRIVE | NT:42

21111-38A00

Unavailable

15

BOLT (12X28)

09103-12013

$8.83
