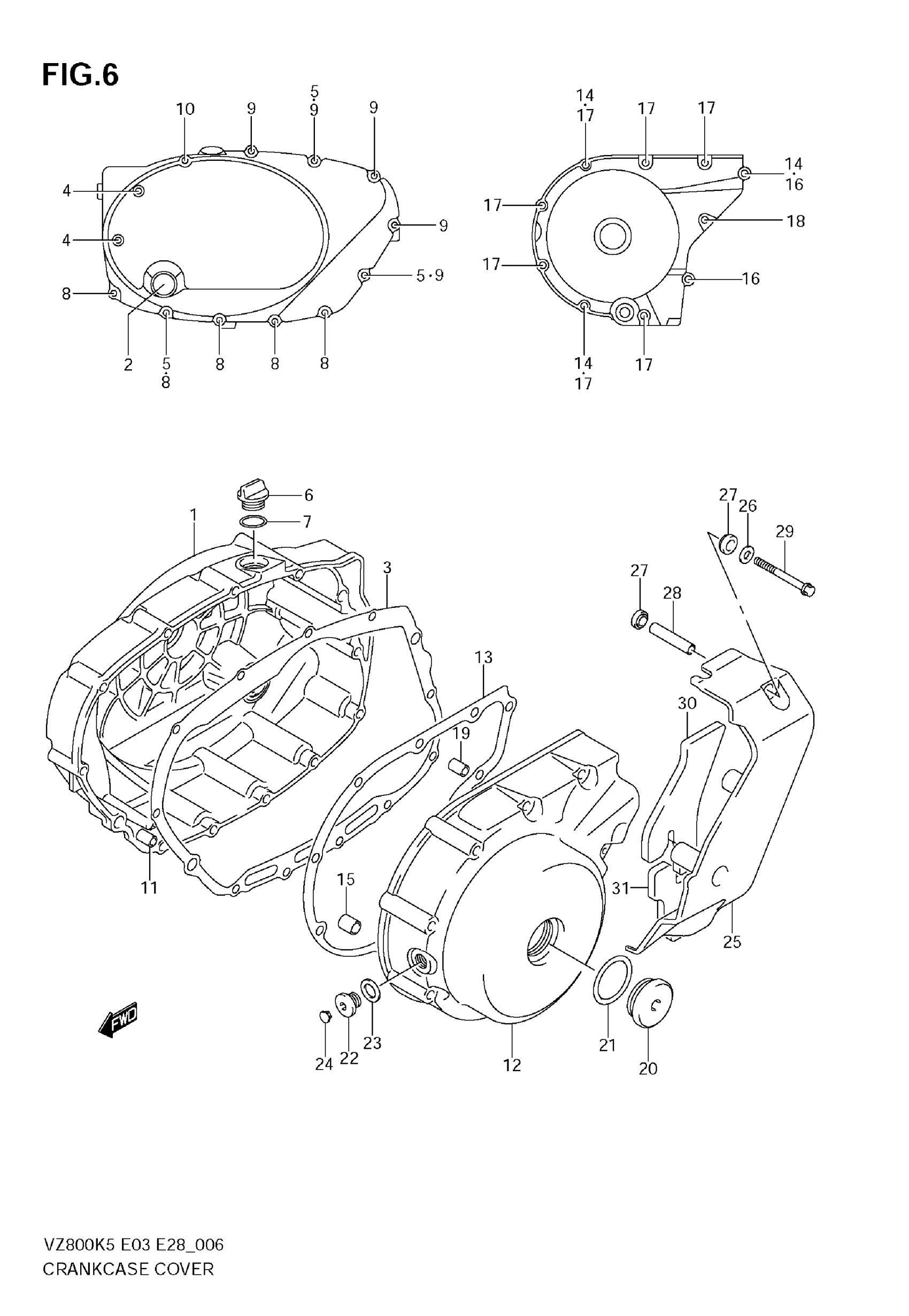

Suzuki VZ800 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-39G00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-41F00

$17.14

4

BOLT (L:105)

09103-06270

$4.32

5

GASKET

09168-06023

$2.35

6

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

7

O RING

09280-17003

$1.65

8

BOLT (L:30)

09103-06213

$2.47

9

BOLT (L:50)

09103-06238

$2.66

10

BOLT (L:85)

09103-06226

$3.85

11

PIN

04211-09189

$1.65

12

COVER, GENERATOR This part replaces 11351-39G00.

11351-39G01

$367.98

13

GASKET, GENERATOR COVER

11483-41F00

$14.20

14

GASKET, GENERATOR COVER BOLT

09168-06023

$2.35

15

PIN (11X20)

09206-11007

$2.37

16

BOLT (L:40)

09103-06215

$2.78

17

BOLT (L:55)

09103-06216

$2.78

18

BOLT (L:85)

09103-06226

$3.85

19

PIN

04211-09189

$1.65

20

PLUG, CRANKSHAFT HOLE

09259-36008

$8.46

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

23

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

24

CAP, T.D.C.PLUG

09250-08012

$2.15

25

COVER, SECONDARY DRIVE

11361-39G00

Unavailable

26

WASHER

09160-06125

$1.91

27

CUSHION

09161-09005

$2.36

28

SPACER

09180-06280

$5.07

29

BOLT (L:55)

09103-06216

$2.78

30

CUSHION, SEC DRIVE COVER NO.1 | MODEL K9

11362-39G00

$15.00

31

CUSHION, SEC DRIVE COVER NO.2 | MODEL K9

11363-39G00

$10.58
