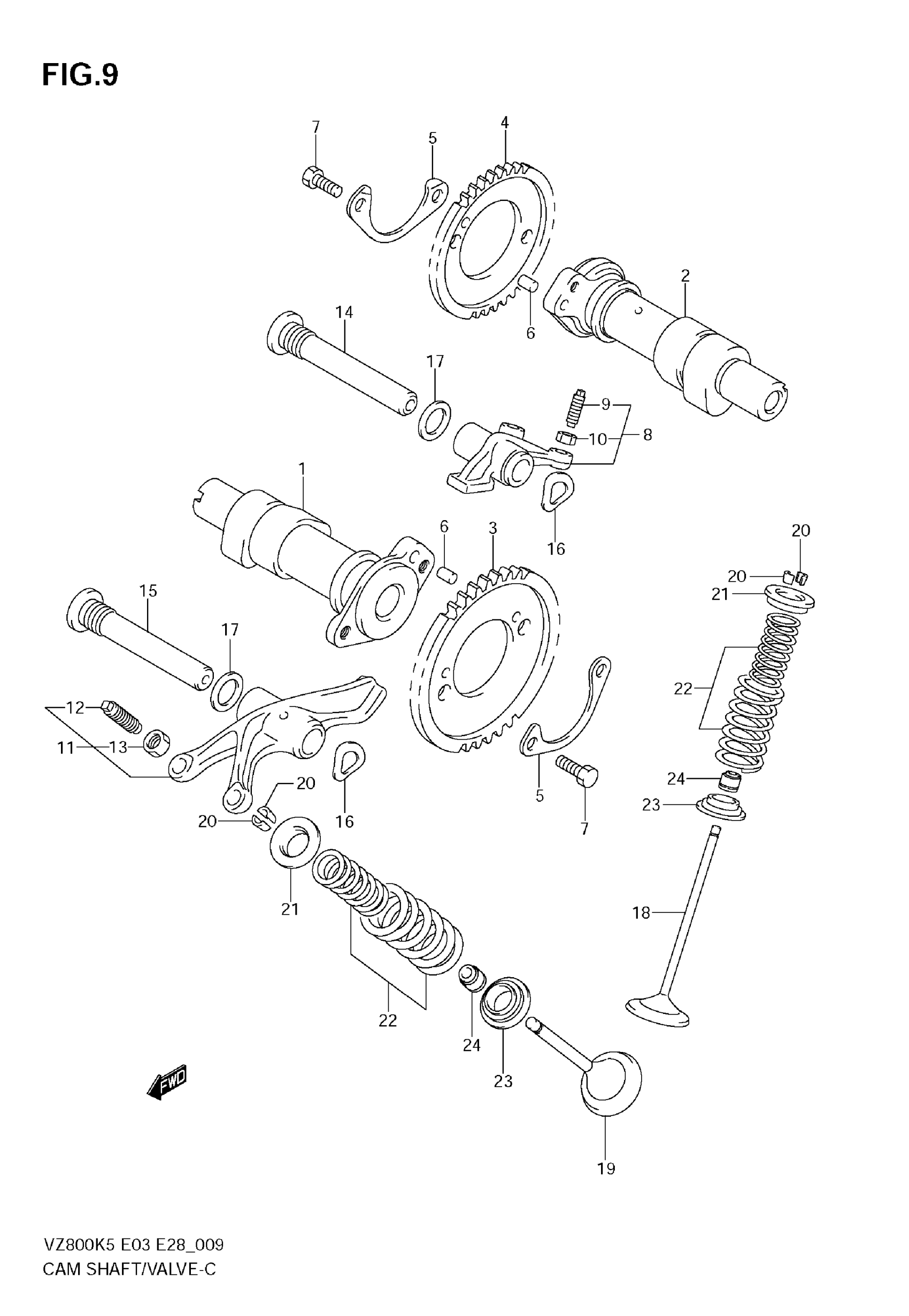

Suzuki VZ800 (2009) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12711-41F00

$215.93

2

CAMSHAFT, REAR

12713-41F00

$215.93

3

SPROCKET, CAMSHAFT FRONT

12741-41F00

$62.48

4

SPROCKET, CAMSHAFT REAR

12741-37400

Unavailable

5

WASHER

12747-44001

$2.50

6

PIN

04221-05109

$1.49

7

BOLT (6X12.5)

09111-06027

$1.72

8

ARM, VALVE ROCKER INTAKE | Includes Item(s) 9 - 10 This part replaces 12840-38A10.

12840-38A11

$87.45

9

SCREW

12842-38A00

$6.17

10

.NUT, ADJUSTING SCREW

12843-32400

$2.79

11

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 12 - 13

12850-38A10

$94.45

12

SCREW

12842-38A00

$6.17

13

.NUT, ADJUSTING SCREW

12843-32400

$2.79

14

SHAFT, VALVE ROCKER ARM INTAKE

12861-39G00

Unavailable

15

SHAFT, VALVE ROCKER ARM EXHAUST

12871-39G00

Unavailable

16

WASHER

09164-12018

$1.49

17

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

18

VALVE, INTAKE

12911-38A03

$36.45

19

VALVE, EXHAUST

12912-38A03

$60.68

20

COTTER, VALVE

12932-24400

$1.94

21

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

$8.28

22

SPRING SET, VALVE

12920-38A00

$14.34

23

SEAT, SPRING

12933-33201

$6.05

24

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70
