Description

Price

1

CHAIN, CAM SHAFT DRIVE FRONT (DID SCA-0412A SV X 132LE) This part replaces 12760-41F00.

12760-41F01

$185.62

2

CHAIN, CAM SHAFT DRIVE REAR (DID SCA-0412A SV X 128LE) This part replaces 12760-38A20.

12760-38A21

$187.13

3

GUIDE,CAM CHAIN FRONT This part replaces 12772-41F00.

12772-41F01

$44.00

4

GUIDE,CAM CHAIN REAR This part replaces 12771-41F00.

12771-41F01

$44.90

5

BOLT (6X26)

09100-06129

$2.38

6

WASHER

08211-06182

$1.92

7

SPACER

09180-06148

Unavailable

8

ADJUSTER ASSY, TENSIONER FRONT

12831-38A01

$150.35

9

ADJUSTER ASSY, TENSIONER REAR

12832-41F01

$150.35

10

BOLT (6X20)

07130-0620B

$3.05

11

BOLT (6X30)

07130-0630B

$3.37

12

BOLT (6X45)

07130-0645B

$4.10

13

TENSIONER,CAM CHAIN FRONT This part replaces 12811-41F00.

12811-41F01

$45.45

14

TENSIONER, CAM CHAIN REAR

12816-38A01

$60.97

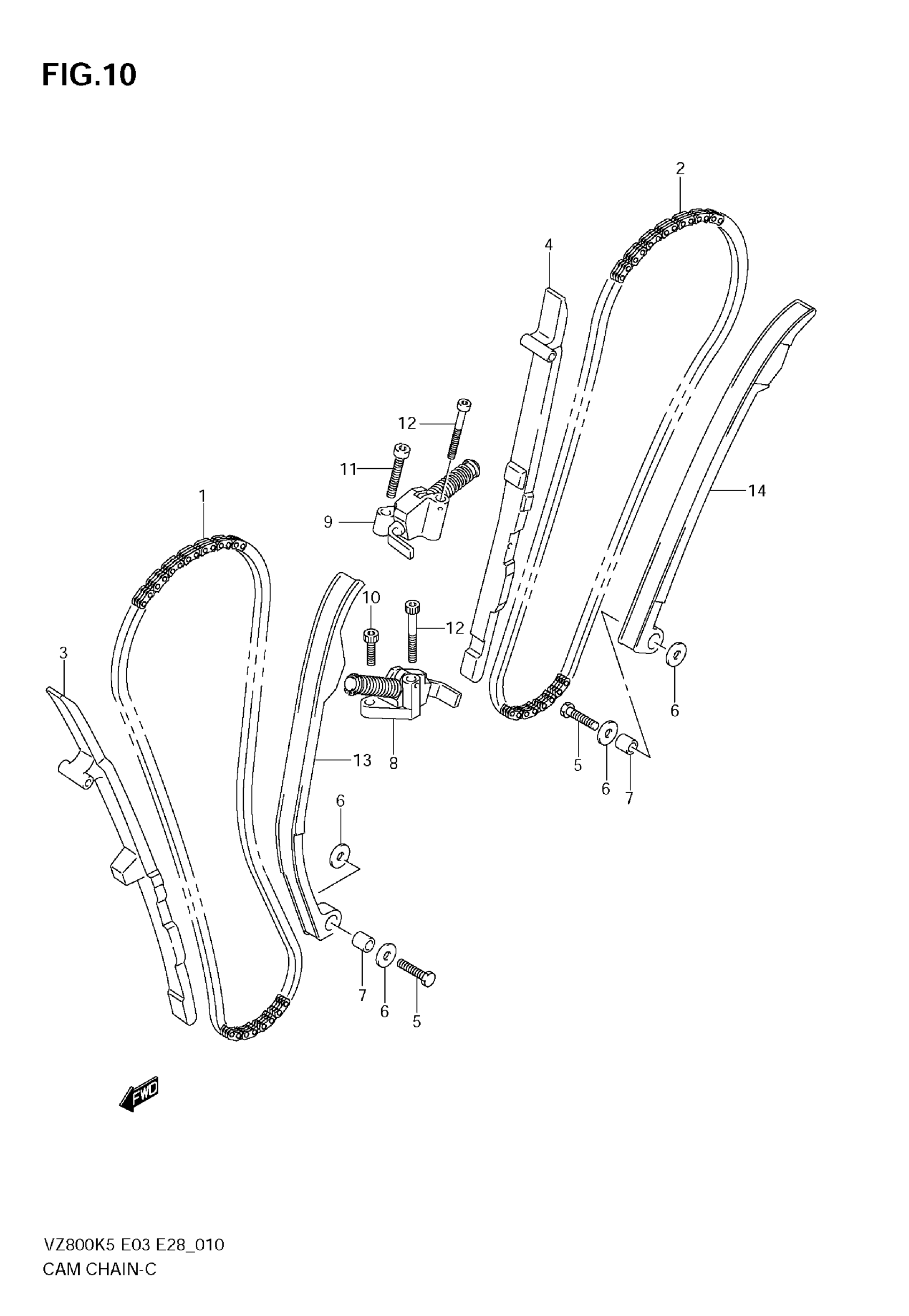

Suzuki VZ800 (2009) CAM CHAIN Diagram
