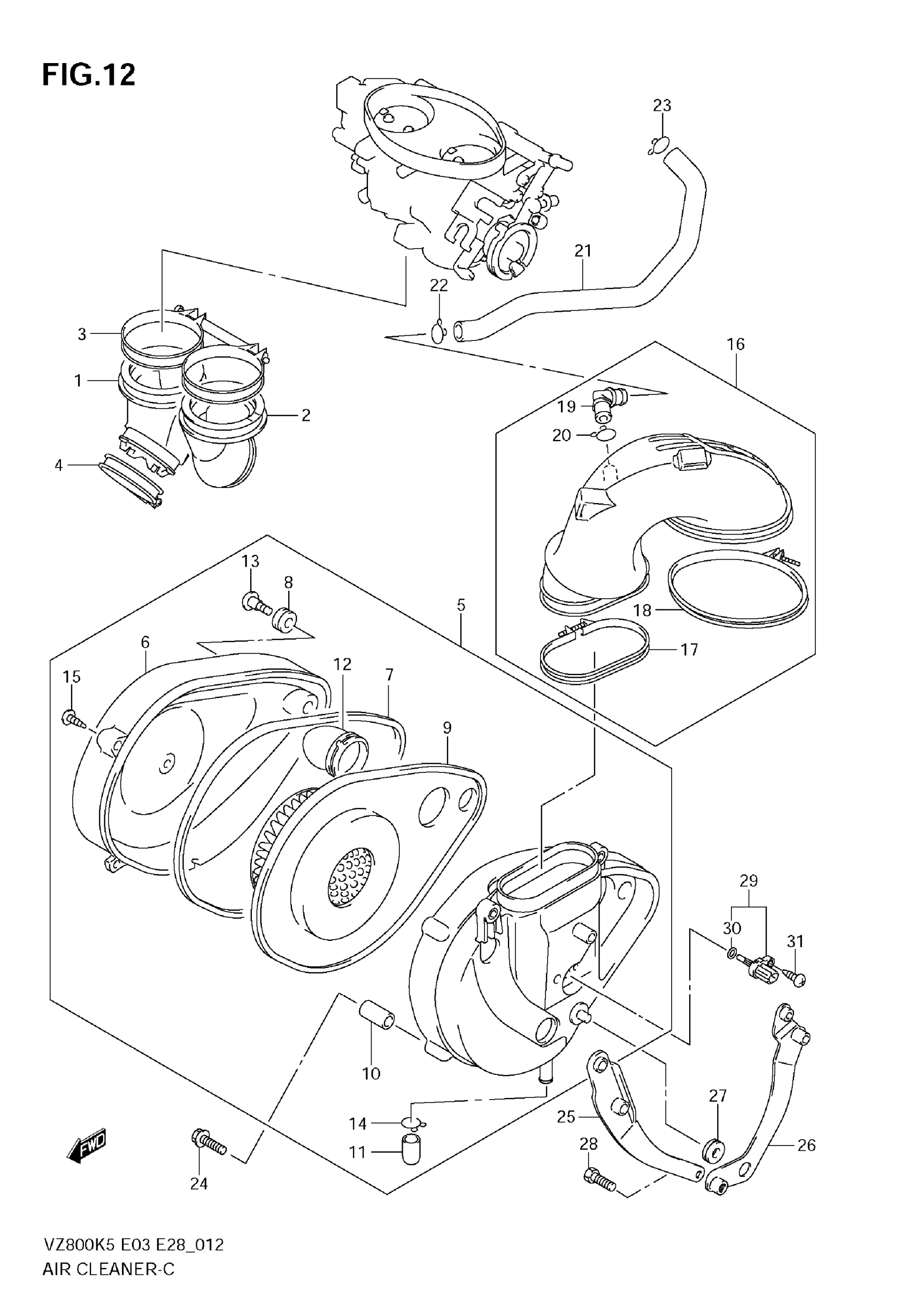

Suzuki VZ800 (2009) AIR CLEANER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

PIPE,INTAKE NO. This part replaces 13111-41F00.

13111-41F01

$22.05

2

PIPE,INTAKE NO. This part replaces 13121-41F00.

13121-41F01

$20.59

3

CLAMP, INTAKE PIPE

13170-41F00

$29.27

4

CLAMP, INTAKE PIPE HEAD

13170-15G00

$6.42

5

CASE ASSY,AIR C | Includes Item(s) 6 - 15 This part replaces 13701-39G00.

13701-39G01

Unavailable

6

CAP, AIR CLEANER

13741-39G00

$228.70

7

GASKET

13795-39G00

Unavailable

8

CUSHION This part replaces 13747-39G00.

13747-39G01

Unavailable

9

FILTER COMP,AIR This part replaces 13780-39G00.

13780-39G01

$86.17

10

COLLAR

13838-14G00

Unavailable

11

.PLUG

13859-41B10

$7.38

12

TUBE, INLET

13891-39G00

Unavailable

13

SCREW This part replaces 09139-06087.

09139-06126

$4.04

14

CLIP

09401-14301

$2.35

15

SCREW

13831-39G00

$5.47

16

TUBE ASSY, OUTLET | Includes Item(s) 17 - 20

13880-39G00

Unavailable

17

CLAMP

13826-41F00

$19.52

18

CLAMP

13826-41F11

$24.95

19

JOINT This part replaces 13858-14D10.

13858-14D20

$7.22

20

CLIP

09401-14301

$2.35

21

TUBE,BREATHER This part replaces 13853-41F10.

13853-41F11

Unavailable

22

CLIP

09401-15101

$2.26

23

CLIP, BREATHER TUBE

09401-16301

Unavailable

24

SCREW (6x20)

09139-06148

$4.17

25

BRACKET, AIR CLNR

13760-39G00

Unavailable

26

BRACKET, AIR CLNR

13770-39G00

Unavailable

27

CUSHION (8x26x7)

09320-08018

$3.04

28

BOLT

01500-0625B

$2.38

29

SENSOR, AIR TEMP | Includes Item(s) 30

13650-41F10

$63.25

30

O-RING

13655-41F10

Unavailable

31

SCREW

03511-0516B

$2.28
