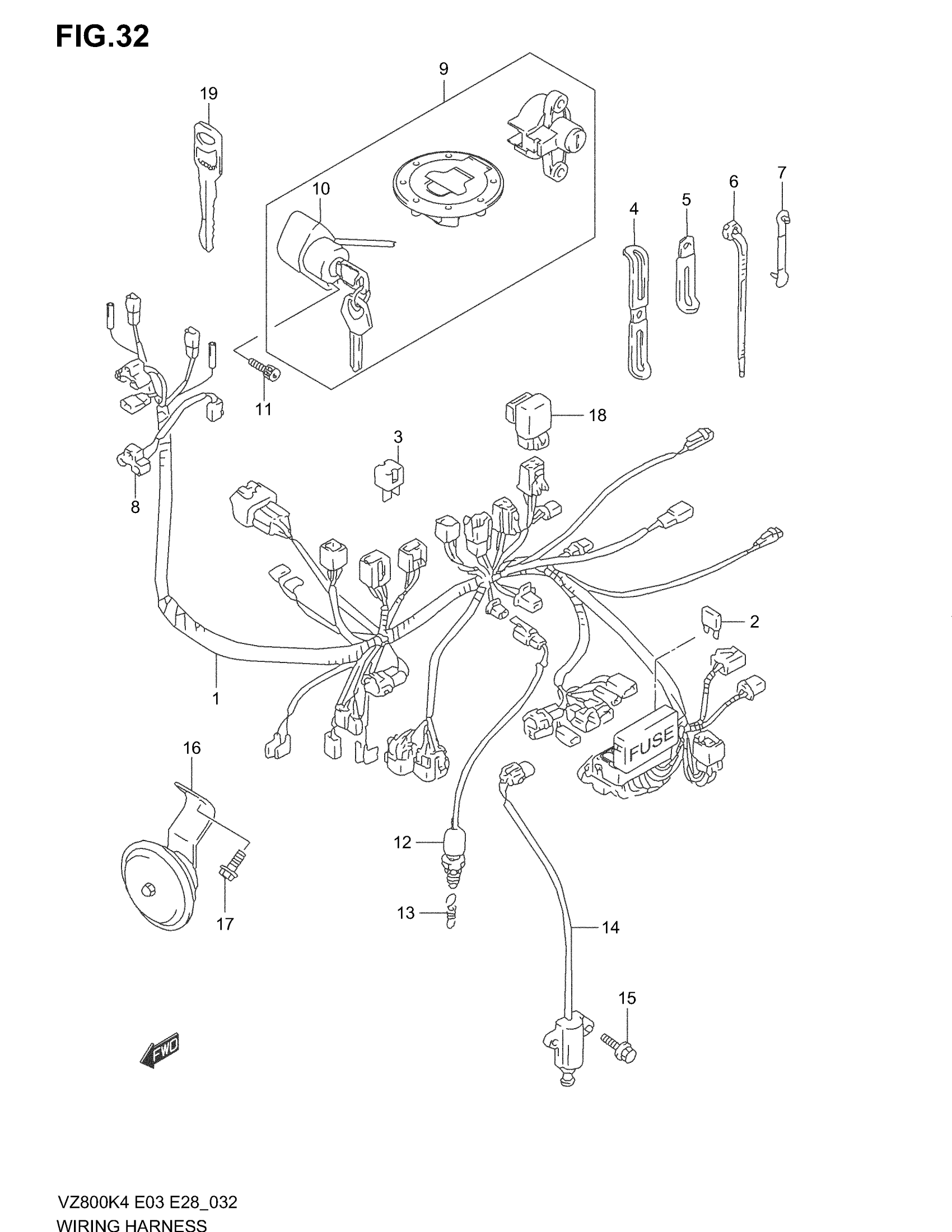

Suzuki VZ800 (2004) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 3

36610-48EA0

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

DIODE

32800-16A00

$23.07

4

CLAMP, WIRING HARNESS

36651-05301

Unavailable

5

CLAMP (L:45)

09404-06429

$1.83

5

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

6

CLAMP (L:125)

09407-14403

$2.26

6

CLAMP (L:165)

09407-18402

$2.19

7

CLAMP

09407-03401

$3.07

8

LEAD WIRE, HEADLAMP

36853-30500

$11.63

9

LOCK SET

37000-48830

Unavailable

9

LOCK SET | E33; Includes Item(s) 10

37000-48840

Unavailable

10

SWITCH ASSY, IGNITION

37110-10F00

$90.61

11

BOLT

09106-06078

$3.37

12

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

13

SPRING

09443-06046

$3.10

14

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

$69.30

15

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

16

HORN ASSY

38500-48E00

Unavailable

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

RELAY ASSY, SIDE STAND WARNING

38740-24X50

$45.20

19

KEY, BLANK | OPT This part replaces 37146-48E00.

37146-48E10

$25.27
