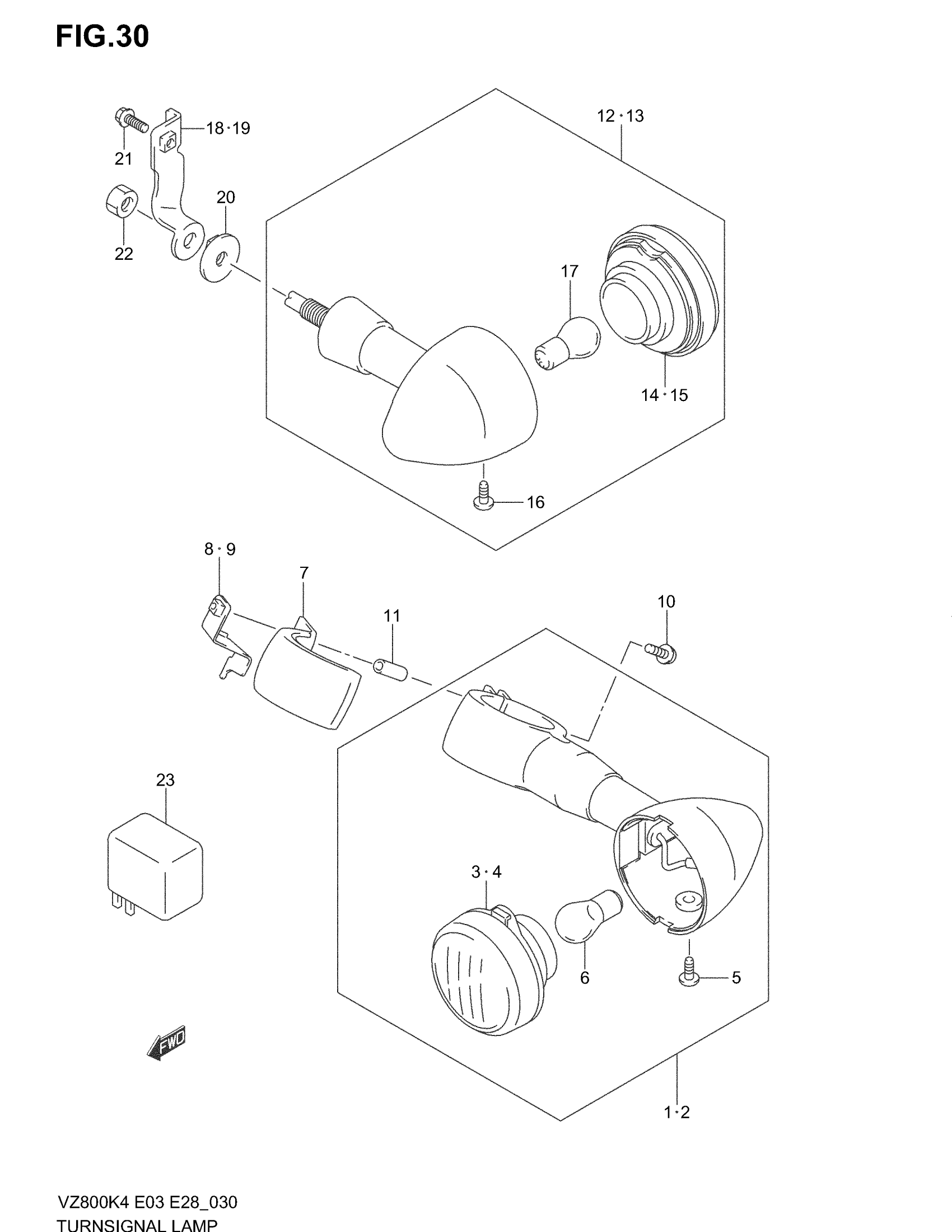

Suzuki VZ800 (2004) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-48E60

$152.42

2

LAMP ASSY, FRONT TURNSIGNAL L | Includes Item(s) 3 - 6

35602-48E60

$152.42

3

LENS | FOR RH

35610-38AA0

$31.91

4

LENS | FOR LH

35630-38AA0

$31.91

5

SCREW

35623-38AA0

$5.11

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

COVER, FRONT TURNSIGNAL STAY

35645-48E00

Unavailable

8

BRACKET, FRONT TURNSIGNAL R

35671-48E10

Unavailable

9

BRACKET, FRONT TURNSIGNAL L

35681-48E10

Unavailable

10

SCREW

09136-06126

$3.15

11

SPACER

09180-06121

$1.98

12

LAMP ASSY,RR TURNSIGNAL RH This part replaces 35603-48EC0.

35603-48EC1

$92.68

13

LAMP ASSY,RR TU | Includes Item(s) 14 - 17 This part replaces 35604-48EC0.

35604-48EC1

$110.18

14

LENS | FOR RH

35630-38AA0

$31.91

15

LENS | FOR LH

35610-38AA0

$31.91

16

SCREW

35623-38AA0

$5.11

17

BULB (12V,21W)

09471-12045

$3.27

18

REINF, REAR TURNSIGNAL R

35608-48E01

Unavailable

19

REINF, REAR TURNSIGNAL L

35609-48E01

Unavailable

20

SPACER, REAR TURNSIGNAL

35695-17C00

$4.03

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

NUT This part replaces 08310-00103.

08310-0010A

$1.84

23

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
