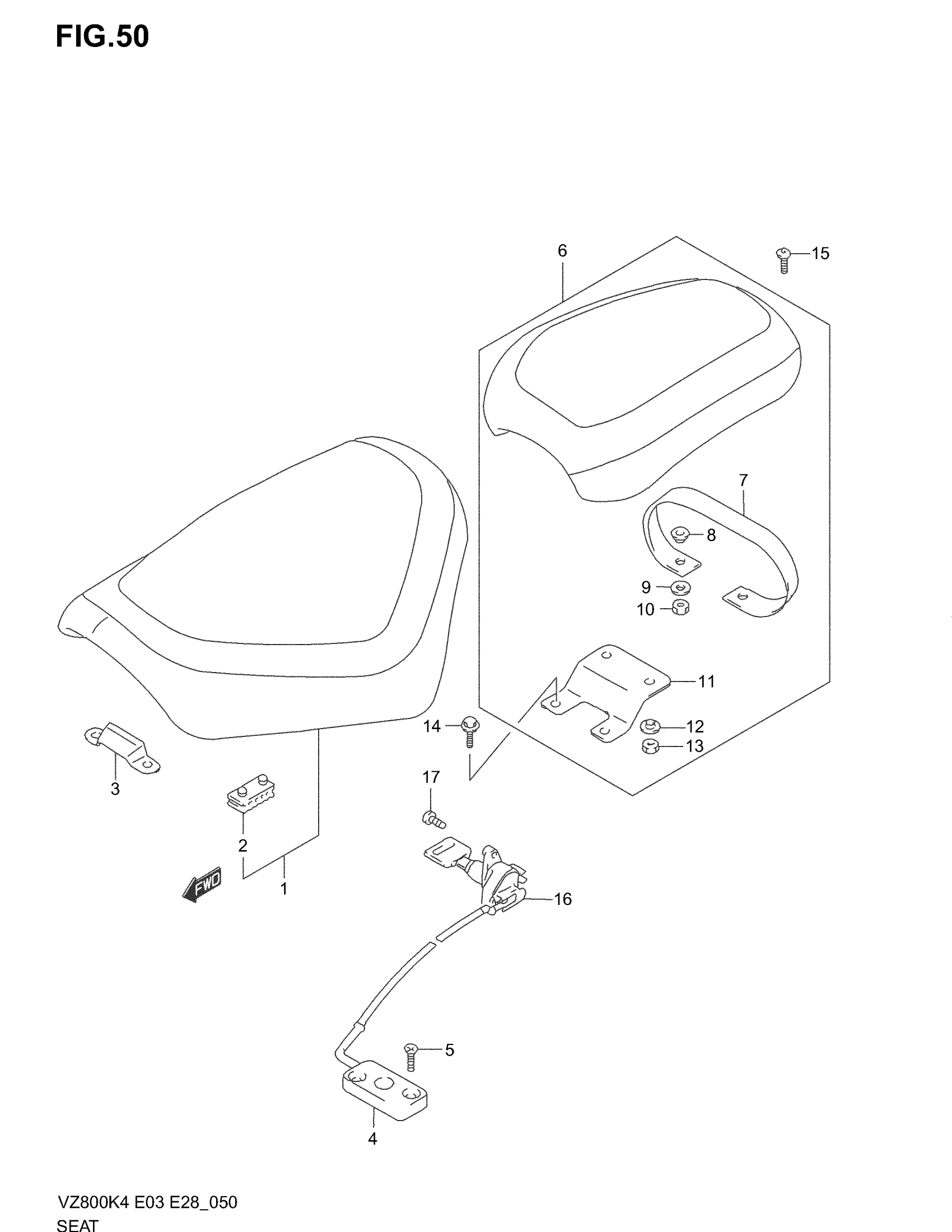

Suzuki VZ800 (2004) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2

45100-48E70-48H

Unavailable

2

CUSHION

45149-31300

$3.56

3

PLATE, FRONT SEAT HOOK

45119-48E00

$5.05

4

BRACKET, SEAT SUPPORT FRONT

45220-48E01

Unavailable

5

SCREW This part replaces 02122-06253.

02122-0625A

$1.49

6

SEAT ASSY, PILLION | Includes Item(s) 7 - 13

45300-48E70-48H

Unavailable

7

BAND, SEAT (BLACK)

45180-48E50-P21

Unavailable

8

WASHER

09169-06071

$2.50

9

WASHER

09160-06084

$1.78

10

NUT This part replaces 08316-20063.

08316-2006A

$2.63

11

PLATE, PILLION SEAT

45116-48E00

Unavailable

12

WASHER

09169-06071

$2.50

13

NUT This part replaces 08316-20063.

08316-2006A

$2.63

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

15

BOLT, REAR (8X16)

09106-08140

$6.38

16

LOCK SET,SEAT This part replaces 95700-12852.

95700-12853

$137.02

17

SCREW (6X14)

09139-06092

$2.83
