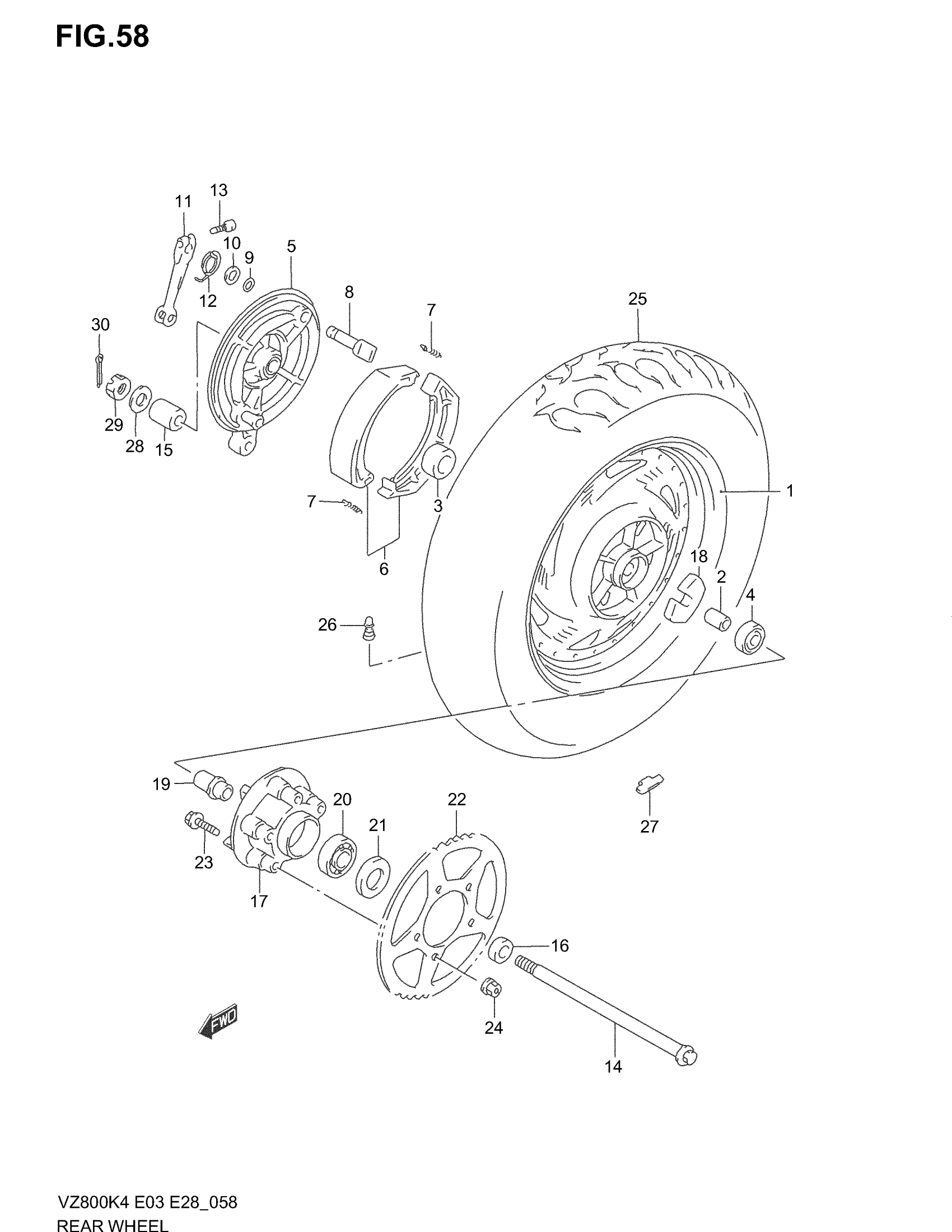

Suzuki VZ800 (2004) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (15M/CXMT3.50) (SILVER)

64150-48E00-12R

Unavailable

2

SPACER (17.5X25X70)

09180-17069

$23.93

3

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

4

BEARING, LH

08143-63037

$22.58

5

PANEL, REAR BRAKE ANCHOR

64210-38A21

$270.62

6

SHOE SET, BRAKE

64400-38810

$55.67

7

SPRING, BRAKE SHOE

55420-30000

$4.48

8

CAM, REAR BRAKE

64441-38A20

$30.75

9

O RING (D:1.9,ID:14.5)

09280-15003

$1.76

10

WASHER (15.5X24X1.6)

09160-15048

$2.56

11

LEVER, REAR BRAKE CAM

64451-38A01

$57.67

12

SPRING

09448-33006

$9.23

13

BOLT

01570-06257

$3.03

14

AXLE, REAR

64711-24B10

Unavailable

15

SPACER, RH (17X33X35.30)

09180-17083

$17.18

16

SPACER, AXLE LH

64751-19C00

$15.42

17

DRUM, SPROCKET MOUNTING

64611-17C01

Unavailable

18

ABSORBER, REAR HUB SHOCK

64651-32C00

$12.17

19

RETAINER, DRUM

64733-10D00

$32.43

20

BEARING (25X62X17)

09262-25073

$25.92

21

SEAL,OIL (35X62X8)

09285-35001

$10.19

22

SPROCKET, REAR (NT:48)

64511-26E00

Unavailable

23

BOLT (10X42)

09119-10037

$4.32

24

NUT

08319-31107

$2.73

25

TIRE, REAR (150/90-15M/C 74H) (DUNLOP)

65110-48E10

Unavailable

26

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

27

BALANCER, WHEEL, NO.1

43222-73H10

$5.82

27

BALANCER, WHEEL, NO.2

43224-73H10

$5.50

27

BALANCER, WHEEL, NO.3

43226-73H10

$6.42

28

WASHER

09160-16031

$2.86

29

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.79

30

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
