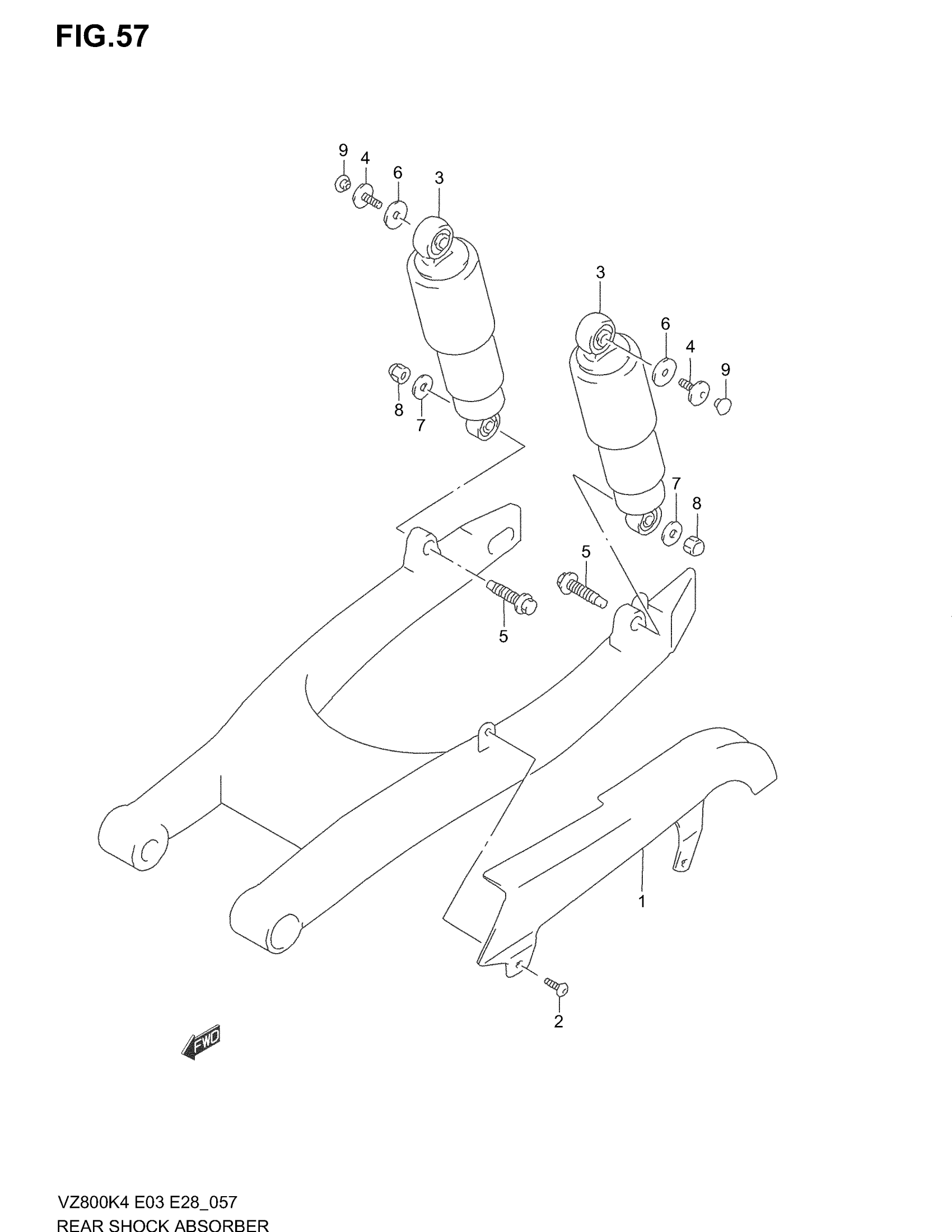

Suzuki VZ800 (2004) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CASE, CHAIN

61310-48E10

Unavailable

2

SCREW

02142-06107

Unavailable

3

ABSORBER ASSY, REAR SHOCK

62100-48E10

Unavailable

4

BOLT, UPPER (8X20)

09106-08094

$7.23

5

BOLT, LOWER (10X52.1)

62313-48E00

Unavailable

6

WASHER, MUFFLER SUPPORT This part replaces 09160-08138.

09160-08503

$2.50

7

WASHER, LOWER (10.5X28X2.30)

09160-10035

$1.78

8

NUT

08313-10107

$2.50

9

CAP

09250-06009

$3.42
