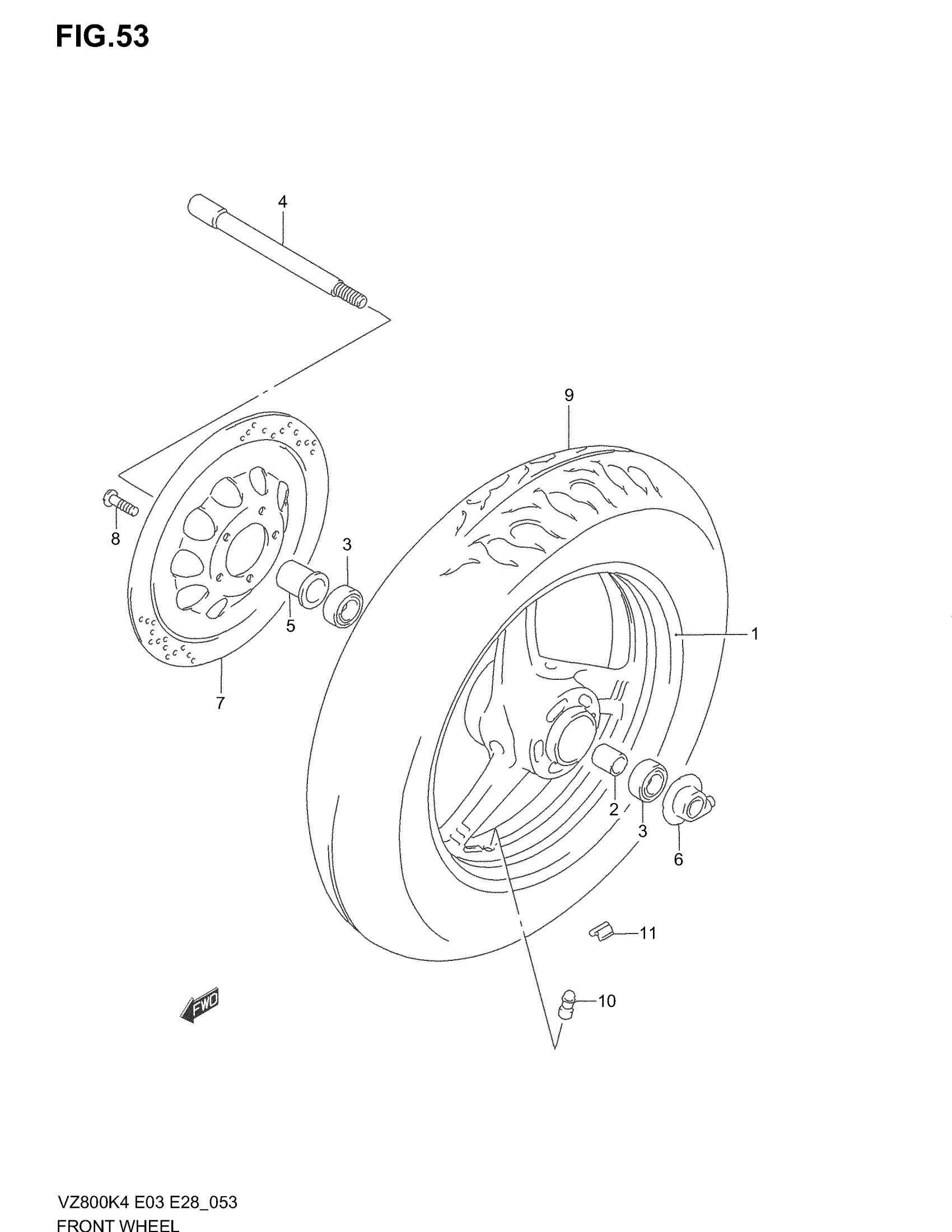

Suzuki VZ800 (2004) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (16XMT3.00) (SILVER)

54111-48E01-12R

Unavailable

2

SPACER (17.5X25X82.1)

09180-17101

Unavailable

3

BEARING

08143-62037

$18.47

4

AXLE, FRONT

54711-22D00

$107.25

5

SPACER COMP,FRO This part replaces 54740-26D00.

54740-26D0V

Unavailable

6

BOX ASSY, SPEEDOMETER GEAR

54600-27A12

$133.62

7

DISC, FRONT BRAKE RH

59211-48E00

$424.60

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

9

TIRE, FRONT (130/90-16 67H) (DUNLOP)

55110-48E10

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER, WHEEL (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
