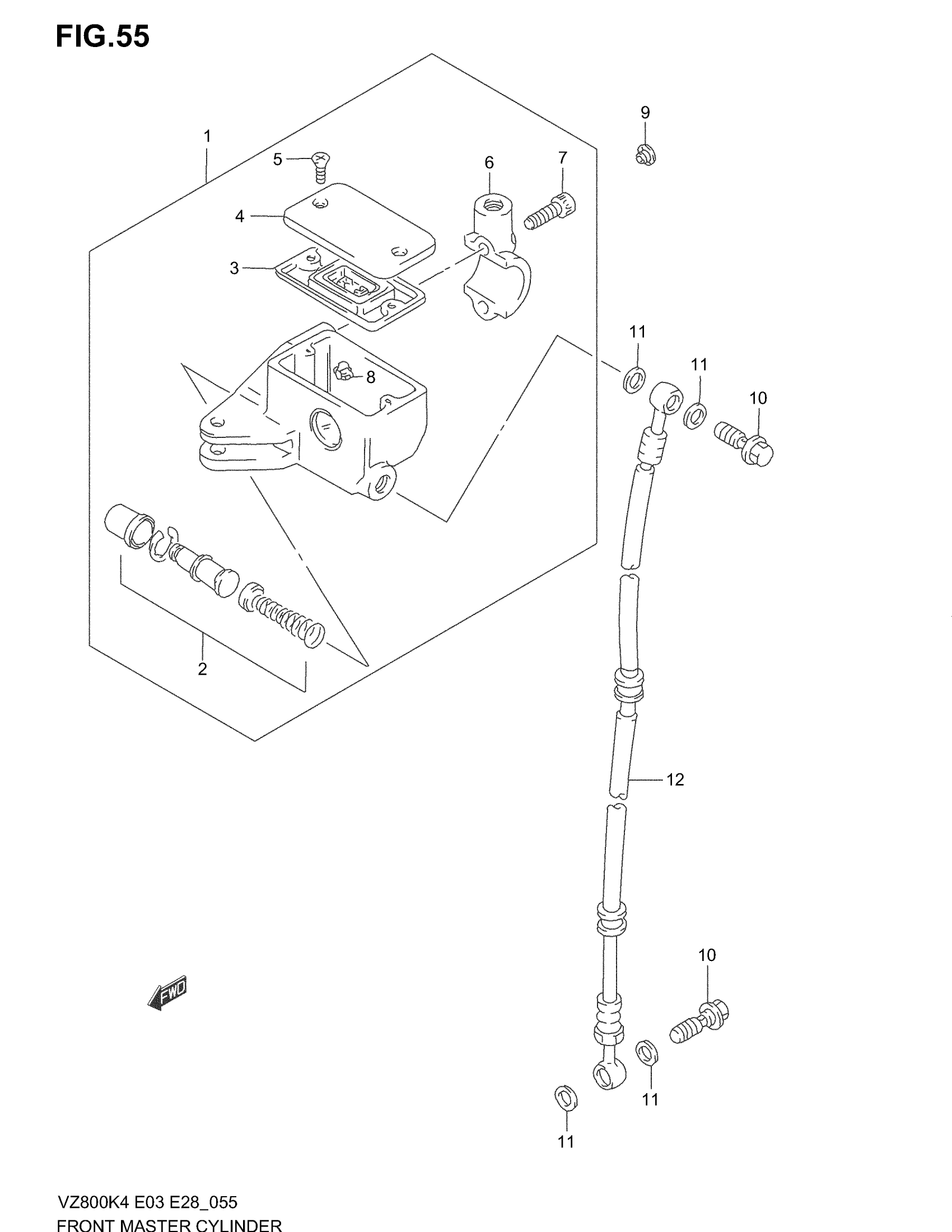

Suzuki VZ800 (2004) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 8

59600-37D10

Unavailable

2

PISTON & CUP SET

59600-04810

$45.20

3

DIAPHRAGM

59667-49460

$9.78

4

CAP

59669-24B00

$61.55

5

SCREW

02122-04127

$1.97

6

HOLDER

59671-38A00

$37.11

7

BOLT

07130-06207

$3.04

8

PROTECTOR

59664-48B00

$11.02

9

CAP

09250-05008

$3.76

10

UNION This part replaces 09360-10042.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE

59480-48E20

Unavailable
