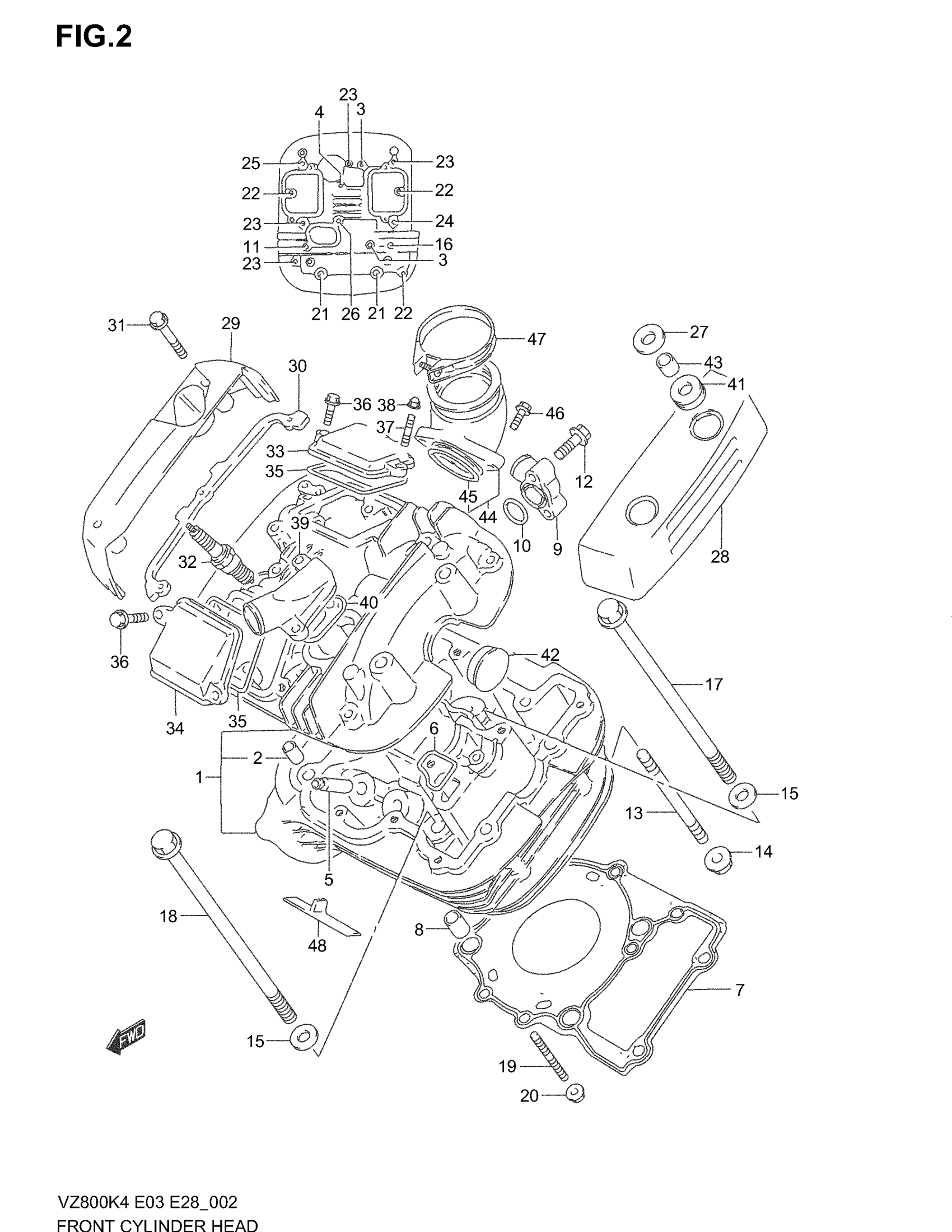

Suzuki VZ800 (2004) FRONT CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 4

11101-48E60

Unavailable

2

PIN

09206-11004

$5.36

3

BOLT (6X50)

09103-06101

$2.16

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$40.73

6

GASKET

11123-38A00

$3.77

7

GASKET

11141-45C00

$56.84

8

PIN

04211-13189

$2.19

9

UNION, CYLINDER HEAD WATER

11169-45C10

Unavailable

10

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

11

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

12

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

13

STUD BOLT (8X40)

09108-08144

$3.20

14

NUT This part replaces 08316-10083.

08316-1008B

$2.66

15

WASHER

09160-10039

$2.26

16

BOLT (8X140)

09103-08040

$5.52

17

BOLT (10X155)

09103-10133

$9.48

18

BOLT (10X165)

09103-10134

$9.48

19

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

20

NUT This part replaces 08316-10063.

08316-1006B

$2.50

21

BOLT (8X245)

09103-08180

Unavailable

22

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

23

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

24

BOLT This part replaces 07120-06303.

07120-0630B

$3.49

25

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

26

BOLT (6X55)

09103-06102

$2.10

27

WASHER

09160-08130

$2.03

28

CAP, HEAD COVER (F-L/R-R)

11171-48E00

Unavailable

29

CAP, HEAD COVER (F-R)

11172-48E00

Unavailable

30

CUSHION

11272-38A00

$11.07

31

BOLT

09103-06193

$4.00

32

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$3.03

32

SPARK PLUG (DENSO,X24EPR-U9)

09482-00335

$5.36

32

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.32

32

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.32

32

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$3.11

32

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

$5.28

33

CAP, INSPECTION INTAKE

11175-38A11

$23.07

34

CAP, INSPECTION EXHAUST

11176-38A11

$23.07

35

GASKET

11177-38A00

$4.48

36

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

37

STUD BOLT (6X16)

09108-06102

$4.08

38

NUT This part replaces 08313-20063.

08313-2006A

$1.97

39

UNION, WATER OUTLET

11181-45C10

Unavailable

40

GASKET

11182-38A00

$2.81

41

CUSHION

09320-13015

$2.85

42

PLUG

09241-30004

$6.60

43

BUSH

09301-08007

$6.80

44

PIPE ASSY,INTAK | Includes Item(s) 45 This part replaces 13101-45C00.

13101-45C01

$70.55

45

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

46

SCREW This part replaces 02122-06203.

02122-0620A

$1.49

47

CLAMP

09402-52501

$10.90

48

PLATE, HEAD COVER REAR

11179-38A00

Unavailable
