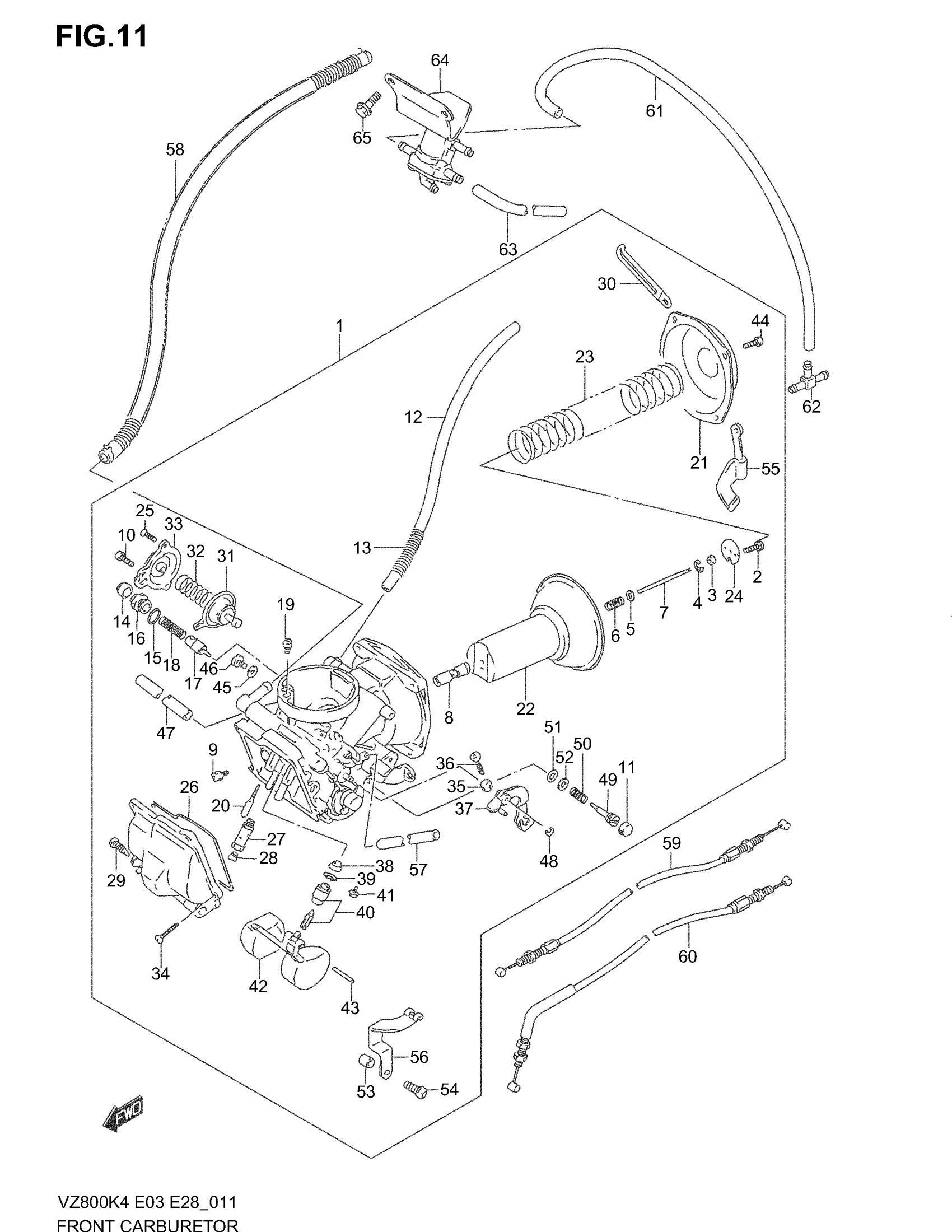

Suzuki VZ800 (2004) FRONT CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, FR | E3,E28

13210-48EF0

Unavailable

1

CARBURETOR ASSY, FR | E33; Includes Item(s) 2 - 57

13210-48EG0

Unavailable

2

SCREW

02112-33073

$2.60

3

RING

13387-47010

$7.22

4

CLIP

13394-10010

$5.45

5

WASHER

13382-03110

$2.80

6

SPRING

13388-44030

$8.12

7

NEEDLE, JET (5C43-1)

13383-48E80

$19.48

8

JET, NEEDLE (P-4M)

09494-00901

Unavailable

9

SCREW

13605-38B00

$7.95

10

SCREW

02112-04107

$1.55

11

PLUG

13281-05A00

$4.60

12

HOSE | E3,E28 L:650!160 This part replaces 13683-19B80.

13683-19B81

$17.37

12

HOSE | E33,L:650!80 This part replaces 13683-19B80.

13683-19B81

$17.37

13

SPRING | E33

13689-38A00

$9.17

14

.CAP This part replaces 13681-04010.

13681-04011

$4.93

15

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

16

HOLDER

13418-38A00

$10.23

17

PLUNGER

13411-01400

$13.30

18

SPRING

13417-08210

$3.56

19

JET, AIR (65)

09492-65005

$11.38

20

JET, PILOT (40)

09492-40021

$16.78

21

COVER

13502-38A00

$37.53

22

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

23

SPRING

13503-38B00

$10.69

24

PLATE

13389-37400

$7.08

25

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

26

O RING

13251-38A00

$6.79

27

HOLDER

13385-05A11

$14.85

28

JET, MAIN (90)

09491-90011

$17.43

29

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

30

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

31

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

32

SPRING

13481-45C10

$5.55

33

COVER

13484-38A00

$22.65

34

SCREW

13602-48B10

$3.43

35

NUT

08310-00047

$2.23

36

SCREW

02112-04307

$2.72

37

LEVER ASSY

13554-45C20

$41.63

38

FILTER

13376-19F00

$10.28

39

O RING

13374-35C00

$5.99

40

VALVE ASSY, NEEDLE

13370-39A00

$60.40

41

SCREW

13602-05A10

$3.56

42

FLOAT

13250-38B00

$27.75

43

PIN

13254-20010

$4.28

44

SCREW

02112-05127

$1.97

45

GASKET

13523-46110

$2.70

46

SCREW

09125-05122

$2.06

47

HOSE This part replaces 13683-19B80.

13683-19B81

$17.37

48

E RING

13415-38300

$2.08

49

SCREW, PILOT (1 3/4)

13279-47070

$13.36

50

.SPRING (NT:45)

13268-47070

$4.34

51

O-RING This part replaces 13295-29900.

13295-29901

$4.34

52

WASHER

13291-29900

$1.98

53

RING

13331-33E00

Unavailable

54

SCREW

13602-48E00

Unavailable

55

BRACKET, NO.1

13627-48E00

Unavailable

56

BRACKET, NO.2

13627-48E10

Unavailable

57

HOSE ASSY (5X8X125)

13683-48E10

Unavailable

58

HOSE ASSY | E3,E28 This part replaces 13683-48E00.

13683-48E01

$40.80

58

HOSE ASSY (5X8X125) | E33

13683-48E10

Unavailable

59

CABLE, ID SYNCRO

13641-48E00

$21.09

60

CABLE, THROTTLE RETURN, F-R

13642-48E00

$26.52

61

HOSE (5.3X10.5X450) | E33

13684-02F10

Unavailable

62

.NIPPLE | E33

13685-48B00

$12.15

63

HOSE,5X10X600 | E33 L:600!500 This part replaces 09355-50105-600.

44421-13ER0

$10.06

64

VALVE, AIR VENT | E33

13590-48E00

Unavailable

65

BOLT, CLAMP | E33 This part replaces 01550-06123.

01550-0612A

$1.97
