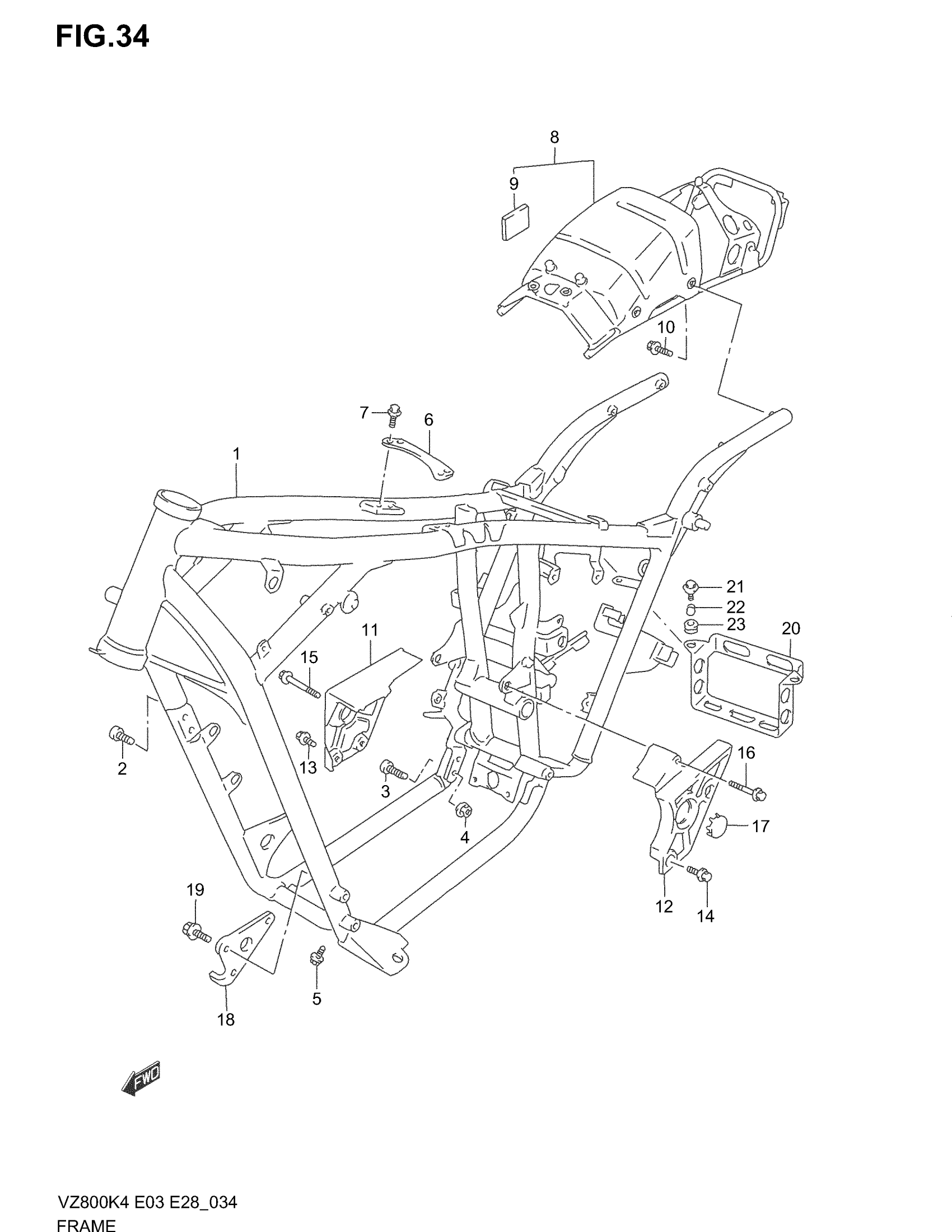

Suzuki VZ800 (2004) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-48EA0-019

Unavailable

2

BOLT This part replaces 07130-10253.

07130-1025B

$5.27

3

BOLT This part replaces 07130-10353.

07130-1035B

$5.18

4

NUT This part replaces 08319-31103.

08319-3110A

$2.73

5

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

6

PLATE, FRAME BODY

41999-48E00

Unavailable

7

BOLT

09106-08140

$6.38

8

BRACE, REAR FRAME | Includes Item(s) 9

41501-48E00

Unavailable

9

CUSHION

13719-84150

$3.37

10

BOLT This part replaces 01551-08203.

01551-0820A

$2.90

11

COVER, PIVOT RH

41961-48E10

Unavailable

12

COVER, PIVOT LH

41962-48E10

Unavailable

13

BOLT, PIVOT COVER DUMMY

09106-08128

$3.23

14

BOLT, PIVOT COVER

41964-48E00

Unavailable

15

BOLT, PIVOT COVER FRONT RH

09106-08128

$3.23

16

BOLT, PIVOT COVER UPPER LH

41965-48E00

Unavailable

17

CAP, PIVOT COVER

61222-38A01

$13.35

18

PLATE, ENGINE MOUNT LH

41921-48E00

Unavailable

19

BOLT This part replaces 01580-10303.

01580-1030A

$4.60

20

HOLDER, BATTERY

41540-48E00

Unavailable

21

BOLT (6X16)

09116-06006

$1.86

22

SPACER

09180-06261

$1.91

23

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97
