Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-38A11

$192.30

2

GUIDE, CAM CHAIN

12771-38A02

$63.30

3

TENSIONER, FRONT CAM CHAIN

12811-38A01

$63.30

4

BOLT (6X26)

09100-06129

$2.38

5

WASHER

08211-06182

$1.92

6

SPACER

09180-06148

Unavailable

7

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

$150.35

8

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$3.05

9

BOLT This part replaces 07130-06453.

07130-0645B

$4.10

10

TENSIONER, REAR CAM CHAIN

12816-38A01

$60.97

11

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

$156.07

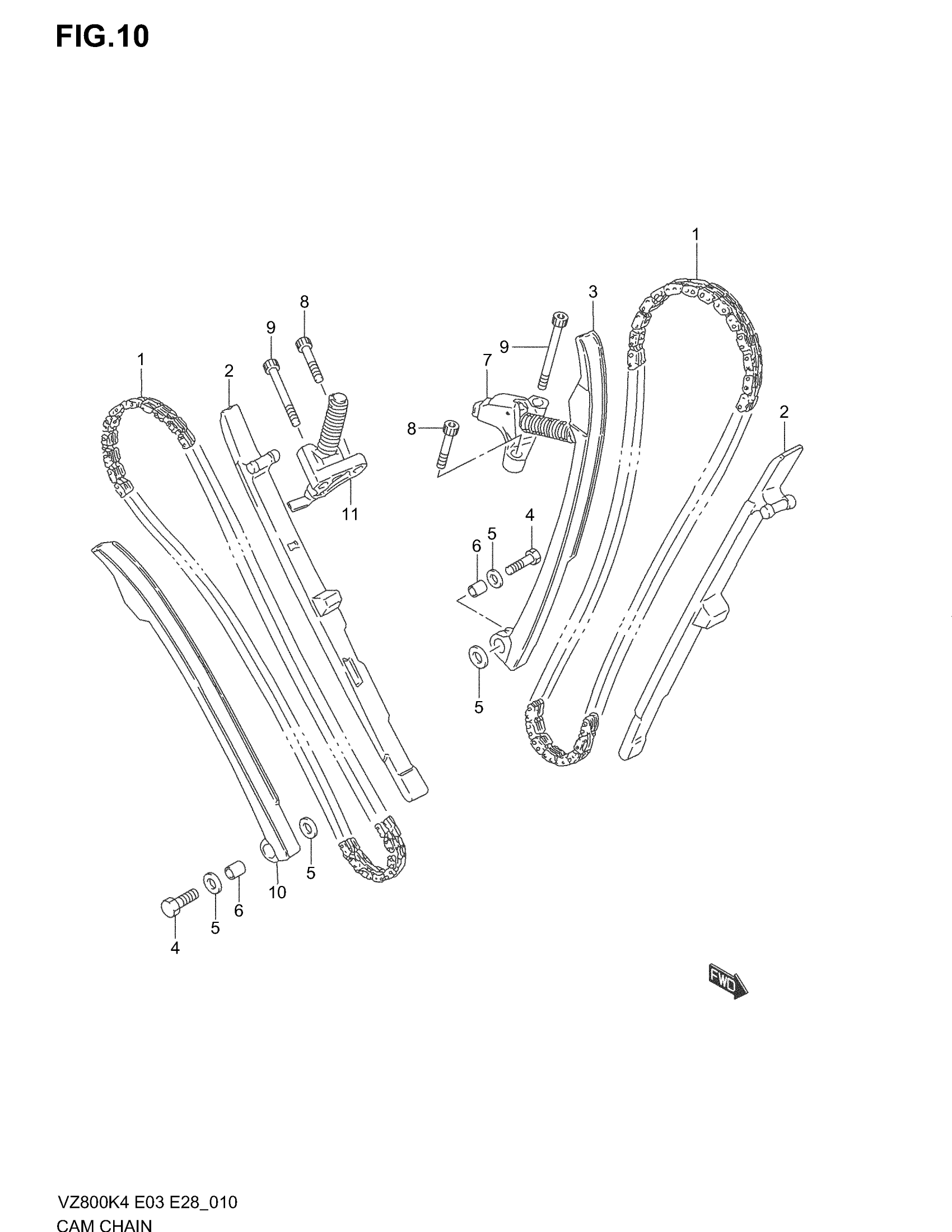

Suzuki VZ800 (2004) CAM CHAIN Diagram
