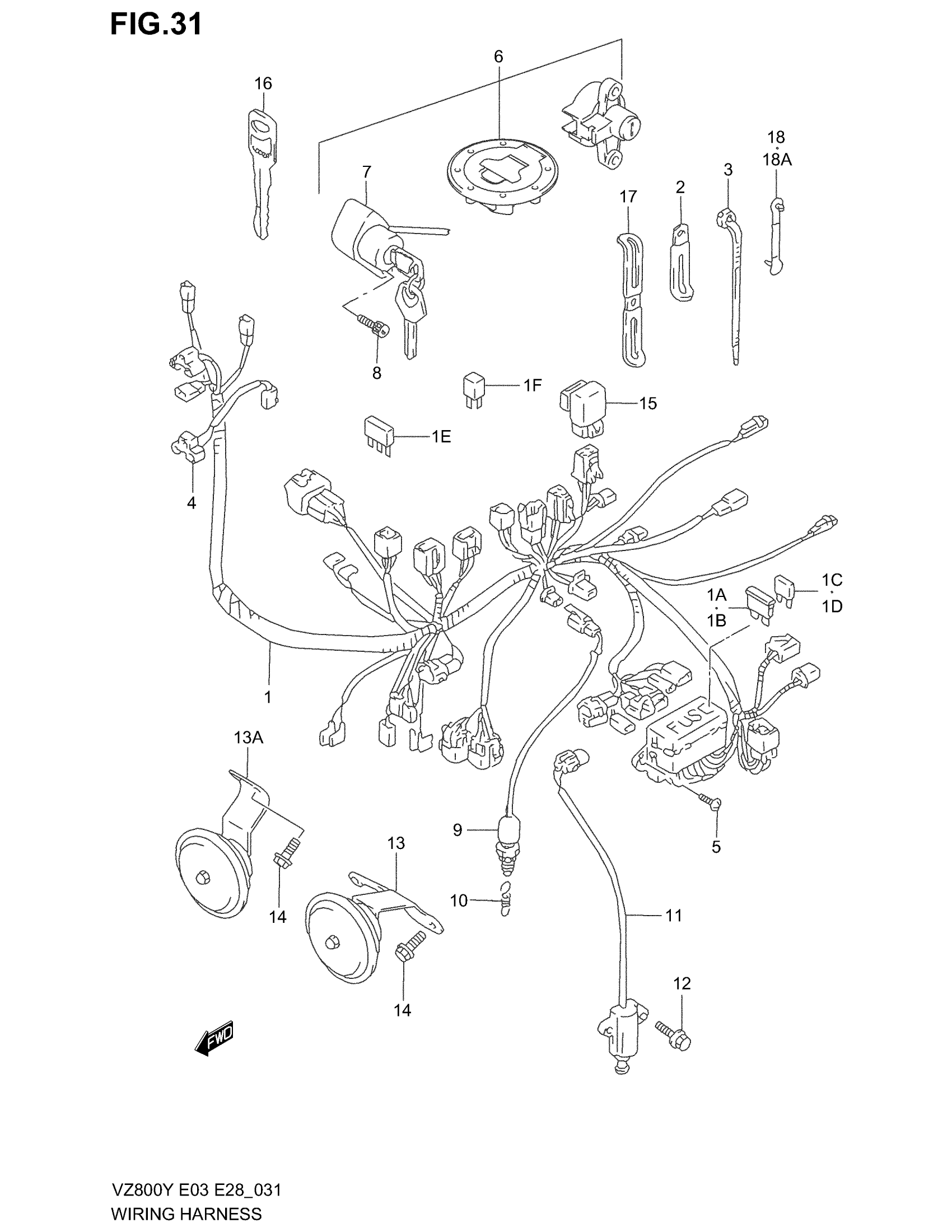

Suzuki VZ800 (2003) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL V

36610-48E11

Unavailable

1

HARNESS, WIRING | MODEL W This part replaces 36610-48E20.

36610-48E22

$559.05

1

HARNESS, WIRING | MODEL X/Y/K1/K2/K3; Includes Item(s) 1A - 1F

36610-48E22

$559.05

1A

FUSE (10A) | MODEL V

09481-10101

$2.07

1B

FUSE (15A) | MODEL V

09481-15101

$2.53

1C

FUSE (10A) | MODEL W/X/Y/K1/K2/K3

09481-10501

$2.06

1D

FUSE (15A) | MODEL W/X/Y/K1/K2/K3

09481-15501

$2.02

1E

.DIODE | MODEL V,FOR SIDE STAND This part replaces 36611-38A00.

36611-38A10

$13.16

1F

DIODE | MODEL W/X/Y/K1/K2/K3,FOR IND

32800-16A00

$23.07

2

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

2

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

2

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

3

CLAMP (L:95)

09407-11401

$2.63

3

CLAMP (L:125)

09407-14403

$2.26

3

CLAMP (L:165)

09407-18402

$2.19

3

CLAMP (L:235)

09407-25401

$4.66

4

LEAD WIRE, HEADLAMP

36853-30500

$11.63

5

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

6

LOCK SET

37000-48830

Unavailable

6

LOCK SET | E33; Includes Item(s) 7

37000-48840

Unavailable

7

SWITCH ASSY, IGNITION This part replaces 37110-48E00.

37110-10F00

$90.61

8

BOLT | MODEL V/W This part replaces 07130-06163.

07130-0616B

$2.39

8

BOLT | MODEL X/Y/K1/K2/K3

09106-06078

$3.37

9

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

10

SPRING

09443-06046

$3.10

11

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

$69.30

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

13

HORN ASSY | MODEL V/W

38500-02F00

Unavailable

13A

HORN ASSY | MODEL X/Y/K1/K2/K3

38500-48E00

Unavailable

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

15

RELAY ASSY, SIDE STAND WARNING | MODEL V

38740-24X50

$45.20

16

KEY, BLANK | OPT This part replaces 37146-48E00.

37146-48E10

$25.27

17

CLAMP

36651-05301

Unavailable

18

CLAMP (L:63) | MODEL W

36651-48E00

$3.25

18A

CLAMP (L:33) | MODEL X/Y/K1/K2/K3

09407-03401

$3.07
