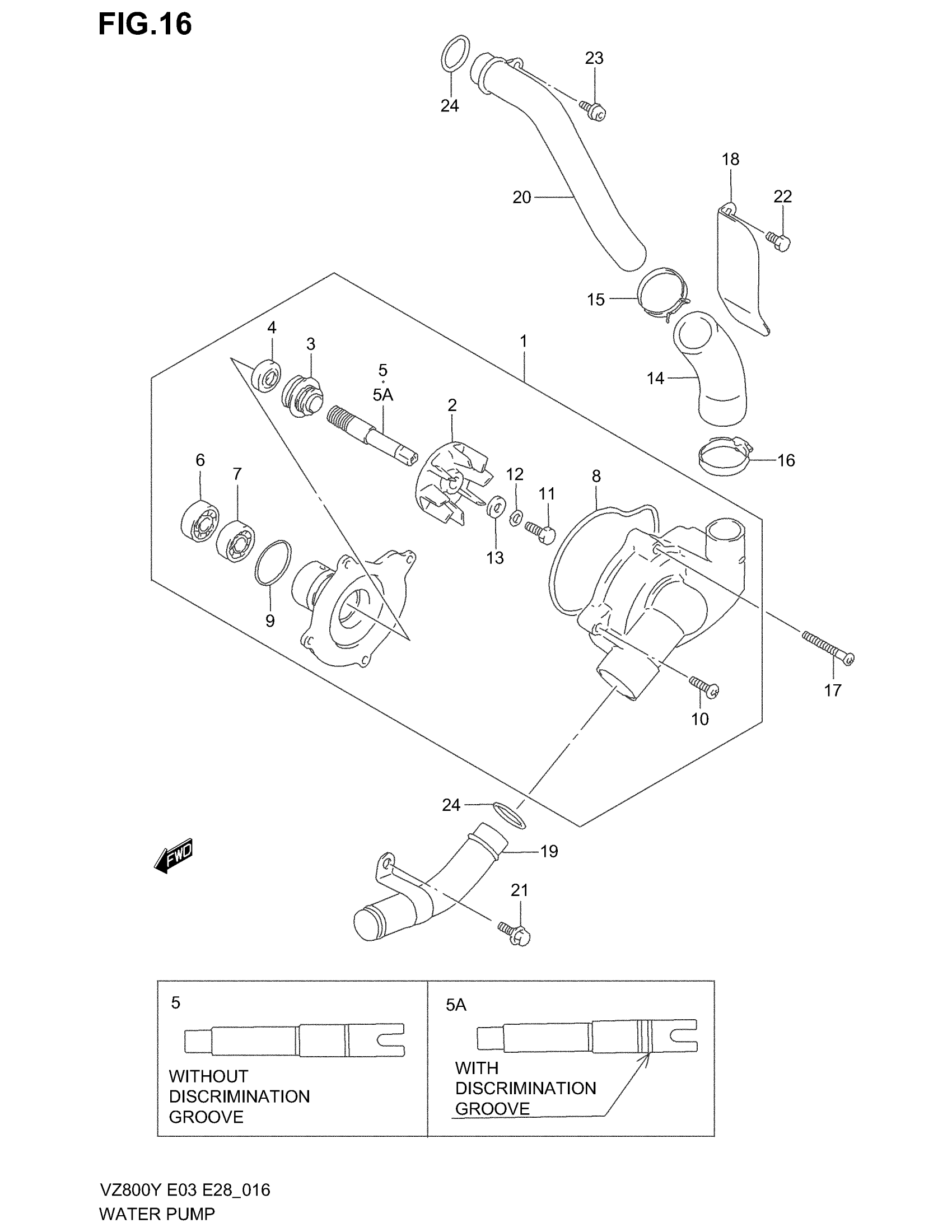

Suzuki VZ800 (2003) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 13 This part replaces 17400-48E00.

17400-48E01

$344.32

2

.IMPELLER | MODEL V This part replaces 17491-17E00.

17491-17E01

$26.78

2

IMPELLER | MODEL W/X/Y/K1/K2/K3

17491-17E01

$26.78

3

.SEAL,MECHANICAL | MODEL V This part replaces 17470-46A00.

17470-02F11

$29.22

3

.SEAL,MECHANICAL | MODEL W/X/Y/K1 This part replaces 17470-46A01.

17470-02F11

$29.22

3

.SEAL,MECHANICAL | MODEL K2/K3 This part replaces 17470-02F00.

17470-02F11

$29.22

4

.SEAL OIL (10X21X5)

09283-10004

$4.96

5

SHAFT | WITHOUT DISCRIMINATION GROOVE This part replaces 17511-48E00.

17511-48E01

Unavailable

5A

SHAFT | WITH DISCRIMINATION GROOVE

17511-48E01

Unavailable

6

BEARING (10X26X8)

09262-10014

$16.01

7

BEARING (12X28X8)

09262-12001

$18.47

8

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

9

.O-RING

17435-33400

$15.29

10

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

11

BOLT (6X13)

09100-06099

$2.00

12

LOCK WASHER

09164-06006

$2.61

13

GASKET

09168-06025

$2.92

14

HOSE, WATER PUMP OUTLET

17859-48E00

$15.00

15

CLIP This part replaces 09401-26404.

09401-26407

$4.62

16

CLAMP

09402-32511

$10.86

17

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

18

PLATE

17871-48E00

$7.05

19

PIPE, WATER PUMP INLET

17880-48E00

Unavailable

20

PIPE, WATER PUMP OUTLET

17890-48E00

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

23

SCREW

07120-06127

$3.85

24

O RING (D:2.7,ID:21.4)

09280-21015

$2.73
