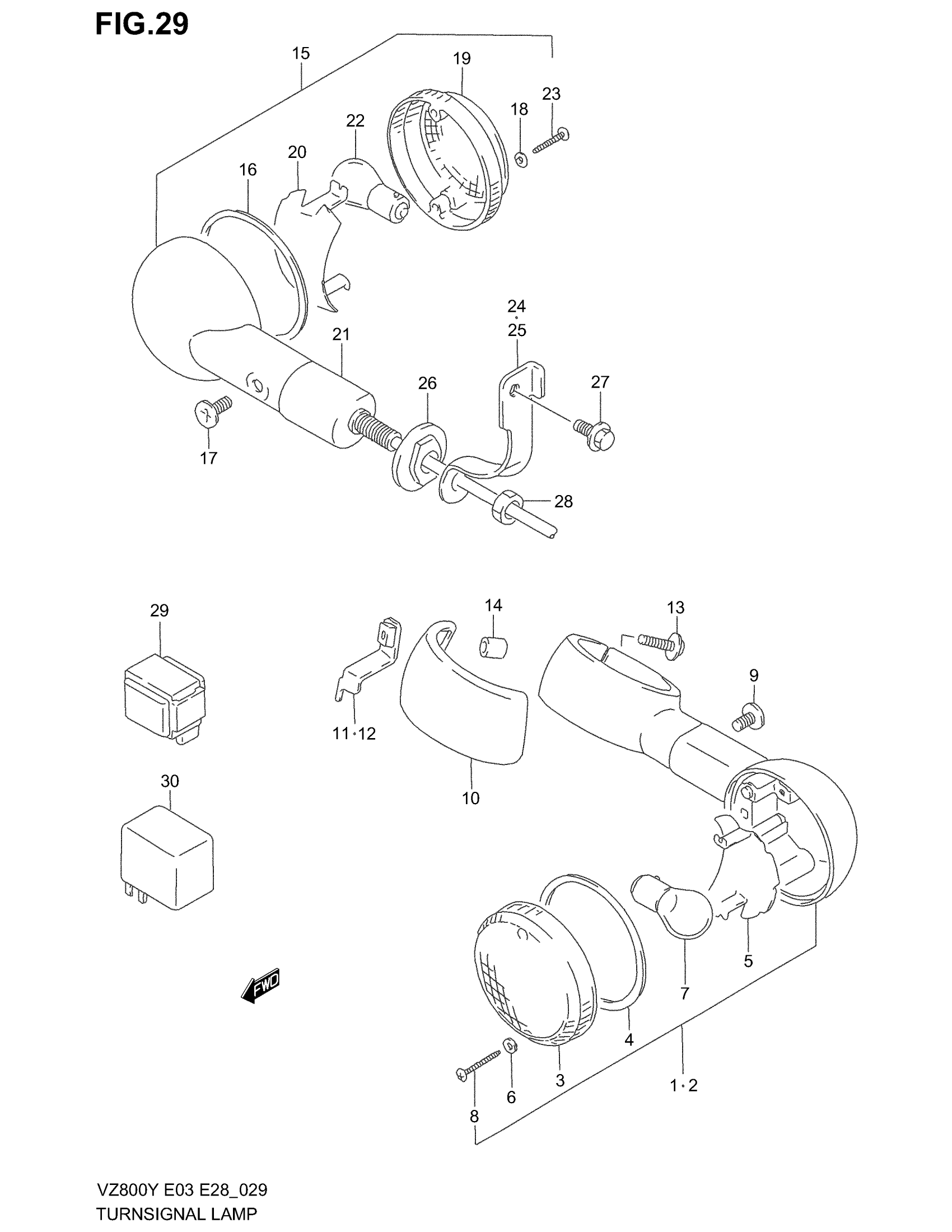

Suzuki VZ800 (2003) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-48E00

Unavailable

2

LAMP ASSY, FRONT TURNSIGNAL L | Includes Item(s) 3 - 9

35602-48E00

Unavailable

3

LENS

35612-38A30

$17.90

4

GASKET

35613-38A00

$9.74

5

REFLECTOR

35624-38A20

$35.80

6

GASKET

35627-43010

$2.28

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

8

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

9

SCREW (4X14)

35623-38A01

$5.05

10

COVER, FRONT TURNSIGNAL STAY

35645-48E00

Unavailable

11

BRACKET, FRONT TURNSIGNAL R

35671-48E10

Unavailable

12

BRACKET, FRONT TURNSIGNAL L

35681-48E10

Unavailable

13

SCREW

09136-06126

$3.15

14

SPACER

09180-06121

$1.98

15

LAMP ASSY, REAR TURNSIGNAL | Includes Item(s) 16 - 23

35603-33D30

$136.87

16

GASKET

35613-38A00

$9.74

17

SCREW (4X14)

35623-38A01

$5.05

18

GASKET

35627-43010

$2.28

19

LENS

35652-38A21

$13.67

20

REFLECTOR

35654-38A20

Unavailable

21

STAY, TURNSIGNAL REAR

35659-45C10

$35.44

22

BULB (12V,21W)

09471-12045

$3.27

23

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

24

REINF, REAR TURNSIGNAL R

35608-48E01

Unavailable

25

REINF, REAR TURNSIGNAL L

35609-48E01

Unavailable

26

SPACER, REAR TURNSIGNAL

35695-17C00

$4.03

27

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

28

NUT This part replaces 08310-00103.

08310-0010A

$1.84

29

RELAY ASSY | MODEL V This part replaces 38610-26E00.

38610-26E01

$58.97

30

RELAY ASSY,TURNSIGNAL LAMP | MODEL W/X/Y/K1/K2/K3 This part replaces 38610-03F00.

38610-03F01

$87.08
