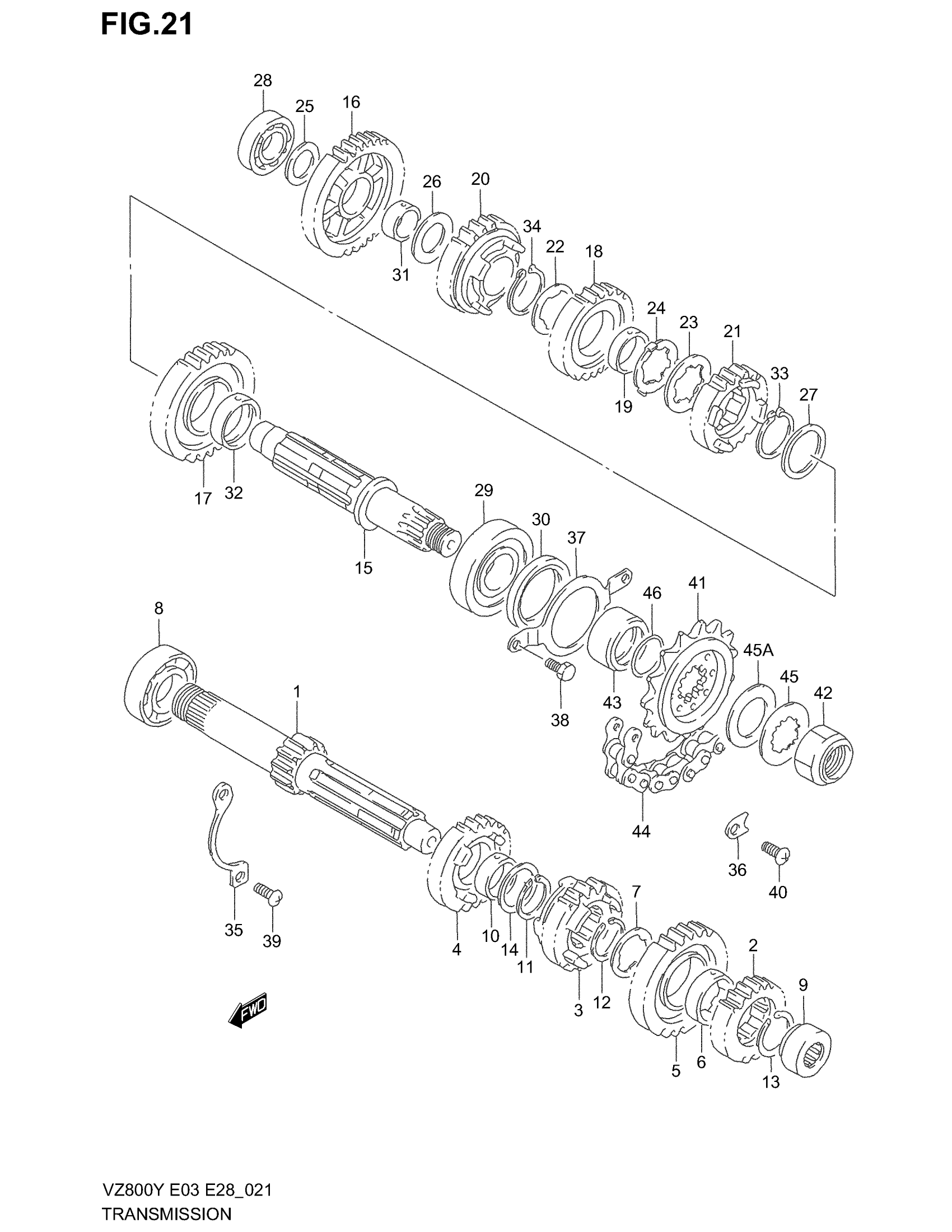

Suzuki VZ800 (2003) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:13)

24121-48E51

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-44B20

Unavailable

3

GEAR, 3RD DRIVE (NT:20) | MODEL V

24231-44B01

Unavailable

3

GEAR, 3RD DRIVE (NT:20) | MODEL W/X/Y/K1/K2/K3

24231-44B02

Unavailable

4

GEAR, 4TH DRIVE (NT:23)

24241-44B01

Unavailable

5

GEAR, 5TH DRIVE (NT:25)

24251-44B10

Unavailable

6

BUSH,6TH DRIVE GEAR | MODEL V/W/X/Y/K1 This part replaces 24252-38A00.

24252-38A10

Unavailable

6

BUSH,6TH DRIVE GEAR | MODEL K2/K3

24252-38A10

Unavailable

7

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

8

BEARING, CNTR RH | 25X62X17

09262-25080

$38.77

9

BEARING, CNTR LH | 20X33X16

09263-20084

Unavailable

10

BUSH, 4TH DRIVE GEAR | MODEL V/W/X/Y/K1 This part replaces 09300-25023.

24252-19F00

$17.12

10

BUSH, 4TH DRIVE | MODEL K2/K3

24252-19F00

$17.12

11

SNAP RING

09380-25003

$3.04

12

SNAP RING

09380-25003

$3.04

13

CIRCLIP, 2ND

09380-25013

$4.17

14

WASHER, 4TH

08211-25351

$3.72

15

NO DESCRIPTION AVAILABLE | MODEL V/W/X/Y/K1 This part replaces 24130-48E01.

24130-48810

Unavailable

15

SHAFT, DRIVE | MODEL K3

24130-48E02

Unavailable

16

GEAR, 1ST DRIVEN (NT:32)

24311-44B10

Unavailable

17

GEAR, 2ND DRIVEN (NT:30)

24321-44B20

Unavailable

18

GEAR, 3RD DRIVEN (NT:24) | MODEL V

24331-44B00

Unavailable

18

GEAR, 3RD DRIVEN (NT:24) | MODEL W/X/Y/K1/K2/K3

24331-44B01

Unavailable

19

BUSH, 3RD DRIVEN

24332-27A00

Unavailable

20

GEAR, 4TH DRIVEN (NT:22) | MODEL V This part replaces 24341-44B01.

24341-44B02

Unavailable

20

GEAR, 4TH DRIVEN (NT:22) | MODEL W/X/Y/K1/K2/K3

24341-44B02

Unavailable

21

GEAR, 5TH DRIVEN (NT:20) | MODEL V

24351-44B01

Unavailable

21

GEAR, 5TH DRIVEN (NT:20) | MODEL W/X/Y/K1/K2/K3

24351-44B10

Unavailable

22

WASHER, 3RD DRIVEN RH | 28.1X38X1

09167-28001

$4.60

23

WASHER, 3RD DRIVEN LH | 28.1X43X1.5

09167-28002

$4.77

24

WASHER, 3RD DRIVEN LH | 28.1X40X1

09169-28001

$3.85

25

WASHER, 1ST DRIVEN RH | 20X32X1

09181-20223

$2.92

26

WASHER, 1ST DRIVEN LH | 22X34X1

09181-22223

$3.12

27

WASHER, 2ND DRIVEN | 28X36X1

09181-28167

Unavailable

28

BEARING, RH (20X42X12)

09262-20059

$25.60

29

BEARING (25X62X17) This part replaces 09262-25083.

09262-25125

$59.09

30

SEAL, DRIVE SHAFT OIL | 36X50X6

09283-36003

$12.61

31

BUSH, 1ST DRIVEN | MODEL V/W/X/Y/K1/K2 This part replaces 09300-22005.

24312-02F00

$28.15

31

BUSH, 1ST DRIVEN | MODEL K2/K3

24312-02F00

$28.15

32

BUSH, 2ND DRIVEN

09300-28002

$18.70

33

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

34

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

35

RETAINER, CNTR SHAFT

24741-38A00

Unavailable

36

RETAINER, CNTR LH

24742-44B00

$4.10

37

RETAINER, DRIVE SHAFT

24751-48E00

Unavailable

38

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

39

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

40

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

41

SPROCKET, ENGINE (NT:15)

27510-17C10

$88.98

42

NUT

27521-48E00

$26.73

43

SPACER

27531-24B00

$31.72

44

CHAIN,DRV(116LE This part replaces 27600-19C00-116.

27600-40F20-116

Unavailable

45

WASHER (25.3X41.6X1)

09167-25019

$2.19

45A

WASHER (25.2X42X3.2)

09160-25070

$4.77

46

O RING (D:2.4,ID:23.7)

09280-24010

$5.64
