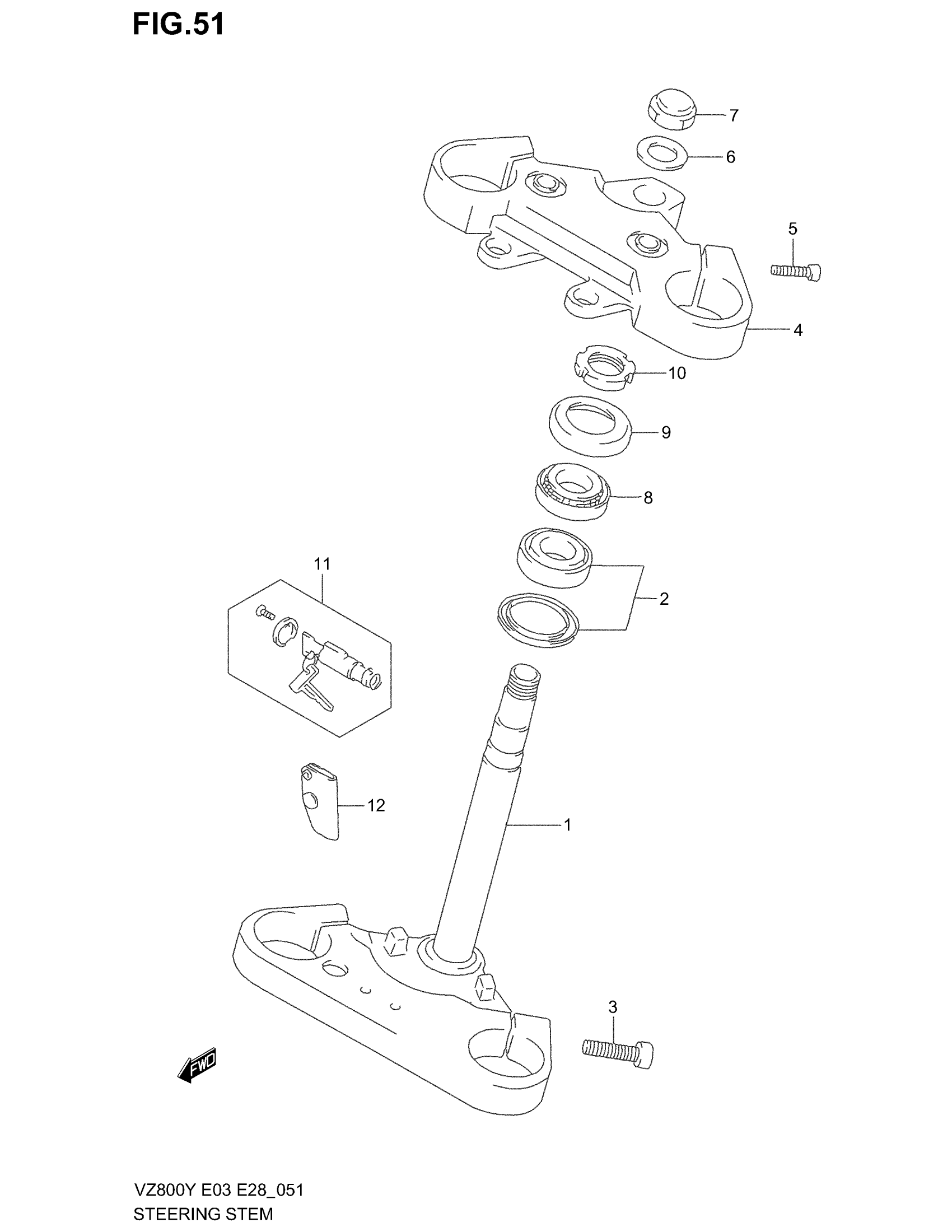

Suzuki VZ800 (2003) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-48E00

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT

51451-48E10

Unavailable

4

HEAD, STEERING STEM

51311-48E00

Unavailable

5

BOLT

51147-48E10

$6.70

6

WASHER

51356-10D03

$7.50

7

NUT

51353-24B00

$30.67

8

BEARING (25X47X15)

09265-25019

$56.53

9

SEAL, STEERING UPPER DUST

51643-49002

$12.32

10

NUT, STEERING STEM

51631-28000

$17.37

11

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

12

CASE, STEERING KEY

51920-48E00

$16.13
