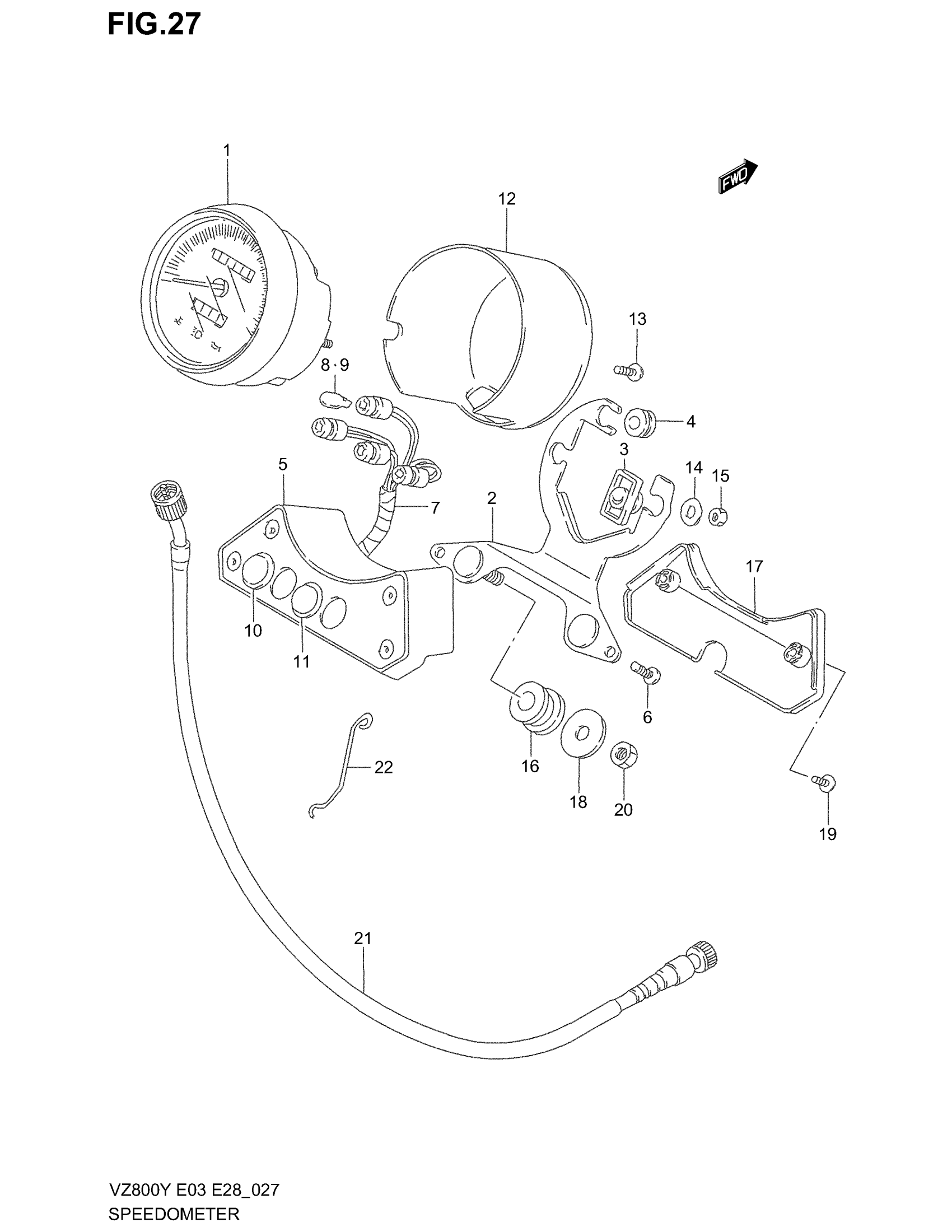

Suzuki VZ800 (2003) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL V/W/X/Y/K1

34110-48E20

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL K2/K3

34110-48E80

Unavailable

1

SPEEDOMETER (KILO) | MODEL V/W/X/Y/K1 E28

34110-48E10

Unavailable

1

SPEEDOMETER (KILO) | MODEL K2/K3 E28

34110-48E70

Unavailable

2

BRACKET | Includes Item(s) 3 - 4

34950-48E00

$54.75

3

CUSHION,DAMPER This part replaces 34191-25D00.

34191-25D01

$8.67

4

DAMPER

34191-26D10

Unavailable

5

CASE ASSY, PILOT

34960-48E00

Unavailable

6

SCREW (4X14)

34184-12B00

$2.45

7

CORD ASSY

34170-48E00

Unavailable

8

.BULB (12V1.7W)

09471-12108

$3.42

9

BULB (12V,3.4W)

09471-12028

$1.99

10

LENS, NEUTRAL (GREEN) | MODEL V/W/X/Y/K1

36321-25D00

Unavailable

10

LENS, TURN (GREEN) | MODEL K2/K3 This part replaces 36321-48E00.

36341-48E00

Unavailable

11

LENS, TURN (ORANGE) | MODEL V/W/X/Y/K1

36341-25D00

$7.23

11

LENS, TURN (GREEN) | MODEL K2/K3

36341-48E00

Unavailable

11

LENS, TURN (GREEN) | MODEL V/W/X/Y/K1 E28

36321-25D00

Unavailable

11

LENS, TURN (GREEN) | MODEL K2/K3 E28

36341-48E00

Unavailable

12

COVER, UNDER

34111-25D00

$72.00

13

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

14

WASHER (5.2X16X1)

09160-05013

$1.49

15

NUT

08310-00057

$1.84

16

CUSHION, METER BRACKET

34956-31001

$4.37

17

COVER, PILOT BOX

36383-48E00

Unavailable

18

WASHER, EXHAUST SUPPORT | MODEL V This part replaces 09160-08002.

09160-08135

$2.35

18

WASHER (8.5X28X1.6) | MODEL W/X/Y/K1/K2/K3

09160-08136

$2.50

19

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

20

NUT This part replaces 08310-00083.

08310-0008A

$1.84

21

CABLE ASSY,SPEE This part replaces 34910-48E01.

34910-48E02

$108.08

22

GUIDE, SPEEDOMETER CABLE

34938-48E10

Unavailable
