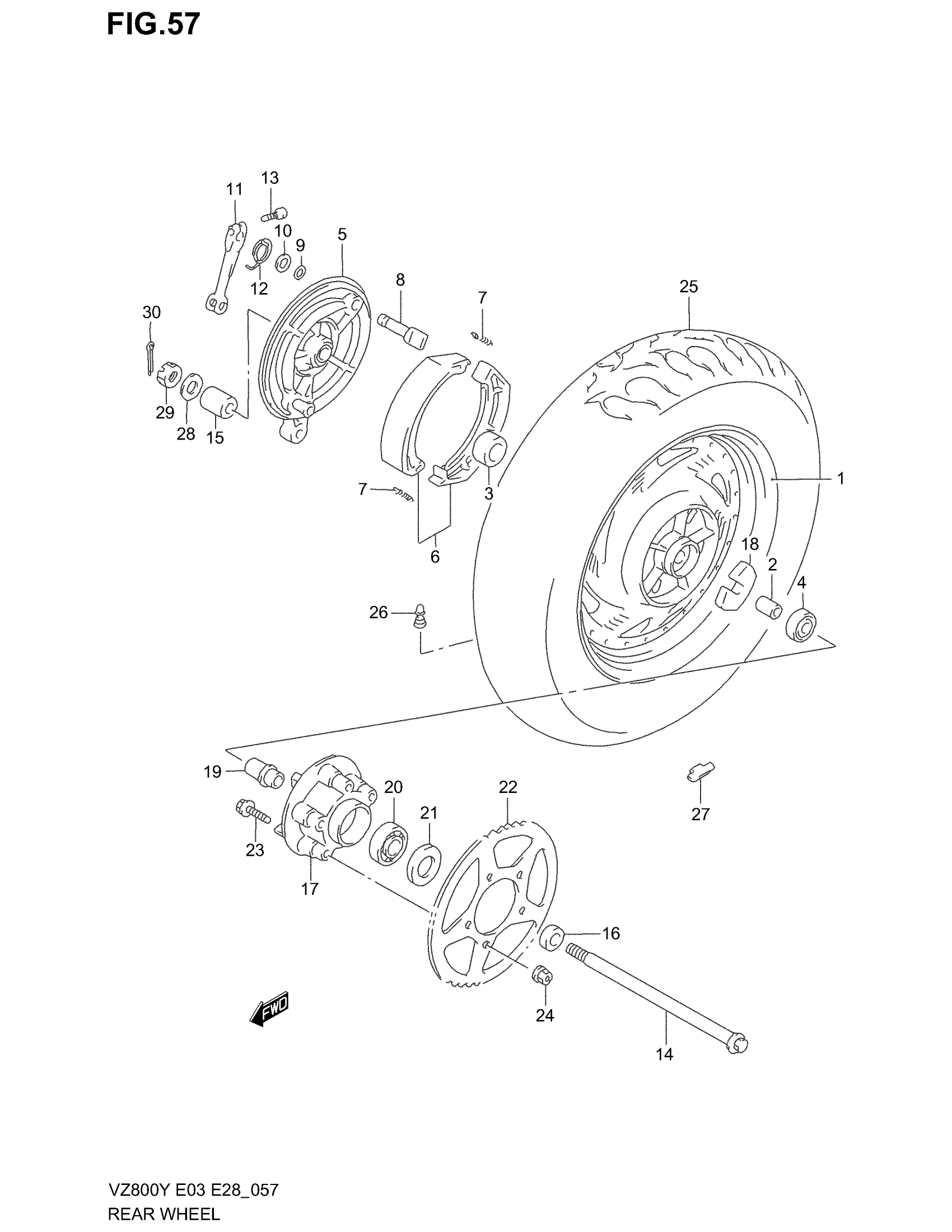

Suzuki VZ800 (2003) REAR WHEEL Diagram

WHEEL, REAR (15M/CXMT3.50) (SILVER)

64150-48E00-12R

Unavailable

SPACER (17.5X25X70)

09180-17069

$23.93

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

BEARING, LH

08143-63037

$22.58

PANEL, REAR BRAKE ANCHOR

64210-38A21

$270.62

SHOE SET, BRAKE

64400-38810

$55.67

SPRING, BRAKE SHOE

55420-30000

$4.48

CAM, REAR BRAKE

64441-38A20

$30.75

O RING (D:1.9,ID:14.5)

09280-15003

$1.76

WASHER (15.5X24X1.6)

09160-15048

$2.56

LEVER, REAR BRAKE CAM

64451-38A01

$57.67

SPRING

09448-33006

$9.23

BOLT

01570-06257

$3.03

AXLE, REAR

64711-24B10

Unavailable

SPACER, RH (17X33X35.30)

09180-17083

$17.18

SPACER, AXLE LH

64751-19C00

$15.42

DRUM, SPROCKET MOUNTING

64611-17C01

Unavailable

ABSORBER, REAR HUB SHOCK

64651-32C00

$12.17

RETAINER, DRUM

64733-10D00

$32.43

BEARING (25X62X17)

09262-25073

$25.92

SEAL,OIL (35X62X8)

09285-35001

$10.19

SPROCKET, REAR (NT:48)

64511-26E00

Unavailable

BOLT (10X42)

09119-10037

$4.32

NUT

08319-31107

$2.73

TIRE, REAR (150/90-15M/C 74H) (DUNLOP)

65110-48E10

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

$5.82

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

$5.50

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

$6.42

WASHER

09160-16031

$2.86

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.79

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
