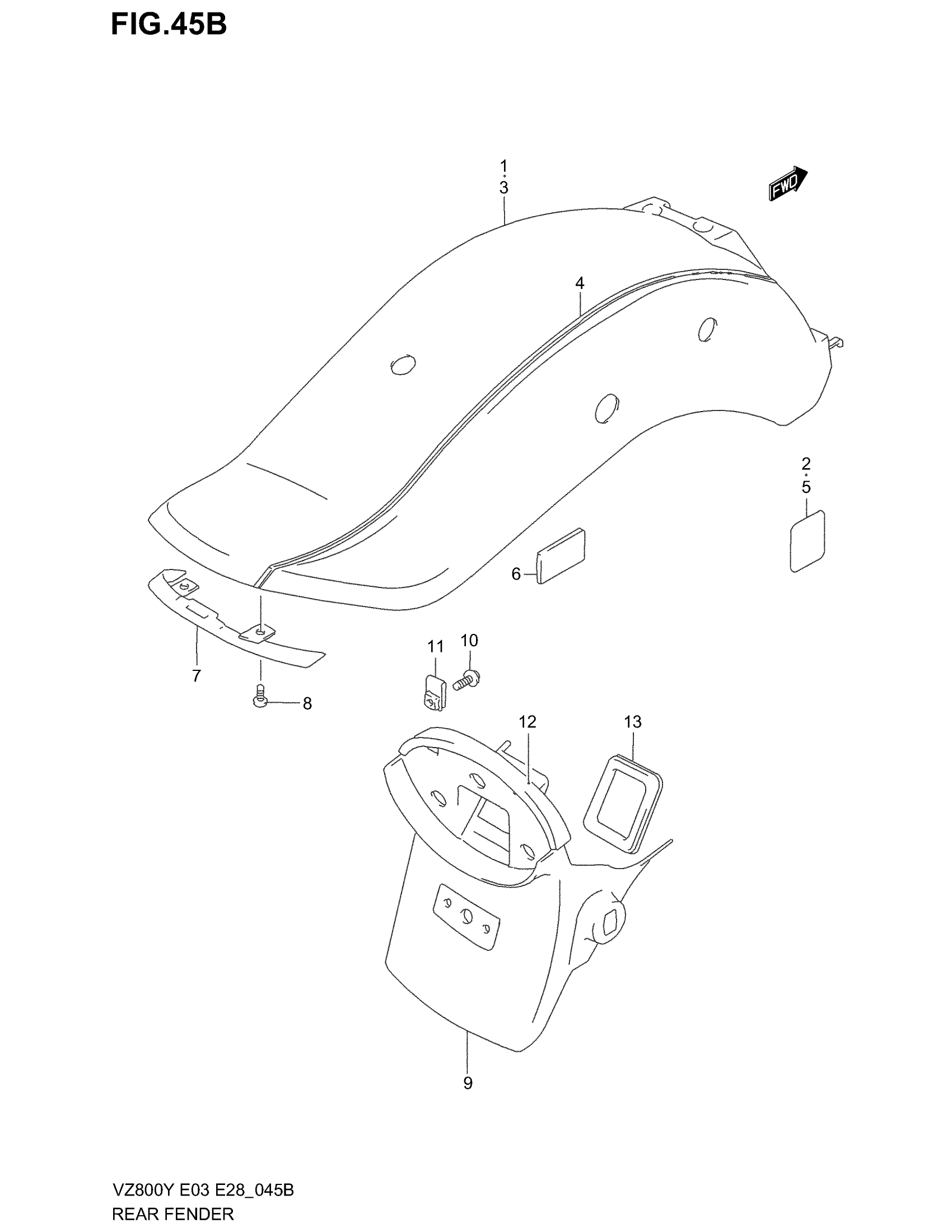

Suzuki VZ800 (2003) REAR FENDER (MODEL Y) Diagram

#

Description
Price

1

FENDER, REAR (BLACK) | Includes Item(s) 2

63110-48E50-33J

Unavailable

2

PAD, REAR FENDER

61544-94500

$1.68

3

FENDER, REAR

63110-48E80-BP8

Unavailable

3

FENDER, REAR | E28; Includes Item(s) 4 - 5

63110-48E80-M9U

Unavailable

4

TAPE SET, REAR FENDER

68170-48E30-BU3

Unavailable

4

TAPE SET, REAR FENDER | E28

68170-48E30-BU2

Unavailable

5

PAD, REAR FENDER

61544-94500

$1.68

6

CUSHION

09320-13015

$2.85

7

COVER, REAR FENDER REAR

63112-48E00

Unavailable

8

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

9

EXTENSION, REAR FENDER

63311-48E00

Unavailable

10

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

11

NUT, REAR FENDER EXTENTION

47153-19C01

$7.95

12

CUSHION, REAR FENDER EXTENSION

63312-48E00

Unavailable

13

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17
