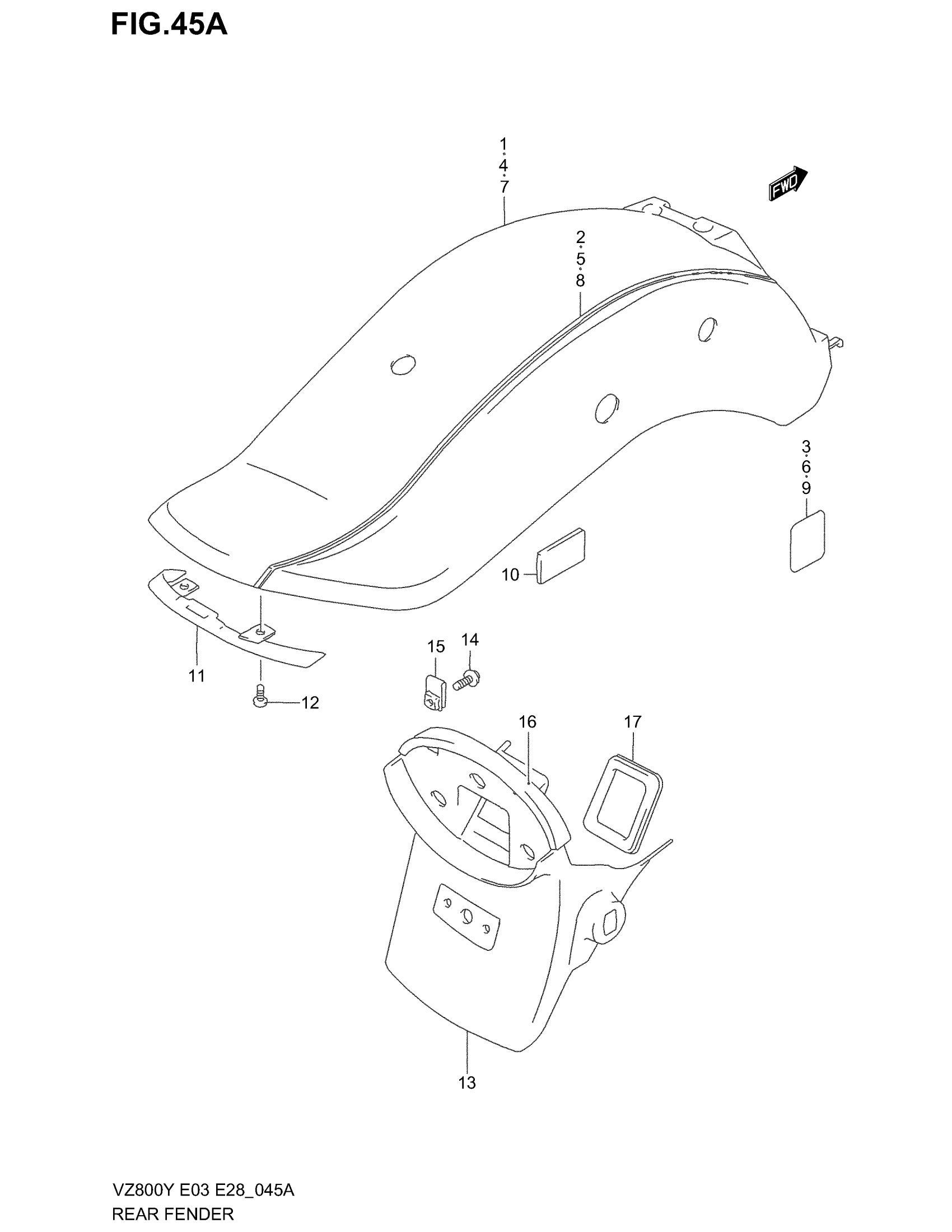

Suzuki VZ800 (2003) REAR FENDER (MODEL W/X) Diagram

#

Description
Price

1

FENDER, REAR | MODEL W; Includes Item(s) 2 - 3

63110-48E30-J8K

Unavailable

2

TAPE SET, REAR FENDER | MODEL W FOR J8K

68170-48E10-J9G

Unavailable

3

PAD, REAR FENDER

61544-94500

$1.68

4

FENDER, REAR | MODEL W; Includes Item(s) 5 - 6

63110-48E40-J4M

Unavailable

5

TAPE SET, REAR FENDER | MODEL W FOR J4M

68170-48E20-J6F

Unavailable

6

PAD, REAR FENDER

61544-94500

$1.68

7

FENDER, REAR | MODEL X

63110-48E80-E9N

Unavailable

7

FENDER, REAR | MODEL X; Includes Item(s) 8 - 9

63110-48E80-G7U

Unavailable

8

TAPE SET, REAR FENDER | MODEL X FOR E9N

68170-48E30-H0G

Unavailable

8

TAPE SET, REAR FENDER | MODEL X FOR G7U

68170-48E30-M1Z

Unavailable

9

PAD, REAR FENDER

61544-94500

$1.68

10

CUSHION

09320-13015

$2.85

11

COVER, REAR FENDER REAR

63112-48E00

Unavailable

12

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

13

EXTENSION, REAR FENDER

63311-48E00

Unavailable

14

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

15

NUT, REAR FENDER EXTENTION

47153-19C01

$7.95

16

CUSHION, REAR FENDER EXTENSION

63312-48E00

Unavailable

17

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17
