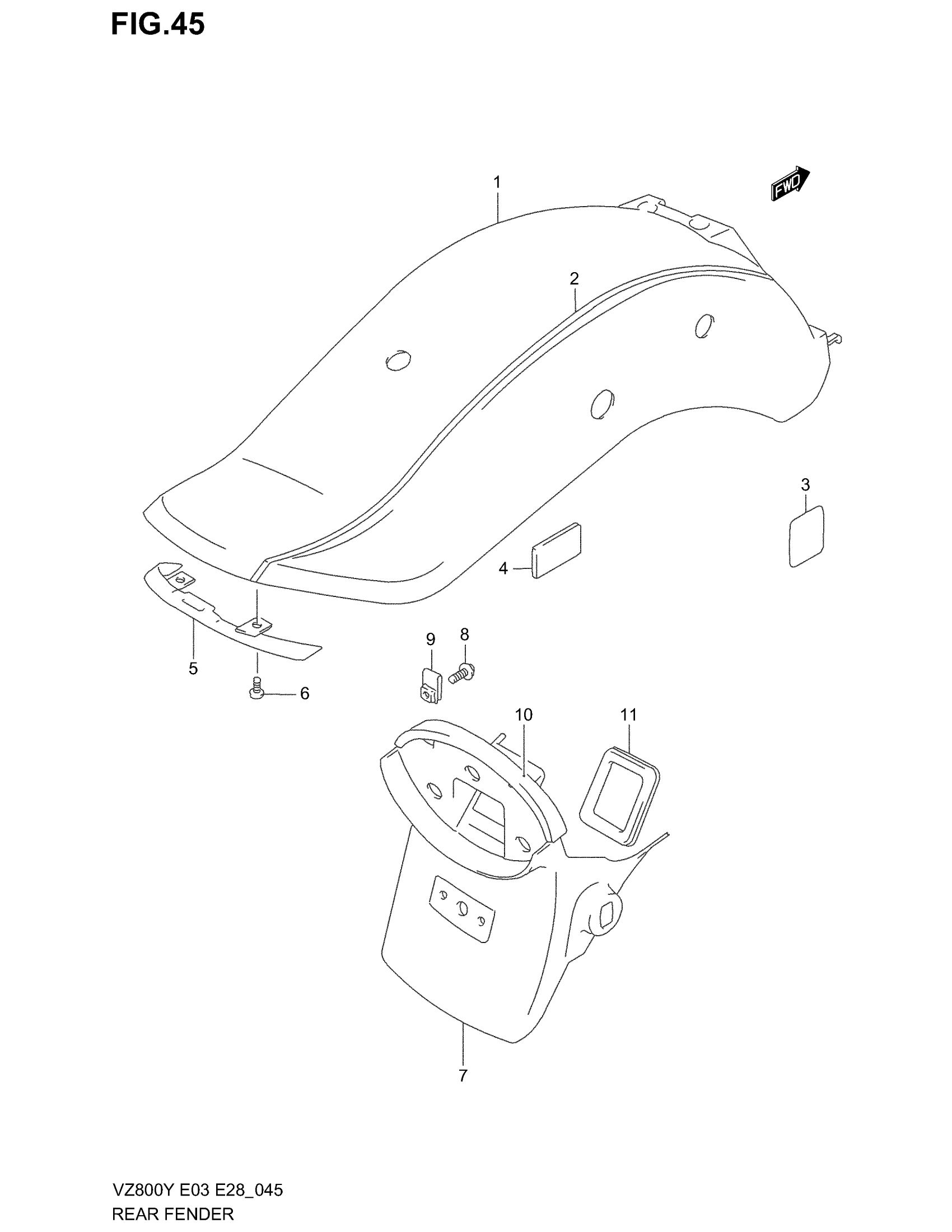

Suzuki VZ800 (2003) REAR FENDER (MODEL V) Diagram

#

Description
Price

1

FENDER, REAR

63110-48E20-E9N

Unavailable

1

FENDER, REAR | Includes Item(s) 2 - 3

63110-48E20-G9Y

Unavailable

2

TAPE SET, REAR FENDER | FOR E9N

68170-48E01-H0G

Unavailable

2

TAPE SET, REAR FENDER | FOR G9Y

68170-48E01-H0H

Unavailable

3

PAD, REAR FENDER

61544-94500

$1.68

4

CUSHION

09320-13015

$2.85

5

COVER, REAR FENDER REAR

63112-48E00

Unavailable

6

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

7

EXTENSION, REAR FENDER

63311-48E00

Unavailable

8

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

9

NUT, REAR FENDER EXTENTION

47153-19C01

$7.95

10

CUSHION, REAR FENDER EXTENSION

63312-48E00

Unavailable

11

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17
