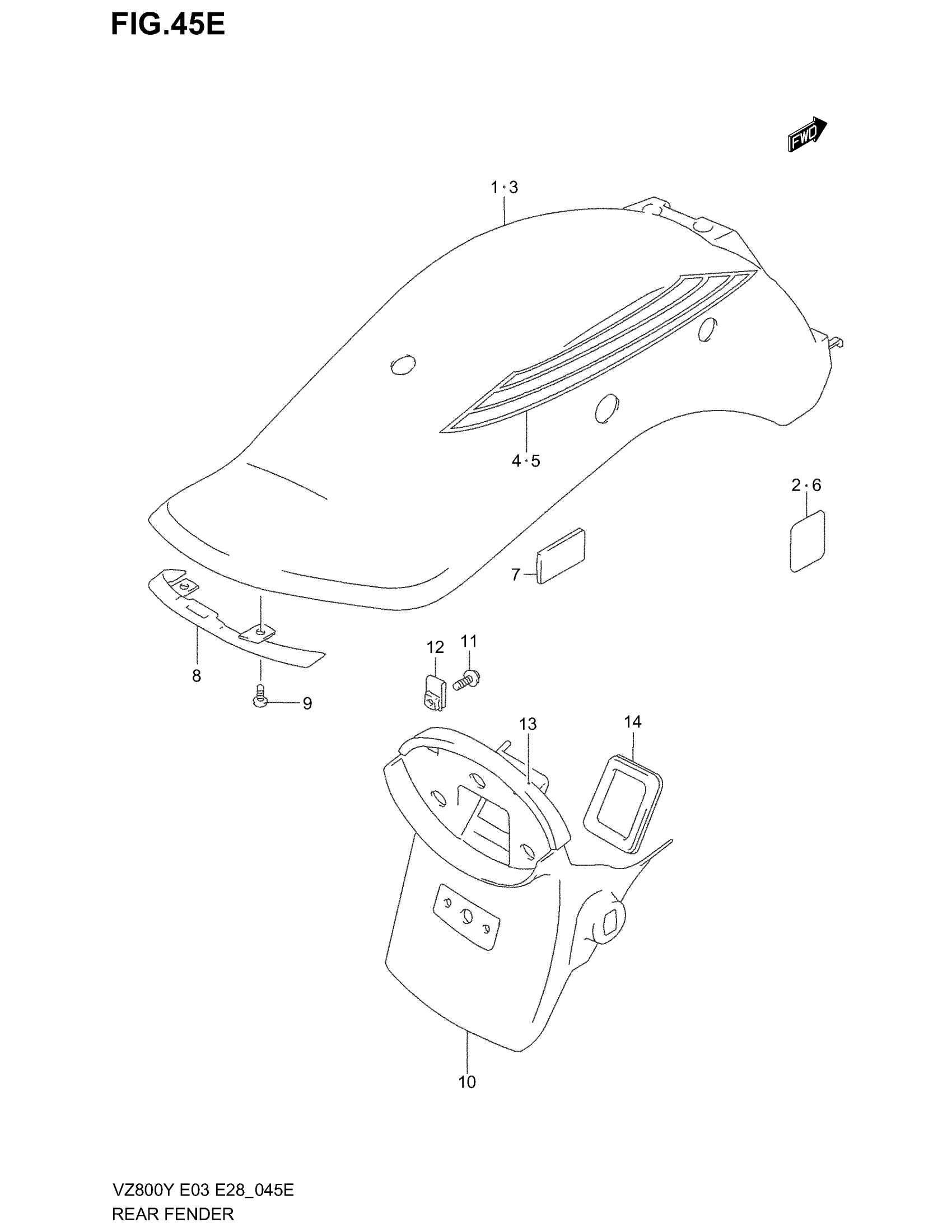

Suzuki VZ800 (2003) REAR FENDER (MODEL K3) Diagram

#

Description
Price

1

FENDER, REAR (BLACK) | FOR 33J; Includes Item(s) 2

63110-48E50-33J

Unavailable

2

PAD, REAR FENDER

61544-94500

$1.68

3

FENDER, REAR (SILVER) | FOR CY9; Includes Item(s) 4 - 6

63110-48EA0-YD8

Unavailable

4

TAPE, RH | FOR YD8

68175-48E00-CY9

Unavailable

5

TAPE, LH | FOR YD8

68176-48E00-CY9

Unavailable

6

PAD, REAR FENDER

61544-94500

$1.68

7

CUSHION

09320-13015

$2.85

8

COVER, REAR FENDER REAR

63112-48E00

Unavailable

9

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

10

EXTENSION, REAR FENDER

63311-48E00

Unavailable

11

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

12

NUT, REAR FENDER EXTENTION

47153-19C01

$7.95

13

CUSHION, REAR FENDER EXTENSION

63312-48E00

Unavailable

14

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17
