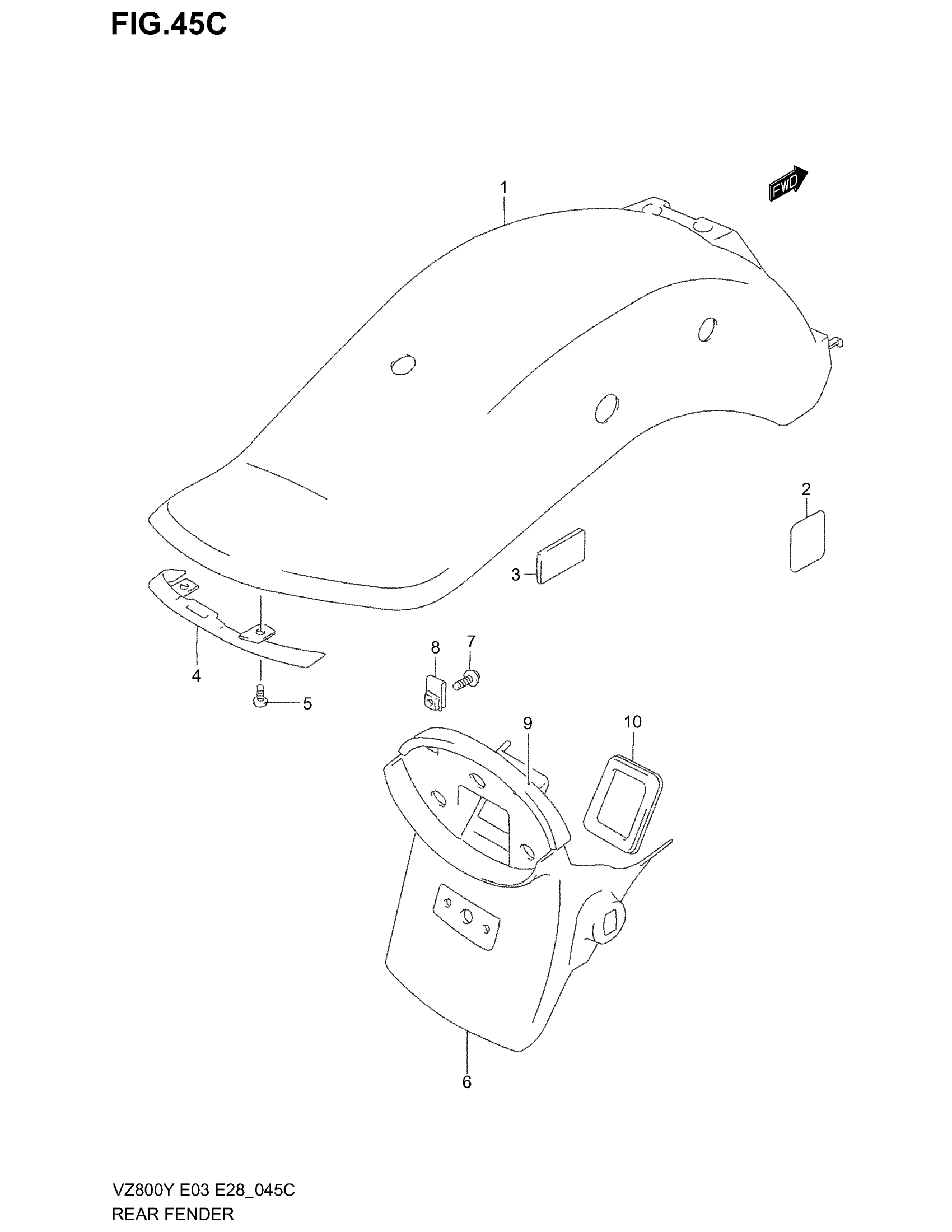

Suzuki VZ800 (2003) REAR FENDER (MODEL K1) Diagram

#

Description

Price

1

FENDER, REAR (BLACK) | E28

63110-48E50-33J

Unavailable

1

FENDER, REAR (BLUE)

63110-48E50-YC2

Unavailable

1

FENDER, REAR (BROWN) | E3,E33; Includes Item(s) 2

63110-48E50-YE2

Unavailable

2

PAD, REAR FENDER

61544-94500

$1.68

3

CUSHION

09320-13015

$2.85

4

COVER, REAR FENDER REAR

63112-48E00

Unavailable

5

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

6

EXTENSION, REAR FENDER

63311-48E00

Unavailable

7

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

8

NUT, REAR FENDER EXTENTION

47153-19C01

$7.95

9

CUSHION, REAR FENDER EXTENSION

63312-48E00

Unavailable

10

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17
