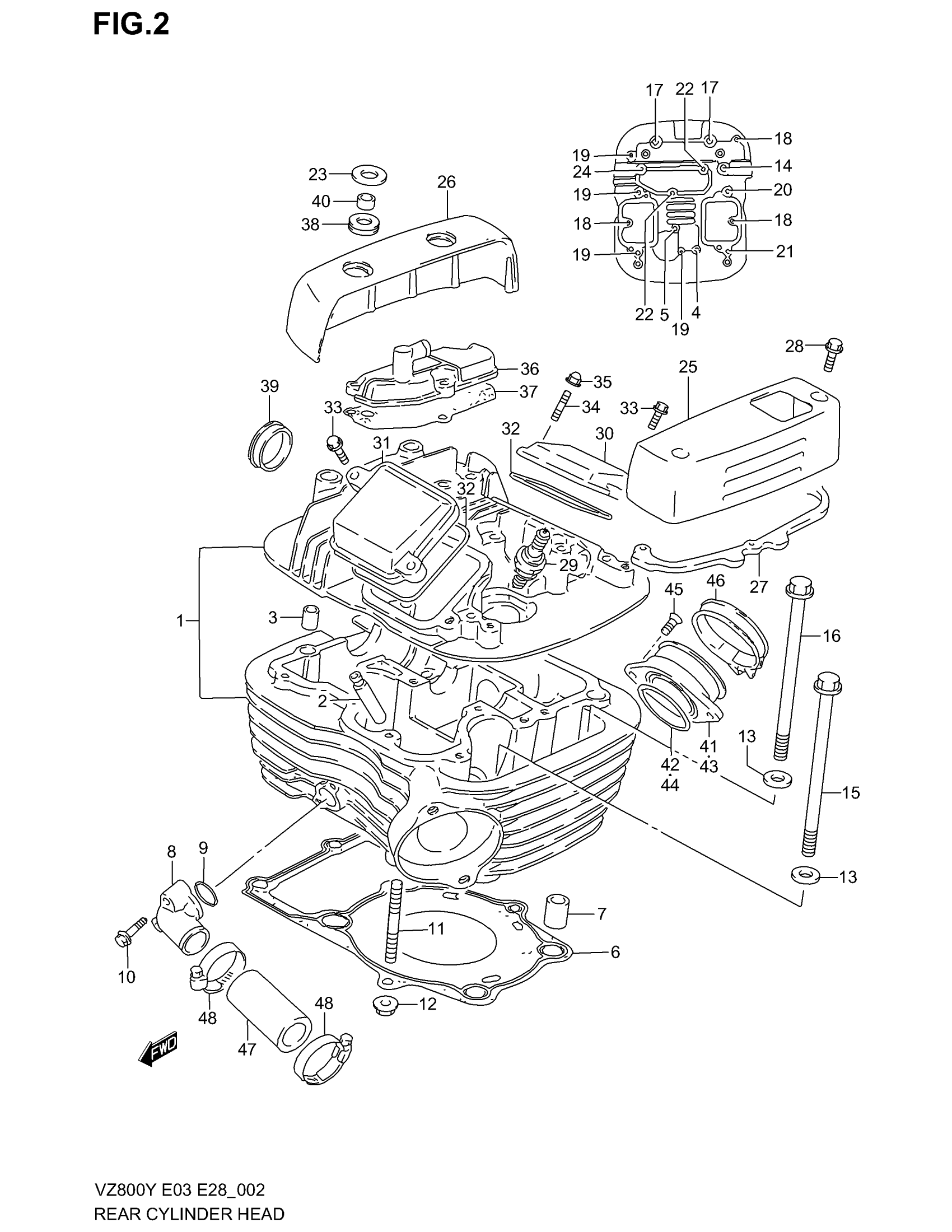

Suzuki VZ800 (2003) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 4

11103-48E60

Unavailable

2

PIN

09206-11004

$5.36

3

BOLT (6X50)

09103-06101

$2.16

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$40.73

6

GASKET

11142-45C00

$56.84

7

PIN

04211-13189

$2.19

8

UNION, CYLINDER HEAD WATER

11169-45C10

Unavailable

9

O RING (D:2.4,ID:17.8) | MODEL V This part replaces 09280-18010.

09280-18004

$5.18

9

O RING (D:2.4,ID:17.8) | MODEL W/X/Y/K1/K2/K3

09280-18004

$5.18

10

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

11

STUD BOLT (8X40)

09108-08144

$3.20

12

NUT (CHROME) | MODEL V/W/X

08316-10087

$2.26

12

NUT | MODEL Y/K1/K2/K3 This part replaces 08316-10083.

08316-1008B

$2.66

13

WASHER (10.5X22X2.3) | MODEL V/W/X/Y/K1/K2 This part replaces 09160-10060.

09160-10039

$2.26

13

WASHER | MODEL K3

09160-10039

$2.26

14

BOLT (8X140)

09103-08040

$5.52

15

BOLT (10X155)

09103-10133

$9.48

16

BOLT (10X165)

09103-10134

$9.48

17

BOLT (8X245)

09103-08180

Unavailable

18

BOLT | MODEL V

01550-06257

$2.30

18

BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01550-06253.

01550-0625A

$1.97

19

BOLT (CHROME) | MODEL V/W/X

01550-06307

$2.69

19

BOLT | MODEL Y/K1/K2/K3 This part replaces 01550-06303.

01550-0630A

$2.32

20

BOLT (CHROME) | MODEL V/W/X

07120-06307

$4.32

20

BOLT | MODEL Y/K1/K2/K3 This part replaces 07120-06303.

07120-0630B

$3.49

21

BOLT (CHROME) | MODEL V/W/X

01550-06407

$2.69

21

BOLT | MODEL Y/K1/K2/K3 This part replaces 01550-06403.

01550-0640A

$2.42

22

BOLT (6X55)

09103-06102

$2.10

23

WASHER | MODEL V This part replaces 09160-08098.

09160-08130

$2.03

23

WASHER | MODEL W/X/Y/K1/K2/K3

09160-08130

$2.03

24

BOLT (CHROME) | MODEL V/W/X

01550-06207

$2.30

24

BOLT | MODEL Y/K1/K2/K3 This part replaces 01550-06203.

01550-0620A

$1.97

25

CAP, HEAD COVER (R-L)

11173-48E00

Unavailable

26

CAP, HEAD COVER (F-L/R-R)

11171-48E00

Unavailable

27

CUSHION, REAR LEFT CAP

11273-38A01

$11.07

28

BOLT

09103-06192

Unavailable

29

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$3.03

29

SPARK PLUG (DENSO,X24EPR-U9)

09482-00335

$5.36

29

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.32

29

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.32

29

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$3.11

29

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

$5.28

30

CAP, INSPECTION INTAKE

11175-38A11

$23.07

31

CAP, INSPECTION EXHAUST

11176-38A11

$23.07

32

GASKET

11177-38A00

$4.48

33

BOLT | MODEL V

01547-06207

$2.01

33

..BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01547-06203.

01547-0620B

$2.45

34

BOLT,STUD | MODEL V This part replaces 01421-06168.

01421-0616A

$1.91

34

BOLT,STUD | MODEL W/X This part replaces 01421-06163.

01421-0616A

$1.91

34

STUD BOLT (6X16) | MODEL Y/K1/K2/K3

09108-06102

$4.08

35

NUT (CHROME) | MODEL V/W/X

08313-20067

$2.42

35

NUT | MODEL Y/K1/K2/K3 This part replaces 08313-20063.

08313-2006A

$1.97

36

COVER, BREATHER

11186-38A02

Unavailable

37

GASKET

11187-38A02-H17

$7.98

38

CUSHION

09320-13015

$2.85

39

PLUG

09241-30004

$6.60

40

BUSH

09301-08007

$6.80

41

PIPE, INTAKE REAR | MODEL V/W/X/Y This part replaces 13120-45C01.

13102-45C00

$36.41

42

O-RING (D:2.4,ID:39.7) | MODEL V This part replaces 09280-40003.

09280-40020

$2.91

42

O-RING (D:2.4,ID:39.7) | MODEL W/X/Y This part replaces 09280-40010.

09280-40020

$2.91

43

PIPE ASSY, INTAKE REAR | MODEL K1/K2/K3; Includes Item(s) 44

13102-45C00

$36.41

44

O-RING (D:2.4,ID:39.7) | MODEL K1/K2/K3 This part replaces 09280-40010.

09280-40020

$2.91

45

SCREW This part replaces 02122-06203.

02122-0620A

$1.49

46

CLAMP

09402-52501

$10.90

47

HOSE, CYLINDER HEAD JOINT

17854-38A00

$9.17

48

CLAMP

09402-28511

$6.88
