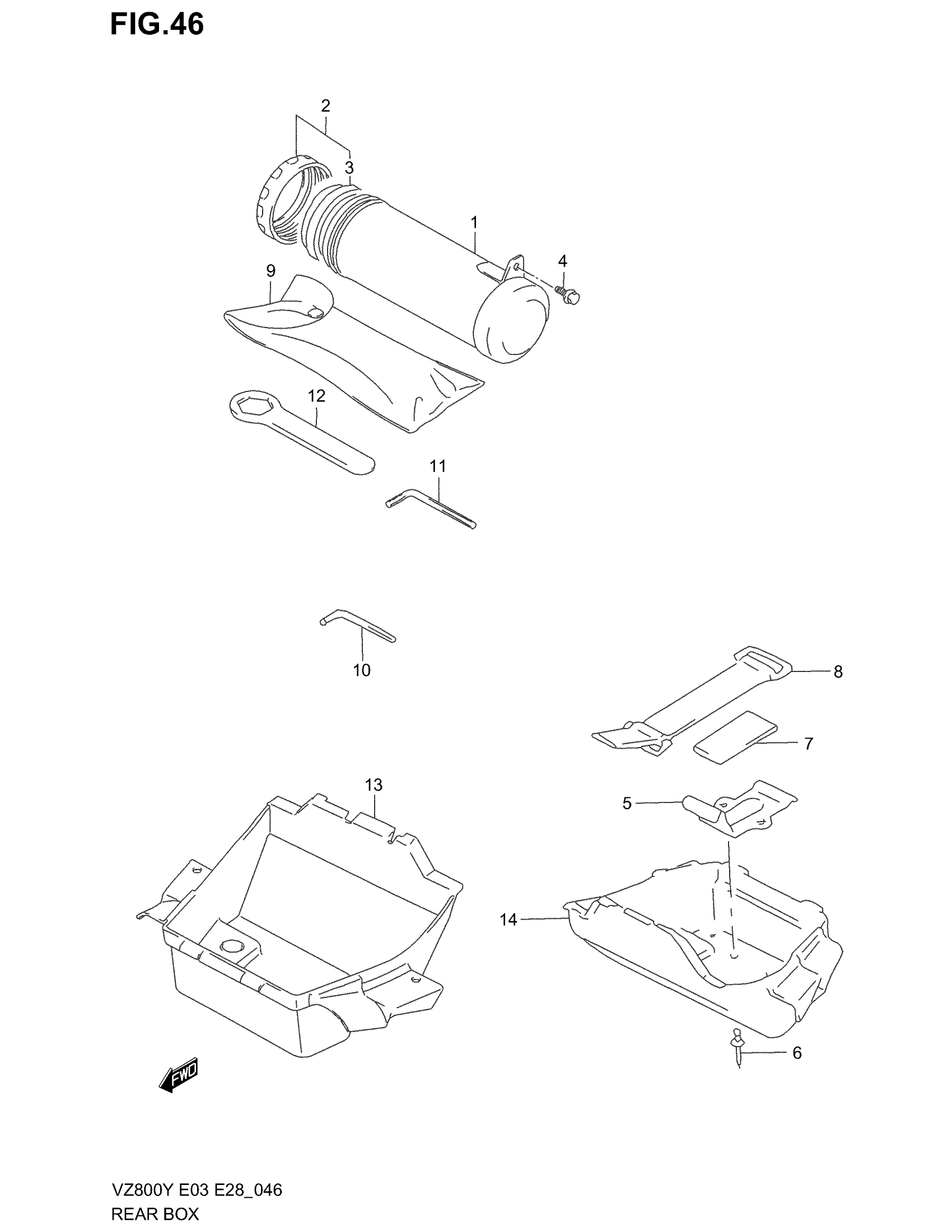

Suzuki VZ800 (2003) REAR BOX Diagram

#

Description
Price

1

HOLDER, TOOL | MODEL V/W

41550-48E00

Unavailable

2

CAP SET, TOOL HOLDER | MODEL V/W; Includes Item(s) 3

41500-48810

Unavailable

3

CUSHION, TOOL HOLDER | MODEL V/W

41437-48E00

$15.37

4

BOLT, CLAMP | MODEL V/W This part replaces 01550-06123.

01550-0612A

$1.97

5

HOLDER, TOOL | MODEL X/Y/K1/K2/K3

63466-48E00

Unavailable

6

RIVET | MODEL X/Y/K1/K2/K3

09229-04020

$2.66

7

CUSHION | MODEL X/Y/K1/K2/K3

33651-37000

$4.48

8

BAND,TOOL | MODEL X/Y This part replaces 47435-02F00.

47435-02F02

$8.33

8

BAND,TOOL | MODEL K1/K2/K3 This part replaces 47435-02F01.

47435-02F02

$8.33

9

TOOL ASSY This part replaces 09800-21012.

09800-21069

$40.17

10

SPANNER 4, HEXAGON

09816-00103

$6.17

11

SPANNER 6, HEXAGON

09816-00050

$5.03

12

SPANNER (22)

09817-00035

$5.67

13

BODY, LUGGAGE BOX | MODEL V This part replaces 92211-48E00.

92211-48E01

Unavailable

14

BODY, LUGGAGE BOX | MODEL W/X/Y/K1/K2/K3

92211-48E01

Unavailable
