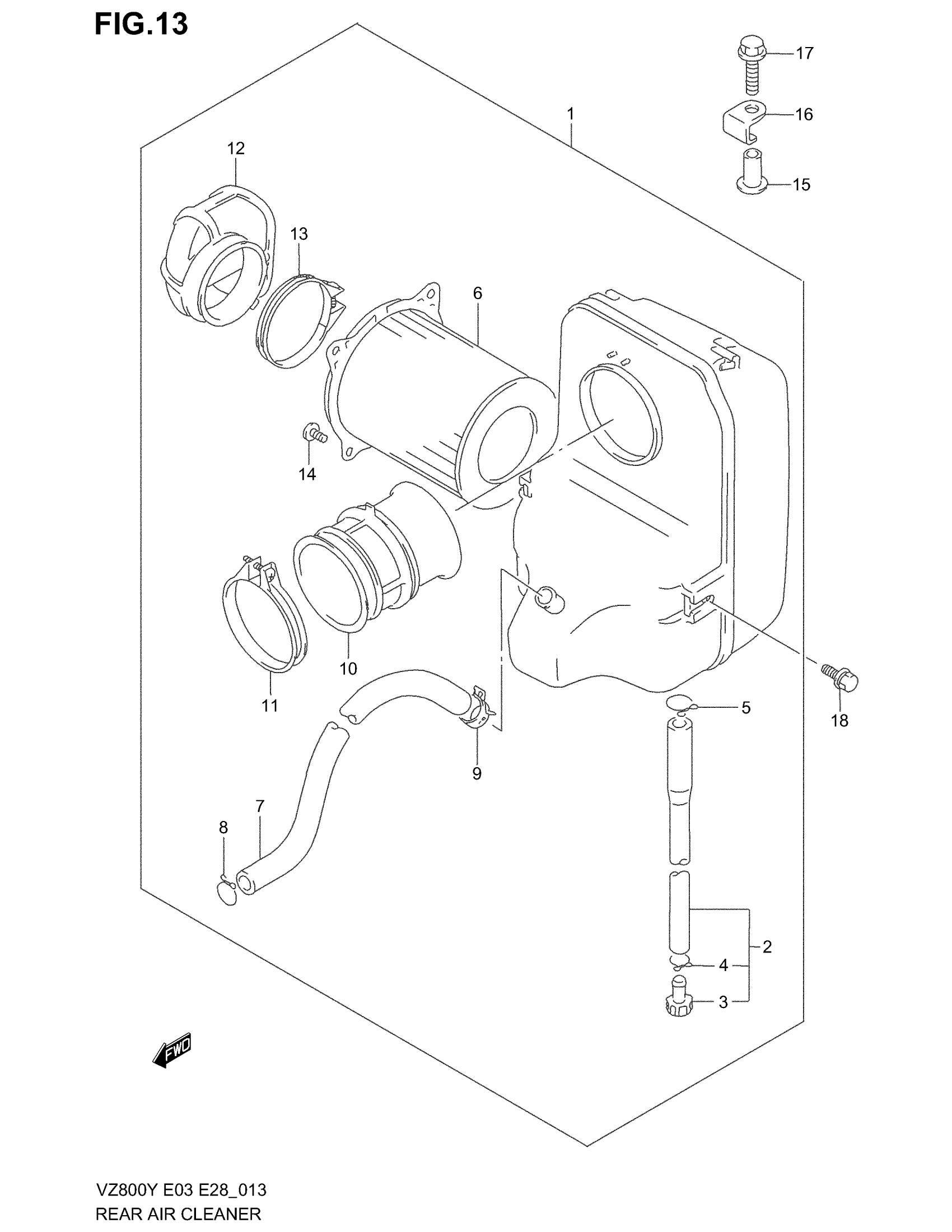

Suzuki VZ800 (2003) REAR AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR REAR | Includes Item(s) 2 - 14

13800-48E00

Unavailable

2

TUBE, DRAIN

13870-11308

Unavailable

3

STOPPER

13877-38A00

$5.98

4

CLIP

09401-11101

$2.36

5

CLIP

09401-13409

$2.12

6

FILTER ASSY

13780-48E00

$44.47

7

TUBE, BREATHER | %F.NO.V2100898 This part replaces 13851-48E00.

13851-48E01

Unavailable

7

TUBE, BREATHER | F.NO.V2100899%

13851-48E01

Unavailable

8

CLIP | MODEL V/W %F.NO.V2100898

09401-14301

$2.35

8

CLIP | MODEL V/W F.NO.V2100899%

09401-16301

Unavailable

8

CLIP | MODEL X/Y/K1/K2/K3

09401-15101

$2.26

9

CLIP | MODEL V/W %F.NO.V2100898 This part replaces 09401-14402.

09401-14404

$2.28

9

CLIP | MODEL V/W F.NO.V2100899% This part replaces 09401-16402.

09401-16403

$2.83

9

CLIP | MODEL X/Y/K1/K2/K3

09401-16403

$2.83

10

TUBE,OUTLET This part replaces 13881-48E00.

13881-48E01

$24.00

11

CLAMP

09402-58208

$5.36

12

TUBE,INLET This part replaces 13891-45C30.

13891-45C31

$26.85

13

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

14

SCREW

02142-05107

$1.49

15

SPACER

13912-48E00

Unavailable

16

PLATE

13913-48E00

Unavailable

17

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
