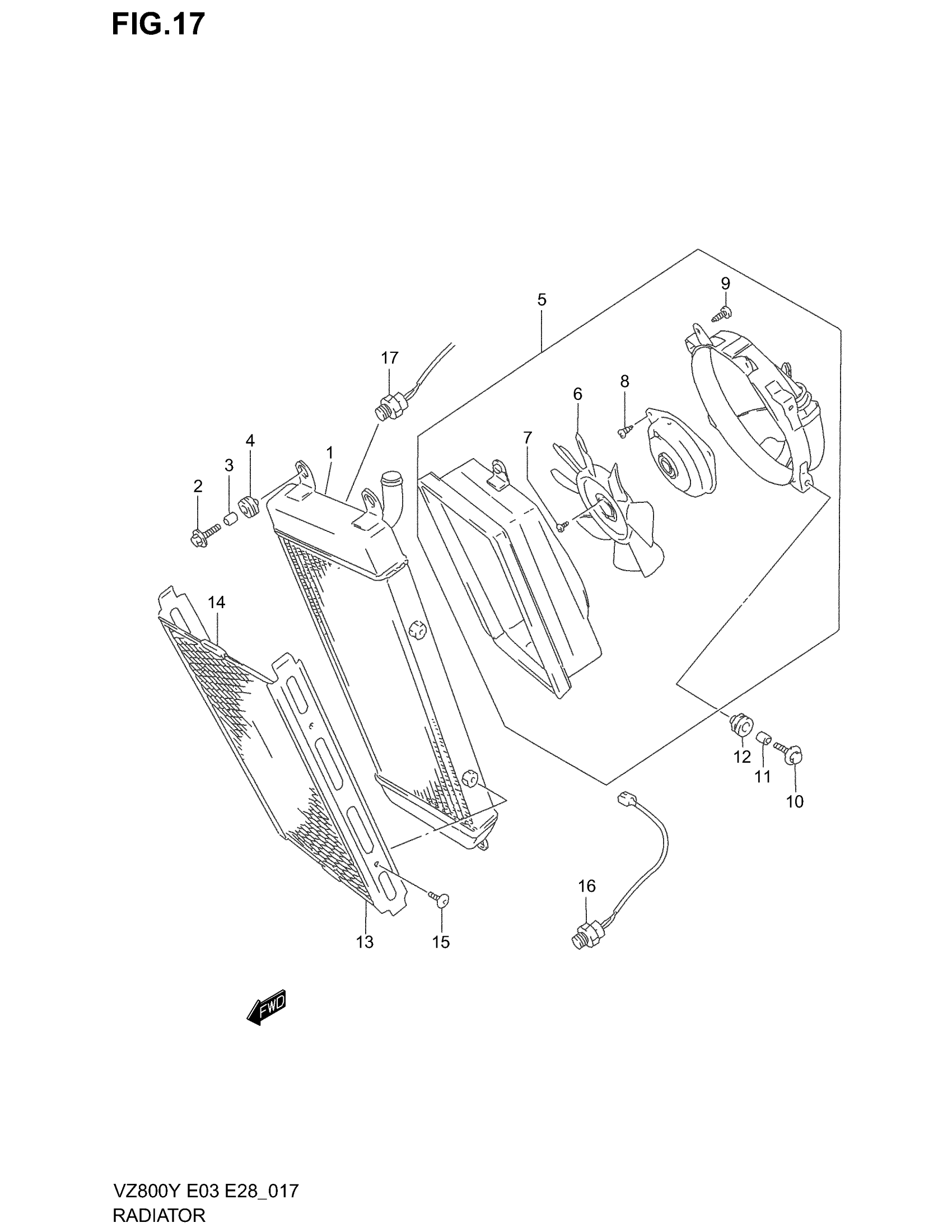

Suzuki VZ800 (2003) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-48E00

Unavailable

2

BOLT (6X20) | MODEL V/W/X This part replaces 09116-06143.

09116-06115

$1.97

2

BOLT | MODEL Y/K1

09116-06115

$1.97

2

BOLT | MODEL K2/K3

09116-06167

$2.19

3

SPACER

09180-06310

$1.91

4

CUSHION

09320-10501

$6.23

5

FAN ASSY | Includes Item(s) 6 - 9

17800-48E10

Unavailable

6

FAN

17820-45C00

Unavailable

7

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

8

SCREW This part replaces 02112-15083.

02142-0508A

$1.49

9

.SCREW This part replaces 02112-15123.

02142-0512A

$1.49

10

BOLT (6X20) | MODEL V/W/X This part replaces 09116-06143.

09116-06115

$1.97

10

BOLT | MODEL Y/K1

09116-06115

$1.97

10

BOLT | MODEL K2/K3

09116-06167

$2.19

11

SPACER

09180-06310

$1.91

12

CUSHION

09320-10015

$2.54

13

COVER, RADIATOR | Includes Item(s) 14

17760-48E10

Unavailable

14

PROTECTOR

16654-27E00

Unavailable

15

SCREW (6X10)

09139-06051

$2.48

16

SWITCH ASSY, RADIATOR FAN

17680-48E00

$119.72

17

SWITCH ASSY, WATER TEMPERATURE

34850-10D00

$118.08
