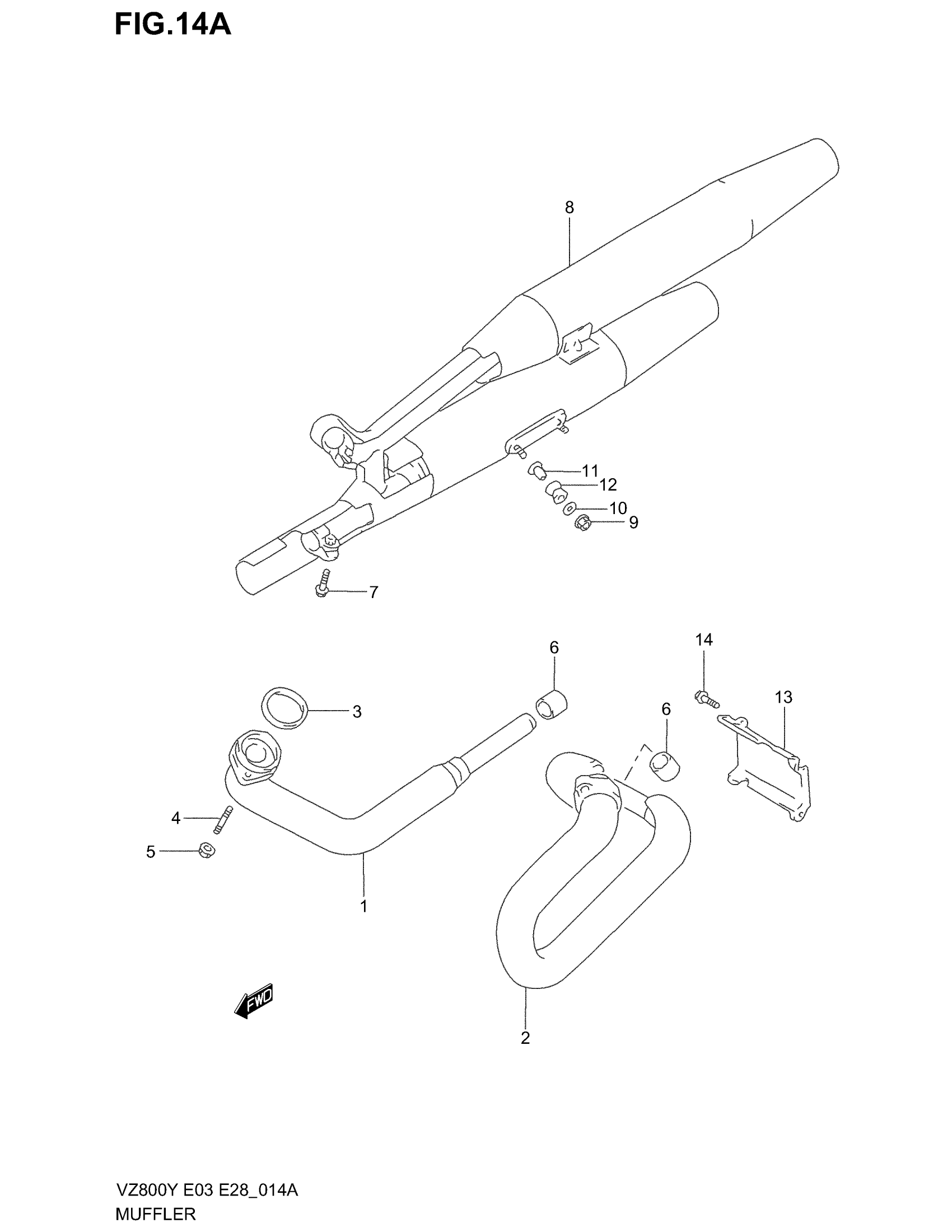

Suzuki VZ800 (2003) MUFFLER (MODEL X/Y/K1/K2/K3) Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-48E60

Unavailable

2

PIPE, EXHAUST LH

14160-48E60

Unavailable

3

GASKET, EXHAUST PIPE

14181-45C00

$7.38

4

STUD BOLT

09108-08142

$3.18

5

NUT

08313-10087

$2.28

6

CONNECTOR, MUFFLER JOINT

14771-14D00

$23.87

7

BOLT

09106-08137

$5.92

8

MUFFLER

14305-48E51-H01

Unavailable

9

NUT

08319-31087

$2.32

10

WASHER This part replaces 09160-08133.

09160-08151

$1.99

11

SPACER (8.6X12X17.5)

09180-08151

$5.18

12

CUSHION

09320-12043

$7.98

13

GUARD, HEAT

14120-48E51

Unavailable

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
