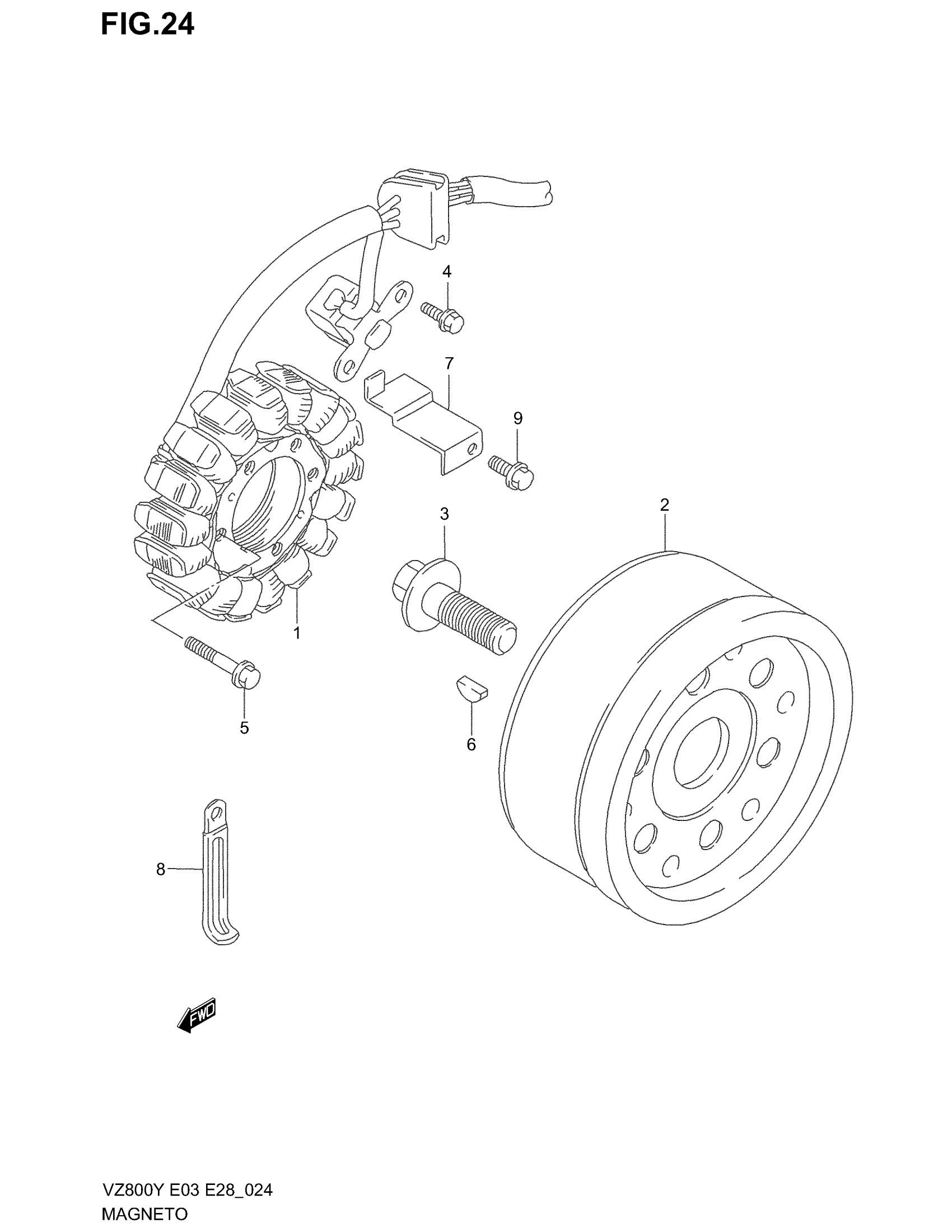

Suzuki VZ800 (2003) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-48E00

$515.48

2

ROTOR ASSY | MODEL V/W/X/Y This part replaces 32102-48E00.

32102-48E01

Unavailable

2

ROTOR ASSY | MODEL K1/K2/K3

32102-48E01

Unavailable

3

BOLT (14X43)

09103-14001

$11.82

4

BOLT This part replaces 01500-05103.

01500-0510B

$1.80

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

KEY

09420-04008

$3.42

7

CLAMP, LEAD WIRE

32371-45C00

$4.58

8

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

9

BOLT This part replaces 01547-06103.

01547-0610B

$2.45
