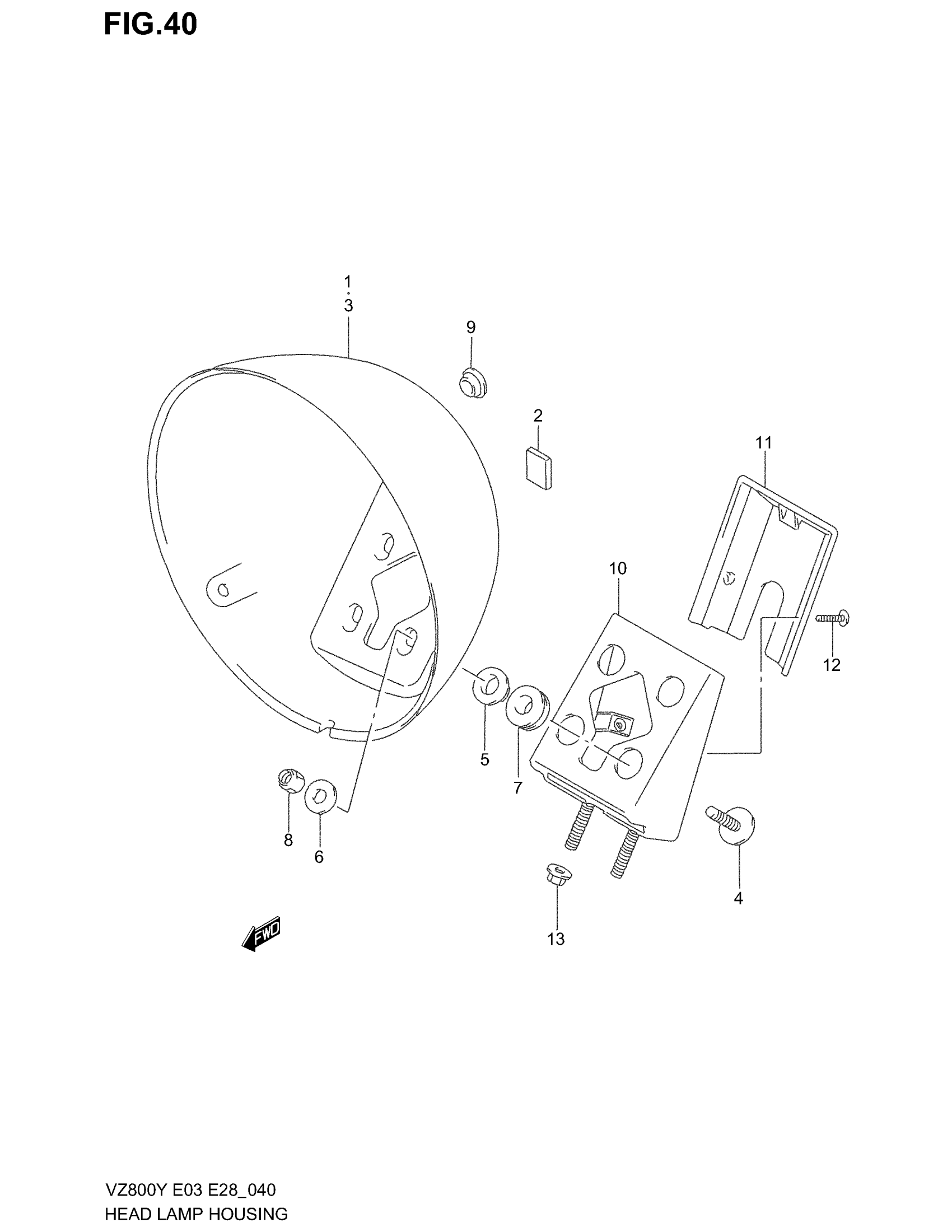

Suzuki VZ800 (2003) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP | MODEL V; Includes Item(s) 2 This part replaces 51810-48E10.

51811-48E02

$150.35

2

CUSHION | MODEL V

51812-48E00

Unavailable

3

HOUSING, HEADLAMP | MODEL W/X/Y/K1/K2/K3

51811-48E02

$150.35

4

BOLT (6X25)

09116-06025

$2.44

5

WASHER (6.3X17X6)

09169-06063

$3.37

6

WASHER (6.5X20X1.2) | MODEL V This part replaces 09160-06027.

09160-06077

$1.91

6

WASHER (6.5X20X1.2) | MODEL W/X/Y/K1/K2/K3

09160-06138

$1.91

7

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

8

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

9

CAP, HEADLAMP HOUSING | MODEL V

51816-48E00

Unavailable

9

CAP, HEADLAMP HOUSING | MODEL W/X/Y/K1/K2/K3

51816-48E01

Unavailable

10

BRACKET, HEADLAMP HOUSING | MODEL V This part replaces 51850-48E00.

51850-48E01

Unavailable

10

BRACKET, HEADLAMP HOUSING | MODEL W/X/Y/K1/K2/K3

51850-48E01

Unavailable

11

COVER, HEADLAMP HOUSING BRACKET

51815-48E00

Unavailable

12

SCREW

02142-04107

$1.49

13

NUT This part replaces 08319-31063.

08319-3106A

$2.03
