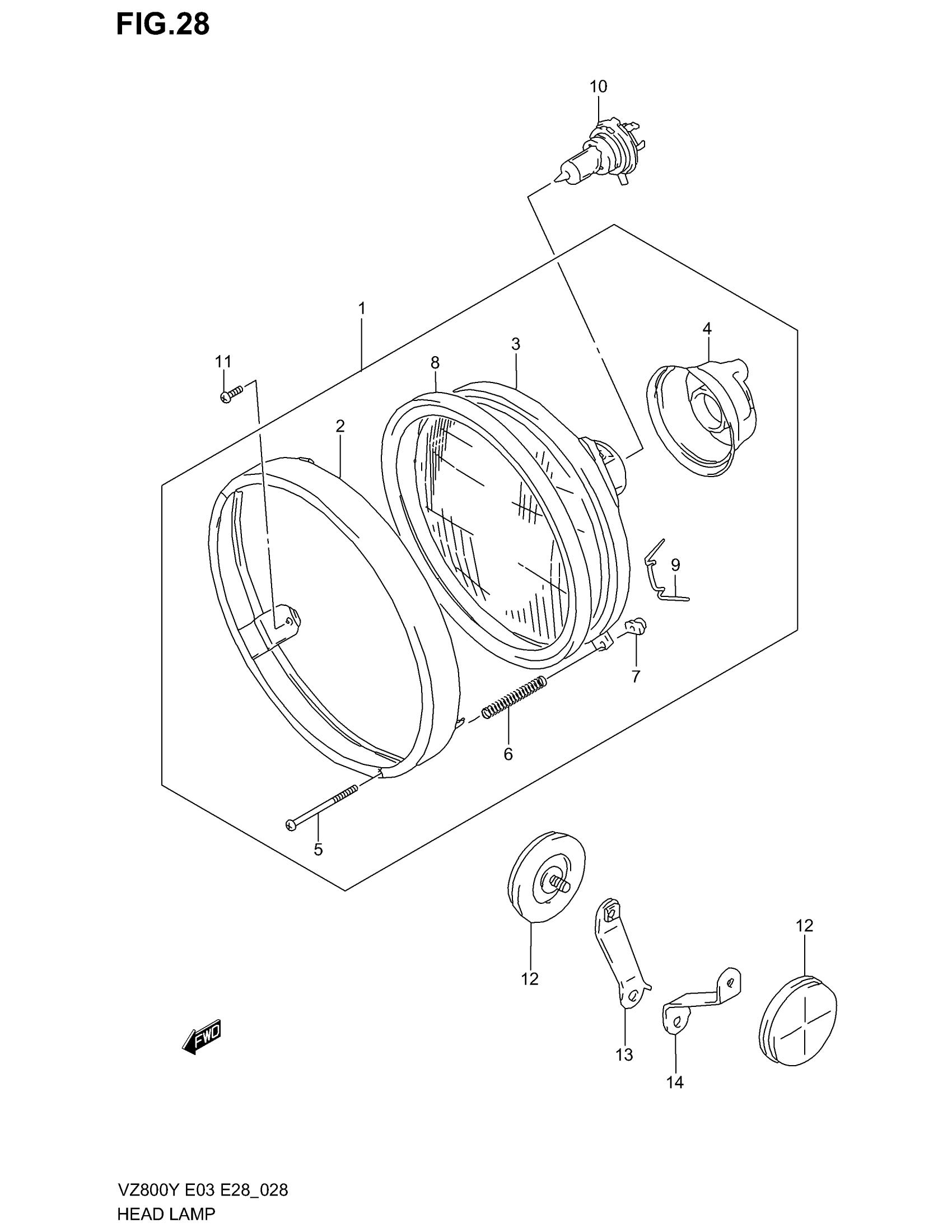

Suzuki VZ800 (2003) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-48E00-999

Unavailable

2

RIM

35111-48E00

$165.42

3

LAMP UNIT

35121-48E00

Unavailable

4

COVER, SOCKET

35173-20A01

$18.02

5

SCREW, ADJUSTING

35151-45900

$3.65

6

SPRING

35154-31900

$5.32

7

NUT

35152-15611

$3.25

8

RING

35127-10D20

$25.75

9

SPRING

35128-05510

$4.10

10

BULB (12V,60/55W)

09471-12060

$25.15

11

SCREW | MODEL V/W

09127-05013

$1.49

11

SCREW | MODEL X/Y/K1/K2/K3

09126-05003

$2.06

12

REFLEX-REFLECTOR ASSY, FR

35950-14A00

$16.94

13

BRACKET, RH

35956-48E00

Unavailable

14

BRACKET, LH

35957-48E00

Unavailable
