Description

Price

1

HANDLEBAR

56110-48E00

$494.79

2

CUSHION,HANDLEB This part replaces 56240-48E01.

56240-48E02

$11.87

3

NUT This part replaces 08319-31128.

08319-3112A

$3.76

4

BALANCER SET, HANDLEBAR | Includes Item(s) 5 - 9

56200-48831

$88.55

5

SCREW (6X110)

09127-06019

$3.55

6

EXPANDER, HANDLE BALANCER

56272-26D01

$7.25

7

SPACER, EXPANDER

56276-17D00

$5.07

8

WASHER (6.5X18X2) | MODEL V/W/X This part replaces 09160-06013.

09160-06121

$3.38

8

WASHER (6.5X18X2) | MODEL Y/K1/K2/K3

09160-06121

$3.38

9

NUT

09159-06024

$2.11

10

MIRROR ASSY,REA This part replaces 56500-38AD0.

56500-38AF0

$229.17

11

CAP This part replaces 56524-28600.

56524-28601

$4.63

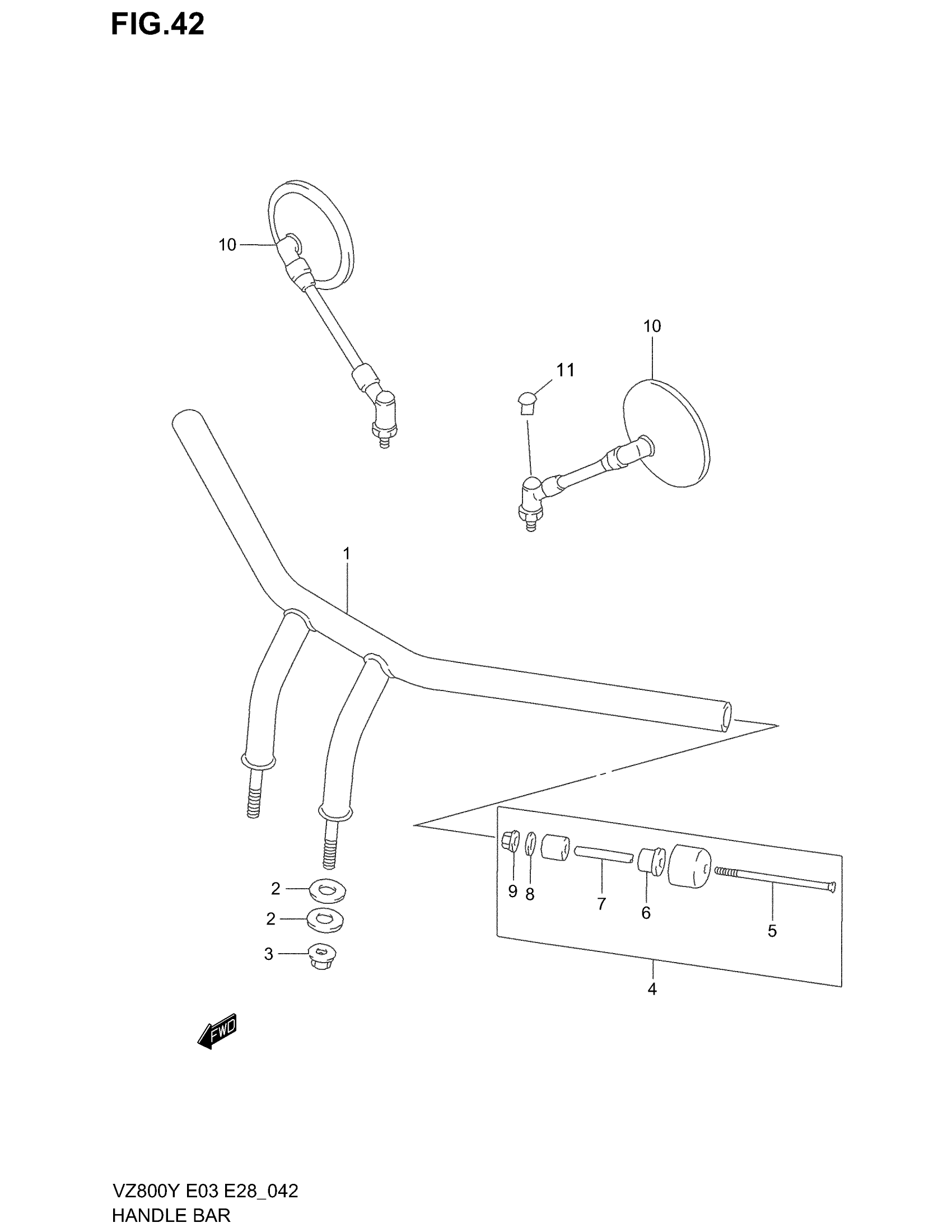

Suzuki VZ800 (2003) HANDLEBAR Diagram
