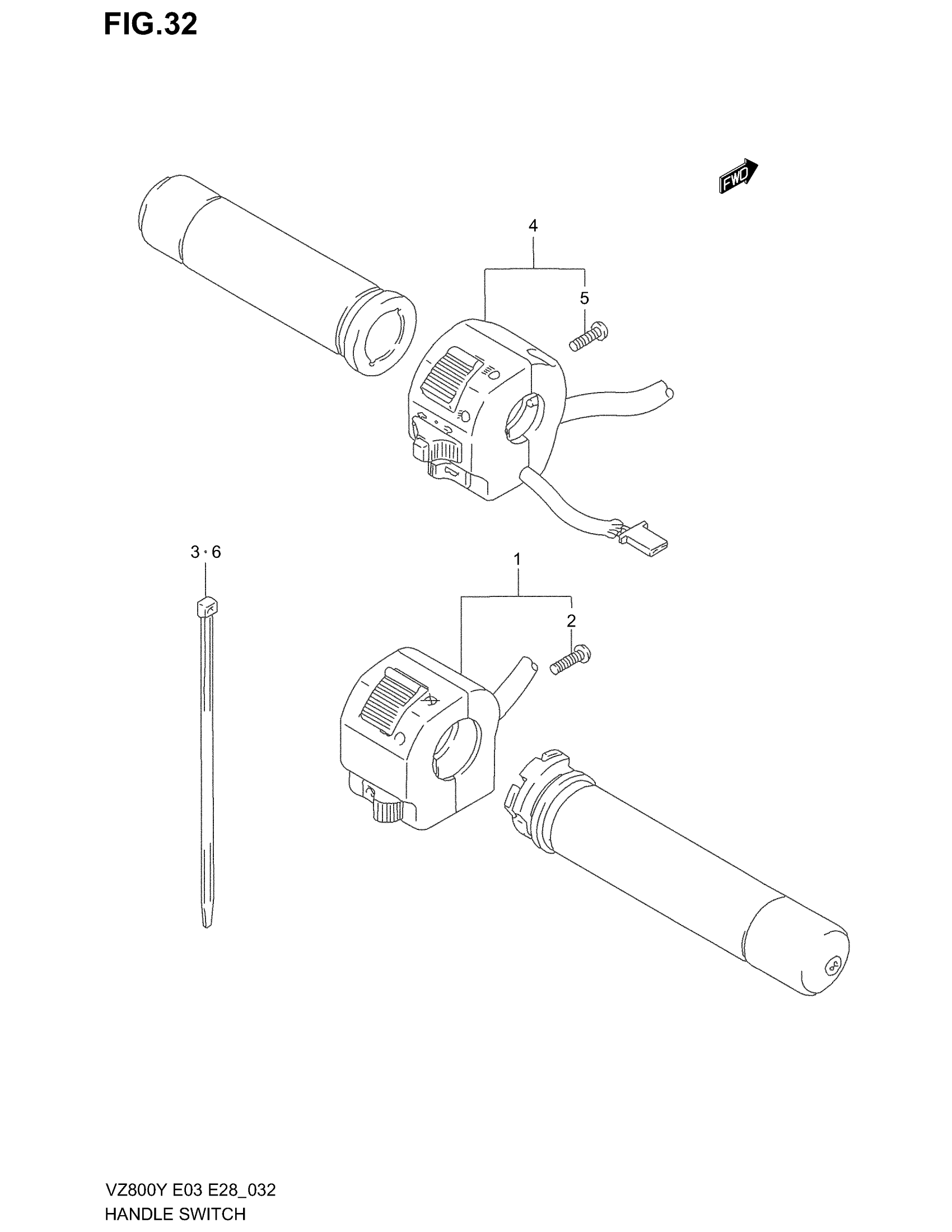

Suzuki VZ800 (2003) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-48E30

Unavailable

2

SCREW This part replaces 09125-05048.

09136-05041

$1.95

3

CLAMP (L:145)

09407-14407

$3.57

4

SWITCH ASSY, HANDLE LH | Includes Item(s) 5

37400-48E30

$337.02

5

SCREW This part replaces 09125-05048.

09136-05041

$1.95

6

CLAMP (L:145)

09407-14407

$3.57
